History of Changes
13 June 2013
Serverside update
What's new:
- NaviFirm database updated
- RM-872 Asha 206, added 352 VARIANTS (100% WORLD'S FIRST)
- RM-873 Asha 205, added 343 VARIANTS (100% WORLD'S FIRST)
- RM-902 Asha 501, added 256 VARIANTS (big part of them WORLD'S FIRST)
- RM-714 Asha 311, added 595 VARIATNS (big part of them WORLD'S FIRST)
- RM-761 Asha 200, added 689 VARIANTS (big part of them WORLD'S FIRST)
- RM-766 Asha 305, added 399 VARIANTS (part of them WORLD'S FIRST)
- RM-768 Asha 306, added 55 VARIANTS (part of them WORLD'S FIRST)
- RM-840 Asha 301, added 342 VARIANTS (VERY BIG part of them WORLD'S FIRST
- RM-825 Lumia 820, added 4 WORLD'S FIRST VARIANTS (not avaiable on net)
- RM-892 Lumia 925, added 17 WORLD'S FIRST VARIANTS (not avaiable on net)
- RM-882 Lumia 720, added 17 WORLD'S FIRST VARIANTS (not avaiable on net)
- RM-801 Lumia 800, added 276 VARIANTS (part of them not avaiable on net)
- RM-821 Lumia 920, added 264 VARIANTS
- RM-823 Lumia 900, added 1 VARIANT
- RM-849 Lumia 610 NFC, added 14 VARIANTS
- RM-835 Lumia 610, added 260 VARIANTS
June 10 2013
NaviFirm is back
What's new:
Cyclone update - NaviFirm is back !!
Download nokia flash files fast !!
yes... WORKING navifirm is now updated and built-in into CYCLONE.
No external file download, it will automatically find Landing Zone and download
After download it will AUTOMATICALLY appear in BB5/DCT4/WP7 tab
THIS UPDATE IS FREE AND WORKS WITH CYCLONE BOX, KEY, RELOADED, ETC...
10 November 2013
CycloneBox Iphone/Ipad free IMEI analyser
What's new:
Cyclone Box Installer v1.22 Released
- Added WORLD FIRST, USB ONLY, NO TP ROOTING FOR RM-801 LUMIA 800
- Added WORLD FIRST, USB ONLY, NO TP ROOTING FOR RM-802 LUMIA 800C
All NOKIA DLOAD OSBL loaders are supported (even latest one!)
Instructions:
- Run Cyclone, it will be auto-updated
- Update your Box Firmware to v2.20
- Go to WP7 -> Simlocks Tab
- Select Product and click ROOT!
10 Nov 2012
Cyclone Box Installer v1.22 Released
What's new:
- New CPU support added, XGold223 (Nokia Asha 308, Asha 309)
- Supported operations: Write Flash, Read/Write Certificates, Read RPL, Write RPL, etc...
- Firmware v02.11 Released
- Lumia SmartTP (R) introduced, for testers only (can detect short-circuits between Lumia eMMC Points (MISO, MOSI, CLK, CS), GND, or VCC, it shows also link quality). Use on _POWERED OFF_ PCB! When connecting power, it can show FALSE status! Very helpful during soldering time.
- New BB5 Loaders Added
- Lumia USB Flashing improved
- Latest Blackberry MEPs added
- Improved flashing speed and NPC certs reading time
- Improved CBUS protocol handling (sometimes it goes out of synchronization)
- Fixed BSI spurious glitch problem with ~2.x firmware
- Fixed DCT4 booting problems
- Improved FBUS Local Mode entry
- XGold213xx certificates Backup Added (NPC, HWC, CCC,...)
- XGold213xx Full Flash chip dump to BIN added
- XGold213xx Low-level PMM dump added (can dump PM from dead mobile)
- XGold213xx Low-Level FILESYSTEM dump from dead mobiles added. This dumps full FAT16 user data partition to BIN file for further actions (analysis, recovery, forensics, ...)
- Minor changes and bugfixes
Notes about XGold 223 flashing: Switching to RAW mode is not supported (i.e. flashing from local/test mode, ROM will respond with empty public id (000000...) - very same story as with rapido). Battery reset needed, software will prompt you, but not always. Keep it noticed.
Notes about XGold 223 RPL: Read RPL is not full RPL backup (missing crypted PM308 data). This phone is very TexasInstruments-Nokia like, but not really. Once loaders with asymmetric key hack is not ready, you SHOULD NOT full erase your phone any way.
Autoupdate module SHOULD work, if not here is link: http://www.karwos.hk/CycloneBoxInstaller.exe
Firmware v02.11 is Mandatory
|
 |
New
Added WORLD FIRST, USB ONLY, NO TP ROOTING FOR RM-801 LUMIA 800 and RM-802 LUMIA 800C
All NOKIA DLOAD OSBL loaders are supported (even latest one!)
|
Description
- Cyclone Key Reloaded is newest and latest Box from KarwowGSM
- Based on well-tested AVR32 technology in Cyclone Classic and cyclone Box Reloaded, powered by 66MHz 32bit RISC CPU.
- Latest edition doesn't have build in SIM card like previous box as also doesn't have any credits.
- All operations are standalone.
- This version doesn't require also any special adapter - you can connect all 7 pin cables directly to it (jaf/ufs/universalbox cables)
- Fully working over USB 2.0 and 3.0 gives you possibility to work with latest phones.
- Unlock Nokia DCT4+ / BB5 SL1 / BB5 SL2 FREE and unlimited
|
Cykey Features
- Flashing MCU, PPM, CNT area (software updates, software repair, change language)
- Standalone simlock unlock by codes generation
- Standalone simlock repair by RPL calculation
- Standalone simlock unlock/relock/autolock by RPL calculation
- Simlock unlock by reading LBF data
- Standalone calculation of Level1-Level7 codes from calculated COD files
|

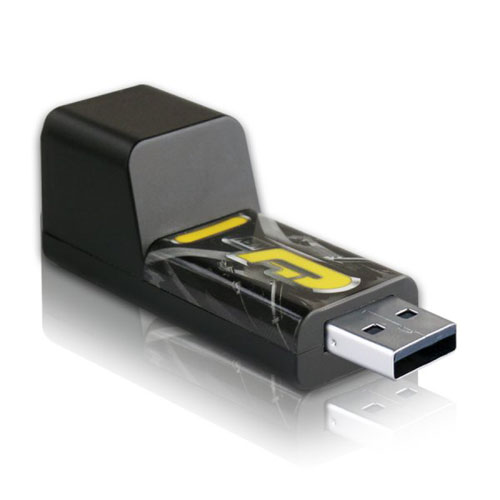

Cyclone Key (Cykey) Characteristics
- World FIRST USB DONGLE WITH Nokia FLASHBUS/FBUS CONNECTOR
- World FIRST USB DONGLE WITH Built-IN UNIBOX (COM EMULATOR)
- USB Bus powered only, 5V @ 500mA (2.5W)
- USB 1.0, 1.1, 2.0 and 3.0 Compatible
- Supported Operating Systems: All NT based Windows OS (including x86 and x64 platforms - drivers signed for 64bit) - this includes Windows NT, Windows Xp, Windows Vista, Windows 7, and upcoming ones
- Lightweight construction
- Nokia Flashbus / FBUS RJ48 connector with TX and RX signalling LED. Pinout is UFS/JAF compatible (no need adapters anymore, plug it straight).
- Based on well-tested AVR32 technology in Cyclone Classic, powered by 66MHz 32bit RISC CPU
- USB signalling led (USB transaction signalling)
- VBAT singalling led (power-up status of Flashbus port)
- Works also as USB dongle for USB-only operations, if USB connectivity with Nokia phones is needed
- Operates 100% standalone (after initial registration)
- Weight ~25g
|
Nokia Tool Features
Nokia BB5 RAP3Gv2, RAP3Gv3, RAP3Gv4, RAPIDOv11, RAPUv11, RAPUv21, Broadcom 21351
- Supports BB5 RAP3Gv2, RAP3Gv3, RAP3Gv4, RAPIDOv11, RAPUv11, RAPUv21, Broadcom 21351 Based Nokia Phones
- Supported Interfaces: USB and FBUS
- Flashing MCU, PPM, CNT area (software updates, software repair, language change)
- All Hashes supported
|
Nokia Tool Features
Nokia SL1 based
- STANDALONE Simlock Unlock by Codes Generation (only by FBUS connection)
- STANDALONE Simlock Repair by RPL calculation (FBUS only)
- STANDALONE Simlock Unlock/Relock/Autolock by RPL Calculation (FBUS only)
- All hashes supported
Nokia 6630, 6680, 6681, N70, N90, 3109c, 3110c, 3250, 3500c, 3500cb, 5200, 5200b, 5300, 5300b, 5500, 6085, 6086, 6086b, 6125, 6126, 6133, 6131, 6131 NFC, 6136, 6151, 6233, 6234, 6280, 6300, 6300b, 7370, 7373, 7390, 8600, E50, E50, E50, E61, E61i, E62, E65, E90, N73-1, N73-5, N75, N77, N80-1, N80-3, N92, N95
|
Nokia Tool Features
Nokia SL2 based
- STANDALONE Simlock Unlock by Codes Generation (USB/FBUS)
- STANDALONE Simlock Repair by RPL calculation (USB/FBUS)
- STANDALONE Simlock Unlock/Relock/Autolock by RPL Calculation (USB/FBUS)
- All hashes supported
RAP3Gv3 via FBUS
Nokia 3120c, 3555, 3555b, 5310, 5310b, 5610, 5610d, 6267, 6263, 6300i, 6301, 6500s, 6500c, 6555, 7500, 7900, 8800 Arte
RAPIDO via USB and FBUS
Nokia 5320, 5800, 6110, 6120, 6121, 6124, 6210, 6220c, 6290, 6650, E51, E63, E66, E71, N78, N81, N81 8gb, N76, N79, N85, N82, N95 8gb, N96, E75
RAPS_V3.03-PA_SL2 CPU via FBUS
Nokia 3600 slide, 5220 XpressMusic, 7210 Supernova, 7310 Supernova, 7610 Supernova, 7510a, 5130C
RAP3GS_V3.02-PA_SL2 CPU via FBUS
Nokia 6600 fold, 6600 slide
|
Nokia Tool Features
Nokia SL3 based
- Simlock Unlock by Reading LBF Data (USB and FBUS supported)
- Automatic Detection of 20-digits LBF variants
- Automatic Detection of Locked Profile Bits (Telcel Mexico,etc)
- Standalone Calculation of Level1-Level7 codes from calculated COD files
- Factory Relock
- All Hashes supported
2690 – RM-635, 2700c, 2700c-2 – RM-561, 2730c-1, 2730c – RM-578, 2730c-1b – RM-579, 3600s – RM-352, 3720c – RM-518, 3720c-2 – RM-518, 5130, 5130c-2 – RM-495, 5130c-2 – RM-496, 5228, 5230, 5232, 5233 – RM-588/593/594/625/629, 5310 Xpress Music – RM-303, 5530 – RM-504, 5630 Xpress Music – RM-431, 5630d-1 – RM-431, 5730s-1 Xpress Music – RM-465, 5800d – RM-356/428, 6120c – RM-243, 6303c – RM-443, 6500c – RM-265, 6500s-1 – RM-240, 6700c-1, 6700c – RM-470, 6700s – RM-576, 6710s navigator – RM-491, 6720c – RM-424, 6730c-1 – RM-547, 6750 Mural – RM-381, 6760s – RM-573, 6790s – RM-492/599, 7210c, 7212c – RM-436, C3-01 – RM-640, C5-00 – RM-645, C5-03 – RM-697, C6-00 – RM-612/624, C6-01 – RM-601/718, C7-00 – RM-675, E5-00 – RM-632, E52-1 – RM-469, E55-1 – RM-482, E63 – RM-437/450, E66 – RM-343/345/420/494, E71 – RM-346/347/357/407/493, E72-1 – RM-530, E72-2 – RM-529, E73 – RM-658, N8-00 – RM-596, N86 – RM-484/485/486, N97 – RM-505/506/507, N97-4 mini – RM-555, N97-5 – RM-553, X3-02 – RM-639, X5-01 – RM-627, X6-00 – RM-551/559, X7 RM-707, C3-01.5 (RM-776), Asha 201 (RM-799), Asha 201 (RM-800), Asha 300 (RM-781), Asha 303 (RM-763), 500 (RM-750), 600 (RM-701), 700 (RM-670), 701 (RM-774), 603 (RM-779), C3-00 (RM-614), X2-00 (RM-618), X2-01 (RM-709), X2-03 (RM-709), X2-01.1 (RM-717), 2710c (RM-586), 7020 (RM-497)
- Sending NCK codes through the FBUS/USB
- IMEI repair by ASK-RPL calculation
- Reset FBUS/NCK counters
- RPL Backup, backed RPL file is 100% original with Nokia One (including all sections, including WMDR and Superdongle Keys, after writing back phone still can authorize with original sx4 card)
- Downgrade Capability
- Reading ASK Files
- Fast Downgrade Repair
- SX4 Authorization using Cyclone Server (st_security_test repair)
- Standalone SX4 Auhtorization using SX4 Emulator in box
- Repair "Contact Retailer" by standalone recalculating Superdongle Keys
- Certificates Operation: Read/Erase/Write
- Auto-recovery IMEI, if backup found
- RPL Write (IMEI repair, Simlock Repair, etc)
- Full Flash Chip Erase
- Security Block Analyzation Tool
- MCU&DSP Timestamps Read Tool
- Read Security Code (incl. encrypted variants - only device in the world)
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Read Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
|
Nokia Tool Features
Nokia BB5 XGold2xx Based Phones
- Supported Interfaces: USB
- Products: C1-01, C1-02, C2-00, C2-02, C2-03, C2-06, C2-07, C2-08
- Flashing MCU,PPM,CNT area (software updates, software repair, language change)
- Simlock Unlock by Reading LBF Data
- Automatic Detection of 20-digits LBF variants
- Automatic Detection of Locked Profile Bits (Telcel Mexico,etc)
- Standalone Calculation of Level1-Level7 codes from calculated COD files
- Sending NCK codes through the FBUS/USB
- Reset FBUS/NCK counters
- Read Security Code (incl. encrypted variants - only device in the world)
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Read Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
|
Nokia Tool Features
Nokia DCT4 XGold1xx Based Phones
- Supported Interfaces: FBUS
- Products: 1280, 1616, 1800, C1-00, X1-00, X1-01, 101, 100
- Flashing MCU,PPM,CNT area (software updates, software repair, language change)
- Simlock Unlock by Reading LBF Data
- Automatic Detection of 20-digits LBF variants
- Automatic Detection of Locked Profile Bits (Telcel Mexico,etc)
- Standalone Calculation of Level1-Level7 codes from calculated COD files
- Binary PMM dump
- PM recovery for dead phones
- Read Deleted PM Keys
- RPL backup (exclusive - RPL including Simlock and IMEI block)
- RPL write (exclusive)
- Reset FBUS/NCK counters by read + write RPL (world's exclusive)
- Read Security Code (incl. encrypted variants - only device in the world)
- Backup/Restore IMEI block
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Read Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
- IMEI Backup before flash
|
Nokia Tool Features
Nokia DCT4 XGold1xx Based Phones
- Supported Interfaces: FBUS
- Products: 1280, 1616, 1800, C1-00, X1-00, X1-01, 101, 100
- Flashing MCU,PPM,CNT area (software updates, software repair, language change)
- Simlock Unlock by Reading LBF Data
- Automatic Detection of 20-digits LBF variants
- Automatic Detection of Locked Profile Bits (Telcel Mexico,etc)
- Standalone Calculation of Level1-Level7 codes from calculated COD files
- Binary PMM dump
- PM recovery for dead phones
- Read Deleted PM Keys
- RPL backup (exclusive - RPL including Simlock and IMEI block)
- RPL write (exclusive)
- Reset FBUS/NCK counters by read + write RPL (world's exclusive)
- Read Security Code (incl. encrypted variants - only device in the world)
- Backup/Restore IMEI block
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
- Backup before flash
|
Nokia Tool Features
Nokia DCT4 based
- Read Security Code (incl. encrypted variants - only device in the world)
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- IMEI Repair ?????????????4 by RPL generation, support STANDALONE RPL generation (both Flash and Uem areas) for Asic 2,5,6,7,11 based products
- RPL Product Data Generation supported for Nokia 2125i, 2865i, 6275i, 6610i, 7250i
- Read UEM IMEI
- RPL Write (repair IMEI)
- One-click Read UEM IMEI and Repair ???????????4
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Read Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
- IMEI Backup before flash
- FTD (Netmonitor) Activation
- WD2 Format User Area
- Supported Interfaces: FBUS
- Flashing MCU,PPM,CNT area (software updates, software repair, language change)
- ADSP area flashing support for N-Gage/3300 phones
- Direct STANDALONE Simlock Unlock, Relock, Autolock for old Asic 2,5,6,7 based products:
1100, 1100, 1101, 1108, 1110, 1110, 1110i, 1112, 1112, 1112i, 12i GSM Module, Nokia 1600, 1600, 2112, 2125i,
2126i, 2128i, 2255, 2300, 2300, 2355, 2600, 2650, 2651, 2652, 2760 Americas, Nokia 2760 Europe/Asia, Nokia 30 Terminal, Nokia 3100, 3105, 3108, 3120, 3120, 3125, 3128, 3129, 3152, 3155, 3155i, 3200, 3205, 3205i, 3220, 3220, 3230 (WD2), Nokia 3300, 3300, 3320, 3321, 3360, 3361, 3510, 3510i, 3520, 3530, 3560, 3570, 3585, 3586, 3586i, 3587, 3587i, 3588i, 3589i, 3590, 3595, 3595i, 3600 (WD2), Nokia 3620 (WD2), Nokia 3650 (WD2), Nokia 3660 (WD2), Nokia 5070, 5070, 5100, 5140, 5140, 5140i, 6010, 6012, 6015, 6015i, 6016i, 6019i, 6020, 6020, 6021, 6030, 6030, 6050, 6060, 6060, 6061, 6070, 6070, 6080, 6080, 610 Car Kit, Nokia 6100, 6101, 6101, 6101, 6102, 6102, 6102, 6102, 6103, 6103, 6108, 6111, 6112, 6152, 6155, 6155i, 616 Car Kit, Nokia 6170 (TIKU), Nokia 6170 (TIKU), Nokia 6200, 6220, 6225, 6225i, 6230 (TIKU), Nokia 6230 (TIKU), Nokia 6230i (TIKU), Nokia 6235 (TIKU),Nokia 6235i (TIKU), Nokia 6236i, 6255 (TIKU), Nokia 6255i (TIKU),Nokia 6256, 6256i, 6260 (WD2), Nokia 6260 (WD2), Nokia 6310, 6310i, 6340, 6340i, 6360, 6370, 6385, 6500, 6510, 6560, 6585, 6590, 6590i, 6600 (WD2), Nokia 6610, 6610i, 6620 (APE), Nokia 6650, 6651, 6670 (WD2), Nokia 6670 (WD2), Nokia 6800, 6800, 6810, 6820, 6820, 6820i, 6822, 6822, 7200, 7210, 7250, 7250i, 7260, 7270 (TIKU),Nokia 7270 (TIKU), Nokia 7280 (TIKU), Nokia 7280 (TIKU), Nokia 7360, 7380, 7600 (TIKU),Nokia 7610 (WD2), Nokia 7610 (WD2), Nokia 7620, 7650 (WD2), Nokia 7700 (APE), Nokia 7710 (APE), Nokia 810 Car Kit, Nokia 8310, 8390, 8587, 8800 (TIKU), Nokia 8800 Sirocco Edition (TIKU), Nokia 8801 (TIKU), Nokia 8910, 8910i, D211, N-Gage (WD2), Nokia N-Gage QD (WD2)
- Direct STANDALONE Simlock Unlock, Relock, Autolock for Asic11 based phones (RSA method)
1110i, 1112b, 1200, 1202, 1208, 1208b, 1209, 1600b, 1661, 1662, 1650, 1680 Classic, 1680 Classic-2b, 2220 Slide, 2310, 2320 Classic, 2320 Classic-2b, 2323 Classic, 2330 Classic, 2600, 2600a, 2610, 2610b, 2626, 2630, 2630b, 2660, 2660b, 2680 Slide, 2720 Fold, 2760, 2760b, 2760h, 5000, 5030 XM, 6030b, 7070 Prism, 7100 Supernova
Read Security Code (incl. encrypted variants - only device in the world)
- Reset Security code without data loss (incl. encrypted variants - only device in the world)
- IMEI Repair ?????????????4 by RPL generation, support STANDALONE RPL generation (both Flash and Uem areas) for Asic2,5,6,7,11 based products
- RPL Product Data Generation supported for 2125i,2865i,6275i,6610i,7250i
- Read UEM IMEI
- RPL Write (repair IMEI)
- One-click Read UEM IMEI and Repair ???????????4
- Read Basic and Advanced Phone Information
- Read Permanent Memory Area (PM)
- Write Permanent Memory Area (PM)
- Read Product Profile Area
- Write Product Profile Area
- Bluetooth Repair
- DCC Camera (Camera on Standby) one-click analyze and repair
- Factory Defaults setting
- Product Code Read
- Product Code Write
- PSN Read
- PSN Write
- HWID Read
- HWID Write
- Selftests
- Vibra tests
- Backlight tests
- Automatic variant selection
- IMEI Backup before flash
- FTD (Netmonitor) Activation
- WD2 Format User Area
|
Blackberry Tool Features
- Works STANDALONE, no need internet access
- Supported more than 260 MEPs, including latest 2012 ones
- MEP2 code generation (simlock unlock)
- MEP4 code generation
- MEP1 code generation
- MEP3 code generation
- MEP5 code generation
|
Cykey supports following Nokia phones:
Nokia
|
Nokia Lumia 1020 | Nokia EOS
|
Nokia
Broadcomm |
2710n (RM-586) | 7020a (RM-497) | C3-00 (aRM-614) | X2-00 (RM-618) | X2-01 (RM-709) | X2-01.1 (RM-717) | X2-03 (RM-709)
|
Nokia
Rapu.V2 |
302 (RM-813) | 500 (RM-750) | 600 (RM-701) | 700 (RM-670) | 701 (RM-774) | 702T (RM-730) | C3-01.5 (RM-776)
|
Nokia
RapuYama |
5630 (RM-431) | 5730 Xpress Music (RM-465) | 6350 (RM-455) | 6700 Classic (RM-470) | 6700s Slide (RM-576) | 6710s Navigator (RM-491) | 6720c (RM-424/RM-566) | 6730c-1 (RM-547) | 6750 Mural (RM-381) | C3-01 (RM-640) | C5-00 (RM-645/RM-688) | C5-03 (RM-697) | C6-01 (RM-601) | C7-00 (RM-675) | E52 (RM-469) | E55 (RM-482) | E5-00 (RM-632) | E6-00 (RM-609) | E7-00 (RM-626) | E72 (RM-529/RM-530) | N8 (RM-596) | X3-02 (RM-639) | X5-01 (RM-627) | 808 (RM-807)
|
Nokia
XGold213 |
Asha 200 RM-761 | Asha 200 RM-762 | Asha 201 (RM-799) | C1-01 | C1-02 | C2-00 | C2-02 | C2-03 | C2-05 | C2-06 | C2-07 | C2-08 | X2-02 | X2-05
|
Nokia
BB5+ (SL2) |
3120C | 3555 | 3555b | 5310 | 5310b | 5610 | 5610d | 6263 | 6267 | 6300c | 6301 | 6500S | 6500C | 6555 | 7500 | 7900 | 8800
|
Nokia
XGold113 |
X1-00 | X1-01 | 100 | 101 | 102
|
Nokia
BB5: |
Nokia 1616 | 3109 Classic | 3109c | 3109cb | 3110 Classic | 3120 Classic | 3120c | 3120c-1 | 3250 | 3500 Classic | 3500c | 3500cb | 3555 | 3555c | 3600 Slide | 3600s | 3610 Fold | 3610a | 3610d | 3610d-2
Nokia 5200 XpressMusic | 5200 | 5200b | 5220 XpressMusic | 5220b | 5300 XpressMusic | 5300b | 5310 XpressMusic | 5310b | 5320 XpressMusic | 5320d | 5320d-1 | 5500 | 5500 Sport | 5500d | 5610 XpressMusic | 5610d-1 | 5610d-2b | 5610d-5 | 5700 XpressMusic | 5700b | 5710 XpressMusic | 5800 | 5800d | 5800d-1
Nokia 6085 | 6086 | 6110 Navigator (6110n) | 6110n-5 | 6120 Classic | 6120c-1 | 6121 Classic | 6121c-1 | 6120c-5 | 6122c | 6124 Vodafone | 6124c | 6124c-1 | 6125 | 6126 | 6131 | 6131 NFC | 6133 | 6133b | 6135 | 6136 | 6136b | 6151 | 6209b | 6210 Navigator | 6210s | 6210s-1 | 6210s-1b | 6210s-1c | 6210s-5 | 6212 Classic | 6212c | 6220 Classic | 6220c-1 | 6220c-5 | 6233 | 6234 | 6263 | 6267 | 6270 | 6280 | 6282 | 6288 | 6290 | 6300 | 6300i | 6300b | 6301 | 6301b | 6350 | 6500 Classic | 6500 Slide | 6500c | 6500c-5 | 6500s-1 | 6500s-5 | 6555 | 6555 Classic | 6555c | 6556 Classic | 6600 Fold (6600f) | 6600 Slide (6600s) | 6630 | 6631 (NM850iG) | 6650 T-Mobile | 6650d | 6650d-1c | 6680 | 6681 | 6682
Nokia 7210c | 7310 Supernova | 7310c | 7310cb | 7370 | 7373 | 7390 | 7500 Prism | 7510a | 7510a-b | 7500b | 7510 Supernova | 7610 Supernova | 7610s | 7610sb | 7900 Prism
Nokia 8600 Luna | 8600d | 8800 Arte | 8800e | 8800e-1 | 8800e-5
Nokia E50 | E50-1 | E50-3 | E51 | E51-1 | E51-2 | E60 | E60-1 | E61 | E61i | E61i-1 | E61i-5 | E62 | E63 | E63-1 | E63-2 | E65 | E65-1 | E66 | E66-1 | E66-2 | E66-3 | E66-5 | E70 | E70-1 | E70-2 | E71 | E71-1 | E71-2 | E71-3 | E71-5 | E90 Communicator | E90-1 | E90-5
Nokia N70 | N70-5 | N71 | N72 | N72-5 | N73 | N73-5 | N75 | N75-1 | N75-3 | N76 | N76-1 | N76-5 | N77 | N77-1 | N77-5 | N78 | N78-1 | N78-5 | N79 | N79-1 | N79-3 | N79-5 | N80 | N80-1 | N80-2 | N80-3 | N81 8GB | N81-1 | N81-3 | N81-5 | N81-6 | N82 | N82-1 | N82-2 | N85 | N85-1 | N85-3 | N85-5 | N90 | N90-1 | N91 | N91-1 | N91-2 | N91-5 | N92 | N92-1 | N92-2 | N93 | N93-1 | N93-5 | N93i | N93i-1 | N93i-5 | N95 | N95-1 | N95-2 | N95-3 | N95-4 | N95-5 | N95-6 | N95 8GB | N95 NAM | N95 8GB NAM | N96 | N96-1 | N96-5
|
Nokia
PA_SL2 RAPIDO |
Nokia E71 (RM-346) | E71-2 (RM-493) | E75 (RM-412) | E51 (RM-244) | E51-2 (RM-426) | E66 (RM-343) | E66-2 (RM-494) | E90 (RA-6)
Nokia N76 (RM-135) | N76 (RM-149) | N78 (RM-235) | N78-2 (RM-236) | N79 (RM-348) | N81 (RM-256) | N81-3 (RM-223) | N81-8GB (RM-179) | N82 (RM-313) | N82-2 (RM-314) | RM85 (RM-333) | N95 (RM-159) | N95 (RM-245) | N95 (RM-160) | N95-8GB (RM-320) | N95-8GB (RM-321) | N96 (RM-247) | N96 (RM-274) |N96 (RM-472)
Nokia 5310 (RM-303) | 5310-2 (RM-304) | 5320 (RM-409) | 5320-2 (RM-416) | 5610 (RM-242) | 5610d (RM-358) | 5610 XpressMusic (RM-279) | 5610 XpressMusic (RM-431) | 5700 (RM-230) | 5700 (RM-302) | 5800 (RM-356)
Nokia 6110 (RM-186) | 6110 Navigator (RM-122) | 6120C (RM-310) | 6120 Classic (RM-243) | 6122c (RM-425) | 6124 CLASSIC (RM-422) | 6210 Navigator (RM-367) | 6210S (RM-386) | 6212C (RM-396) | 6220C (RM-387) | 6290 (RM-176) | 6500C (RM-265) | 6500C-2 (RM-397) | 6500S (RM-278) | 6500 Slide (RM-240) | 6650 Fold (RM-400)
|
Nokia
PA_SL1 & PA_SL2 |
Nokia N70 (RM-84) | N71 (RM-112) | N72 (RM-180) | N70 (RM-84) | N70-5 (RM-99) | N71 (RM-67) | N73-1 (RM-133) | N73-5 (RM-132) | N75 (RM-128) | N77 (RM-194) | N80-1 (RM-92) | N80-3 (RM-91) | N90 (RM-42) | N91-1 (RM-43) | N91-8GB (RM-43) | N91-5 (RM-158) | N92 (RM-100) | N93 (RM-55)
Nokia 6680 (RM-36) | 6681 (RM-57) | 6682 (RM-58) | 3109c (RM-274) | 3110c (RM-237) | 3250 (RM-38) | 3500c (RM-272) | 3500cb (RM-273)
Nokia 5200 (RM-174) | 5200b (RM-181) | 5300 (RM-146) | 5300b (RM-147) | 5500 (RM-86)
Nokia 6085 (RM-198) | 6086 (RM-188) | 6086b (RM-260) | 6125 (RM-178) | 6126 / 6133 (RM-126) | 6131 (RM-115) | 6131 NFC (RM-216) | 6136 (RM-199) | 6151 (RM-200) | 6233 (RM-145) | 6234 (RM-123) | 6280 (RM-78) | 6300 (RM-217) | 6300b (RM-222)
Nokia 7370 (RM-70) | 7373 (RM-209) | 7390 (RM-140)
Nokia 8600 (RM-164)
Nokia E50 (RM-170) | E50 (RM-171) | E50 (RM-172) | E60 (RM-49) | E61 (RM-89) | E61i (RM-227) | E62 (RM-88) | E65 (RM-208)
|
Nokia
DCT-L: | Nokia 9290 | 9210 | 9210i (communicator)
|
Nokia
DCT4 |
Nokia 1100 | 1100 | 1101 | 1108 | 1110 | 1110 | 1110i | 1112 | 1112 | 1112i | 1600 | 1600
Nokia 2112 | 2125i | 2126i | 2128i | 2255 | 2300 | 2300 | 2355 | 2600 | 2600 | 2650 | 2651 | 2652 | 2760 Americas | 2760 Europe/Asia
Nokia 3100 | 3105 | 3108 | 3120 | 3120 | 3125 | 3128 | 3129 | 3152 | 3155 | 3155i | 3200 | 3205 | 3205i | 3220 | 3220 | 3230 | 3300 | 3300 | 3320 | 3321 | 3360 | 3361 | 3510 | 3510i | 3520 | 3530 | 3560 | 3570 | 3585 | 3586 | 3586i | 3587 | 3587i | 3588i | 3589i | 3590 | 3595 | 3595i | 3600 | 3620 | 3650 | 3660
Nokia 5070 | 5070 | 5100 | 5140 | 5140 | 5140i
Nokia 6010 | 6012 | 6015 | 6015i | 6016i | 6019i | 6020 | 6020 | 6021 | 6030 | 6030 | 6050 | 6060 | 6060 | 6061 | 6070 | 6070 | 6080 | 6080 | 610 | 6100 | 6101 | 6101 | 6101 | 6102 | 6102 | 6102 | 6102 | 6103 | 6103 | 6108 | 6111 | 6112 | 6152 | 6155 | 6155i | 616 | 6170 | 6170 | 6200 | 6220 | 6225 | 6225i | 6230 | 6230 | 6230i | 6235 | 6235i | 6236i | 6255 | 6255i | 6256 | 6256i | 6260 | 6260 | 6310 | 6310i | 6340 | 6340i | 6360 | 6370 | 6385 | 6500 | 6510 | 6560 | 6585 | 6590 | 6590i | 6600 | 6610 | 6610i | 6620 | 6650 | 6651 | 6670 | 6670 | 6800 | 6800 | 6810 | 6820 | 6820 | 6820i | 6822 | 6822
Nokia 7200 | 7210 | 7250 | 7250 | 7260 | 7270 | 7270 | 7280 | 7280 | 7360 | 7380 | 7600 | 7610 | 7610 | 7620 | 7650 | 7700 | 7710
Nokia 810 | 8310 | 8390 | 8587 | 8800 | 8800 Sirocco Edition | 8801 | 8910 | 8910i
Nokia N-Gage | N-Gage QD
|
Nokia
DCT4+: |
Nokia 1200 | 1208 | 1208b | 1650 | 1650b | 1680c-2b Classic
Nokia 2310 | 2610 | 2610b | 2626 | 2630 Americas | 2630 Europe/Asia | 2670h
|
Nokia
DCT-4 WD2: |
Nokia 2100
Nokia 3110 | 3210 | 3310 | 3315 | Nokia 3600 | 3650
Nokia 7610 | 7650
Nokia 6600
Nokia N-Gage | N-Gage QD
|
|
Package contents
- 1 x Cyclone Key Reloaded USB Dongle
Color and shape of the box can differ from one on the picture
- 1 x CD with software
- Access to support area with software and firmware files
- 6 months warranty starting the date of activation
|
|
|
|
|
|
