    RIFF JTAG BOX (REPAIR / UNBRICK / REVIVE HTC, SAMSUNG, LG, ZTE, HUAWEI)



The outstanding feature of this box is its ability to unbrick and repair completely dead GSM and CDMA cell phones, GPS devices, tablets, modems, satellite receivers, network routers. It supports hundreds of devices such as HTC Butterfly, Wildfire, One, Mozart, Legend, Desire, 500, 506e, 600, CP3, Z4, Samsung i5800, i747, i897, i9000, T959, Galaxy TAB, LG Optimus, etc New unlock product in stock

Details

Weight:0.90 lbs
Price: $199.99
Shipping: Add to cart to determine shipping fee
Options

Server Credits:
Moorc JTAG/ISP adapter:
Remote installation help:
Quantity: Out of stock

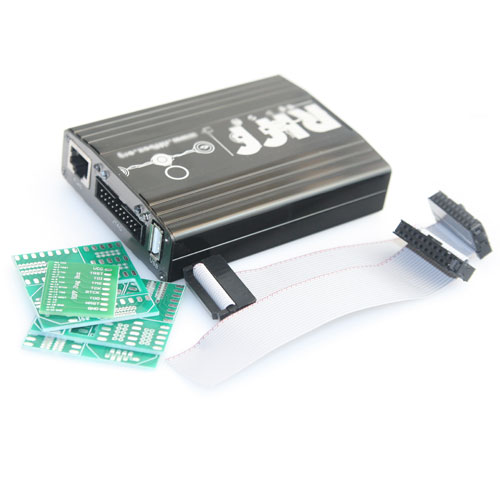

riff box jtag for samsung htc omnia lg dell cell phones

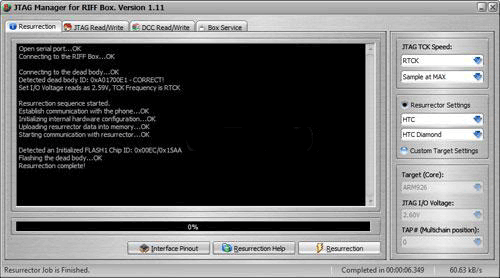

riff box software window



Your opinion matters to us, so speak up and be heard!

Opinions, Corrections, Price errors, even technical problem on this store, are welcome!

Thank you again for your feedback, it improves our performance for All of You. Please note: we may not be able to reply directly to your suggestions.
Please use this form to contact us.
Your name: *
Your e-mail: *
Phone:
Your message: *



JTAG JIG FLAT RIBBON CABLE (RIFF, EASY JTAG, GPG JTAG PRO) JTAG JIG FLAT RIBBON CABLE (RIFF, EASY JTAG, GPG JTAG PRO)
JTAG cable for easy connecting JTAG box to JIGs. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc

UNIVERSAL JTAG CABLE WITH LABELED WIRES (RIFF, EASY JTAG, GPG JTAG PRO) UNIVERSAL JTAG CABLE WITH LABELED WIRES (RIFF, EASY JTAG, GPG JTAG PRO)
JTAG cable compatible with labeled wires for easy connecting JTAG box to PCB. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc

50 PCS JTAG MOLEX SOCKET CONNECTOR SET BY MOORC 50 PCS JTAG MOLEX SOCKET CONNECTOR SET BY MOORC
Set of JTAG Molex headers provides additional connection for supported phones via JTAG PCB. You will need this header if you want to install JTAG PCB to your phone.

68 pcs JTAG JIG ADAPTER SET SAMSUNG / HTC / DELL / LG 68 pcs JTAG JIG ADAPTER SET SAMSUNG / HTC / DELL / LG
This collection of Jtag jigs helps make test point work easier. Compatible with a number of Samsung, HTC and LG models
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, JRT, ORT users with mounted pins to allow repair boot in HTC and Samsung phones without any...

MICRO USB JIG UNBRICK DOWNLOAD MODE 301K SAMSUNG T959 i9000 i897 i8700 GALAXY MICRO USB JIG UNBRICK DOWNLOAD MODE 301K SAMSUNG T959 i9000 i897 i8700 GALAXY
This USB jig dongle will help you access to download mode even if your phone is 3-button combo disabled. If you plan on getting root access or adding ROM's, you should have a dongle jig on hand just in case things do not go as planned. Download Mode Micro USB Jig will allow you to...

7 PCS JTAG ADAPTER SET - SAMSUNG (S6500 i9070 P1000 T989 i8160 N7000) + HTC ONE 7 PCS JTAG ADAPTER SET - SAMSUNG (S6500 i9070 P1000 T989 i8160 N7000) + HTC ONE
This collection of Jtag jigs helps make test point work easier. Compatible with HTC One S, Samsung Galaxy S Advance, Mini 2, Note, SII, Ace 2, Tab.
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, JRT, ORT users with mounted pins to allow repair boot in HTC and...

6 PCS JTAG JIG ADAPTER SET FOR SAMSUNG (i9003 i9001 S5600) + HTC (MOZART HD7 DIAMOND 2) 6 PCS JTAG JIG ADAPTER SET FOR SAMSUNG (i9003 i9001 S5600) + HTC (MOZART HD7 DIAMOND 2)
This collection of Jtag jigs helps make test point work easier. Compatible with HTC DIAMOND 2, HD7, MOZART, Samsung Galaxy S PLUS, Galaxy SL, HALLEY, CARA, BLADE
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, JRT, ORT users with mounted pins to allow repair...

7 PCS JTAG JIG ADAPTER SET SAMSUNG (S5510 S7070 i8000 S8500 S5830 S5260 S7230) 7 PCS JTAG JIG ADAPTER SET SAMSUNG (S5510 S7070 i8000 S8500 S5830 S5260 S7230)
This collection of Jtag jigs helps make test point work easier. Compatible with Samsung Diva, Omnia 2, Wave, Galaxy Ace, Star 2
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, Z3x Easy jtag, ORT users with mounted pins to allow repair boot in HTC and Samsung...

33PCS MOORC JPIN MOLEX FLEX CABLE + ADAPTER SET FOR RIFF Z3X PRO MEDUSA 33PCS MOORC JPIN MOLEX FLEX CABLE + ADAPTER SET FOR RIFF Z3X PRO MEDUSA
Jpin Jtag was specially designed by Moorc for JTAG boxes such as RIFF, Easy JTAG, Medusa, etc. It helps connect your JTAG box to Samsung, LG, Nokia, Asus phones without soldering using jpin flex cables.

GPG EASY JIGS 30PCS ADAPTER SET GPG EASY JIGS 30PCS ADAPTER SET
30-in-1 GPG Easy JIGs are special PCBs to perfectly fit LG, Nokia, Samsung and Huawei mobile devices. These PCBs have appropriately soldered pins so you can start working right away. With 30-in-1 GPG Easy JIGs you'll be able to repair dead boot of the devices (cell phones, modems, etc.)...

21 pcs JTAG JIG ADAPTER SET SAMSUNG 21 pcs JTAG JIG ADAPTER SET SAMSUNG
This collection of Jtag jigs helps make test point work easier. Compatible with Samsung Omnia HD, Soul, Star, Galaxy S, Z510, Spica, Portal, etc, etc
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, JRT, ORT users with mounted pins to allow repair boot in HTC and...

21 PCS JTAG JIG ADAPTER SET HTC (TOUCH PRO CRUISE HD2 LEO TOPAZ DIAMOND) 21 PCS JTAG JIG ADAPTER SET HTC (TOUCH PRO CRUISE HD2 LEO TOPAZ DIAMOND)
This collection of Jtag jigs helps make test point work easier. Compatible with HTC Google G2, Magic, Desire, HD2, Touch HD, Raphael, Hermes, Diamond, Topaz, Dream, etc
These special Jtag adapters are compatible with RIFF Box, Jtag Pro, JRT, ORT users with mounted pins to allow...

EMMC 3 IN 1 ADAPTER FOR EASY JTAG BOX (Z3X PRO) EMMC 3 IN 1 ADAPTER FOR EASY JTAG BOX (Z3X PRO)
EMMC adapter for Easy JTAG Box (Z3x-Pro) allows you to perform easy repair of phones with disabled access to bootloader via DCC (GT-i9300 / N7100 / N719 / N7102) or phones with damaged JTAG pinouts (access to ROM2 by EMMC).

6 PCS SOLDERING AID KIT W/ REAMER, BRUSH, PROBE 6 PCS SOLDERING AID KIT W/ REAMER, BRUSH, PROBE
Super useful double-ended tool set for soldering or de-soldering clean-up and preparation tasks. Made of non-magnetic steel with smooth hex shaped plastic handles, 7" overall length.

PORTABLE VARIABLE TEMPERATURE HOT AIR GUN / HEAT GUN PORTABLE VARIABLE TEMPERATURE HOT AIR GUN / HEAT GUN
This is an economical, multi-purpose 110-240 Volt AC/DC heat gun with helical wind. This hot air gun has a portable design and made for servicing electronic products. Controlled by a central processor its temperature and airflow can be adjusted according to your needs.

SOLDERING MAGNIFIER ASSISTANT TOOL SOLDERING MAGNIFIER ASSISTANT TOOL
This magnifying assistant gives you a "third hand" for working on hobbies, precision soldering, jewelry, crafts projects or any other detailed work where magnification, a steady hold and extra hands are needed!
Helping Hands has a magnifying glass and various adjustable joints...

INDUSTRIAL DIGITAL MICROSCOPE WITH 30X ZOOM MAGNIFICATION INDUSTRIAL DIGITAL MICROSCOPE WITH 30X ZOOM MAGNIFICATION
This digital microscope with up to 30x magnification level can be used for circuit board and chip pin checking without extra instruments. Software allows to easily screen capture, record video, print images, adjust image quality, etc.

ANTISTATIC DESOLDERING PUMP - SOLDER SUCKER LODESTAR L34108E ANTISTATIC DESOLDERING PUMP - SOLDER SUCKER LODESTAR L34108E
Desoldering pump Lodestar L34108E

BLACK SOLDER WICK BLACK SOLDER WICK
Black soder wick

ANTISTATIC WRIST STRAP BLUE ANTISTATIC WRIST STRAP BLUE
This Velcro wrist strap uses an alligator grounding clip to keep your body discharged. The coiled cable can stretch 5 feet. The elastic, fabric wrist strap is adjustable for all-day comfort.

15 BITS MAGNETIC MINI SCREWDRIVER SET FOR iPHONE SAMSUNG NOKIA HTC CELL PHONE 15 BITS MAGNETIC MINI SCREWDRIVER SET FOR iPHONE SAMSUNG NOKIA HTC CELL PHONE
Screwdriver set for mobile phone repair, includes 15 bits: T5, T6, T8, T10, T15, PHILIPS: #0, #1, #2, SLOTTED: #2 [2mm], #3 [3mm], SPANNER #4, TRI-WING #0, BENT PRY TOOL, ROUND AWL, RESET PIN

SOLDERING SPONGE SOLDERING SPONGE
Soldering sponge cleans any excess flux during soldering process

BULLS TWEEZERS CURVED BL-15J BULLS TWEEZERS CURVED BL-15J
The BULLS tweezers is sharp and with ergonomic design. Suitable for IC or other delicate components repairing.




History of Changes






16 April, 2016


Here is JTAG Manager v1.58 with ISP/Direct eMMC support. To use it, please prepare Your RIFF Box installation folder:

  • Rename JTAG Manager v1.56 so You can continue using it if Your account is expired
  • Backup “Useful plugins” folder content because old plugins are incompatible with new Exe, and old exe is incompatible with new plugins.
  • Start v1.58 exe and download license (If Your account is not expired)
  • Update Box firmware to v1.38
  • Download new plugins


What's new:


JTAG Manager 1.58
  • Added direct eMMC Access Interface on the RIFFBOX RJ-45 port (check pinout picture for CMD, CLK, DAT0, etc pins positions).
  • Added eMMC/SD Access page for Read/Write operations on eMMC/SD card via direct interface
  • Added eMMC/SD Advanced dialog which allows to perform advanced operations with eMMC/SD cards (reading info, browsing through OCR, CID, CSD (and EXT_CSD for eMMC only) registers’ fields, edit separate fields and writting back to card, reading/writting eMMC card’s MCU’s internal firmware, etc)
  • Added convenient information presentation for specific eMMC chips: pinouts for testpoints, manuals how to use testpoints to resurrect dead eMMC, etc). These INFO files (*.riffinfo) are stored in JTAG Manager’s Documents folder and can be downloaded via generic operation.
  • Added eMMC Firmware Update option
  • Added eMMC Firmware Reading option (firmware is stored in *.riffemmcfw format) For firmware read need to select chip from the list
  • *.riffemmcfw eMMC firmware files are now used by RIFF for firmware updates (plain binary files are supported too)
  • Added elapsed time info for eMMC firmware update stages
  • Added eMMC Testpoint info displaying (info files must be downloaded from support and are located in the JTAG Manager’s ‘Documents’ folder.
  • Added CMD42 Lock/Unlock functionality for eMMC. User can set/change/remove password to protect/unprotect (lock/unclock) the User Area Partition
  • Added the User Area Partition Forced Erase to erase Locked User Area Partition and to reset Device lock/unlock state and password (CMD42’s consequences)
  • Added Samsung Factory Erase which erases and re-formats the Samsung eMMC chips.
  • Fixed bug displaying wrong SD card size for cards capacity less than 2GB
  • Few small improvements and bug fixes

    Firmware v1.38

  • Added direct eMMC Access Interface functionality
  • Improved several parameters in the emmc communication
  • Added the CMD42 Lock/Unlock/Pasword reset features
  • Added Forced erase of locked User Area Partition
  • Added Samsung eMMC Factory Format
  • Fixed bug with SD card support
  • eMMC firmware update feature added



12 February, 2016
What's new:


This topic will serve as initial guide for RIFF Box eMMC ISP/Direct functionality. This is not regular update, but rather a major upgrade. As such, it will come free for all RIFF Boxes registered in last 6 months, and of course for all new RIFF Box customers.

To prepare everything on Your side for this upgrade, You’ll need the following:

  • RJ45 cable
  • 2×100 ohms resistors
  • External source for VCC and VCCQ (Optional)
  • Moorc adapters (Optional)
  • Activation credits (If Your box is older than 6 months)
RJ45 cable is required to connect RIFF Box to eMMC as RIFF Box RJ45 port is used for this function.

2×100 Ohms resistors are required as pull up, to increase signal levels and improve stability.

External source for VCC and VCCQ is required in case that You don’t want to open Your RIFF Box, in order to connect RIFF Box internal VCC voltage source. We know that there are already some adapters on market, which offer this function.

Moorc adapters are well known, and they offer best at price range.

Activation credits You can get in exchange for some money. We have too many of those, and we will be happy to exchange some of them to real money.


RIFF Box RJ45 port pinout:
  • 1-NC
  • 2-SD_CLK
  • 3-SD_DAT0
  • 4-SD_CMD
  • 5-NC
  • 6-NC
  • 7-NC
  • 8-GND
VCC pin is located on RIFF Box motherboard, bottom side. You can locate it if You check


19 May, 2015
What's new:


RIFF JTAG – Samsung SGH-i337M Galaxy S 4 LTE Total Repair supported
  • This PKG contains GPT for 32GB chips !
  • There is both Total Repair ™ and BootChain only repair options



Use “Total Repair” option in case that EFS is damaged after unlock. Otherwise use BootChain only option.





Please keep in mind that it’s not possible to downgrade this phone to lower version software !


19 May, 2015
What's new:


RIFF JTAG – Asus Padfone A66 bootloader repair supported
  • This PKG contains BootChain partitions for 5 different MCU ID-s. To select proper BootChain pack, read MCU ID first by using “Analyze JTAG Chain” function on JTAG Read/Write TAB.
  • GPT is from 32GB version !
  • Android Kernel and Recovery are same for all versions






In case that You have to wipe Cache partition, and it can’t be done via recovery, You can do it by using eMMC Plugin:
  • Start eMMC plugin
  • Click “Load layout from device”
  • Double click “Cache” partition
  • Click “Flash Selected”



16 May, 2015
What's new:


This is the list of custom repair packs released in last few months:
  • Andromax U R-W.riffpkg
  • Asus_Nexus_7.riffpkg
  • Brava Vega3.riffpkg
  • Casio GZone CA201L.riffpkg
  • Highscreen_Spark.riffpkg
  • HTC 8S Total Repair (PM5910001).riffpkg
  • HTC Amaze Both MID Safe Repair.riffpkg
  • HTC Desire 300 G3U.riffpkg
  • HTC Merge.riffpkg
  • HTC One M7 U PN07120.riffpkg
  • HTC One Max 0P3P70000.riffpkg
  • HTC One Max.riffpkg
  • HTC_Desire_606w_PO49100.riffpkg
  • HTC_Desire_U_T327w.riffpkg
  • HTC_Desire_X_Dual.riffpkg
  • HTC_OneM7_PN0731000.riffpkg
  • HTC_OneMini_PO5810000.riffpkg
  • HTC_OneMini_PO58220000.riffpkg
  • HTC_OneSV_PL8011000.riffpkg
  • HTC_One_S_PJ40110_VLE.riffpkg
  • HTC_One_XL_Evita_UTL.riffpkg
  • HTC_Rezound_Total_Repair.riffpkg
  • HTC_Sensation_XE_Both_ID.riffpkg
  • Huawei_Y300_151.riffpkg
  • I9192UBUBMK4.riffpkg
  • LG SU640.riffpkg
  • LT30A H.riffpkg
  • Lumia_525.riffpkg
  • Micromax_A111.riffpkg
  • Motorola MB886.riffpkg
  • Nokia_XL_RM-1030_Beta_Test.riffpkg
  • Nokia_X_RM_980.riffpkg
  • Nokia_X_RM_980_V2.riffpkg
  • Novatel_4620L.riffpkg
  • Novatel_U727_Modem.riffpkg
  • OPPO X907 Finder.riffpkg
  • P3100_16GB_XLoader+.riffpkg
  • Pantech_UM185C.riffpkg
  • Prestigio_PAP5300.riffpkg
  • Qualcomm MSM8625.riffpkg
  • S6310 Total Repair.riffpkg
  • S7562_Total_Repair.riffpkg
  • Samsung B229.riffpkg
  • Samsung i747 EFS.riffpkg
  • Samsung S5283.riffpkg
  • Samsung S6310 Total Repair.riffpkg
  • Samsung S6310N Total Repair.riffpkg
  • Samsung S6312 Total Repair.riffpkg
  • Samsung_GT-I9190_V4.2.2.riffpkg
  • Samsung_GT-I9200_V4.4.2.riffpkg
  • Samsung_i527_442.riffpkg
  • Samsung_i705.riffpkg
  • Samsung_i747_4.4.2_NE6.riffpkg
  • Samsung_R970.riffpkg
  • Samsung_R970C.riffpkg
  • Samsung_S5310.riffpkg
  • Samsung_S5310B.riffpkg
  • Samsung_t999v_EFS_repair.riffpkg
  • SE LT30A.riffpkg
  • Sony_LT28i_Ion_Test.riffpkg
  • XPERIA Z C6602.riffpkg
  • Xperia_Z_LTE_C6603.riffpkg
  • XPERIA_Z_Repair_Null_BaseBand.riffpkg




16 June, 2014
RIFF JTAG -Easy repair HTC J One HTL22 supported


Repairing bricked HTC HTL22 (PN0740000) is easy with the RIFF Box. Phone is auto powered on with USB Data Cable connected to the PC. Battery presence may be required. In case you have no USB cable near, make sure battery is charged enough and hold Power On button during initiation of JTAG connection. Resurrector will reflash radio’s boot zone and will re-write PDA’s SPL to 1.52.0000 version. Additionally to SPL and Radio zones, the zone which contains Model ID is re-flashed too. Thus after resurrection phone will have Model ID = ‘PN0740000’.

To resurrect HTC HTL22:
  • Solder JTAG cable to HTC HTL22 (PN0740000) JTAG pads;
  • Insert USB Data cable into board and PC;
  • Make sure HTC HTL22 (PN0740000) is selected in the list of models;
  • If you use battery, press Power On key;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • Disconnect power supply, de-solder JTAG wires;

Now phone is in bootable condition, that is, even if it does not start up normally you can flash it using known flashing methods.

To enter download mode:
  • Disconnect PC cable;
  • Insert battery;
  • Hold ‘Volume Down’ key and press ‘Power ON’ button.



16 June, 2014
RIFF JTAG -Easy repair Samsung Galaxy Rugby Pro I547 supported


Repairing bricked Samsung Galaxy Rugby Pro I547 is easy with the RIFF Box. Note, one simple way to connect over JTAG – connect USB cable to PC and insert battery. In this case phone is automatically powered on, so no need to press any power-on buttons on the phone keypad.

To resurrect Samsung Galaxy Rugby Pro I547:
  • Solder JTAG cable to Samsung I547 JTAG pads;
  • Insert USB Data cable into board and PC;
  • Make sure Samsung I547 is selected in the list of models;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • Disconnect power supply, de-solder JTAG wires;

Now phone is in bootable condition, that is, even if it does not start up normally you can flash it using known flashing methods.

To enter download mode:
  • Disconnect PC cable;
  • Insert battery;
  • Hold ‘Volume Down’ key and press ‘Power ON’ button.



16 June, 2014
RIFF JTAG -Easy repair Nokia Lumia 625 supported


Repairing bricked Nokia Lumia 625 is easy with the RIFF Box.

To resurrect Nokia Lumia 625:
  • Solder JTAG cable to Nokia Lumia 625 JTAG pads;
  • Insert USB Data cable into board and PC;
  • Make sure Nokia Lumia 625 is selected in the list of models;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • Disconnect power supply, de-solder JTAG wires;

Now phone is in bootable condition, that is, even if it does not start up normally you can flash it using known flashing methods.


16 June, 2014
RIFF JTAG -Easy repair Samsung Galaxy Trend Lite S7390 supported


Repairing bricked Samsung S7390 is easy with the RIFF Box. Note, one simple way to connect over JTAG – connect USB cable to PC and insert battery. In this case phone is automatically powered on, so no need to press any power-on buttons on the phone keypad.

To resurrect Samsung I847:
  • Solder JTAG cable to Samsung S7390 JTAG pads;
  • Insert USB Data cable into board and PC;
  • Make sure Samsung S7390 is selected in the list of models;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • Disconnect power supply, de-solder JTAG wires;

Now phone is in bootable condition, that is, even if it does not start up normally you can flash it using known flashing methods.

To enter download mode:
  • Disconnect PC cable;
  • Insert battery;
  • Hold ‘Volume Down’ key and press ‘Power ON’ button.



16 June, 2014
RIFF JTAG – Easy repair Samsung Rugby Smart I847 supported


Repairing bricked Samsung I847 is easy with the RIFF Box. Phone is auto powered on with USB Data Cable connected to the PC while battery is connected. Please note, MSM8255T is dual core chipset – it has ARM11 and Qualcomm Scorpion cores. During power on sequence only ARM11 core is visible on the JTAG chain. If boots are not completely damaged and it comes up to initializing of the Scorpion core then Scorpion core appears on the JTAG chain too. This will shift ARM11 from TAP0 into TAP1 position on the chain, while current resurrector has the ARM11 core hardcoded at TAP0 position. Thus make sure to establish JTAG connection in the time range while Scorpion core is not visible yet.

To resurrect Samsung I847:
  • Solder JTAG cable to Samsung I847 JTAG pads;
  • Make sure Samsung I847 is selected in the list of models;
  • Insert battery and connect USB Data cable;
  • If you use only battery, press Power On key;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • Disconnect power supply, de-solder JTAG wires;

Now phone is in bootable condition, that is, even if it does not start up normally you can flash it using known flashing methods.

To enter download mode:
  • Disconnect PC cable;
  • Insert battery;
  • Hold ‘Volume Down’ key and press ‘Power ON’ button.



16 June, 2014
RIFF JTAG – Easy repair ZTE Turkcell T40 supported


Repairing bricked ZTE T40 is easy with the RIFF Box.

To resurrect ZTE T40:
  • Solder JTAG cable to ZTE T40 JTAG pads;
  • Connect ZTE T40 tablet’s charger for power;
  • Make sure ZTE T40 is selected in the list of models;
  • Click Resurrect button;
  • Wait till software signals a successful operation completion;
  • De-solder JTAG wires;

Now device is in bootable condition, that is, even if it does not start up normally, you can flash it using known flashing methods.


23 May, 2014
JTAG Manager 1.56
  • Added Repair Packs functionality: allows customers to create own resurrectors. Advanced RIFFBOX customers will be able to create own repair modules for local use only, while RIFFBOX customers with special permissions will be able to distribute own repair packs to all RIFFBOX users. Updates list is re-organized:
    • Added feature to sort updates by name and by date,
    • Updates not browsed by user are marked with bold font for more convenient distinguish of old/new files,
    • Added update files tree view – update files are classified by folders for better convenience,
    • Search file name feature is added: press CTRL+F to open Instant Search window.
  • Timeout if user was deciding which update files to download for too long time is fixed, now there is no timeout,
  • User can do selecting files before clicking Download button for as long time as he wishes.
  • Leading and trailing spaces are removed automatically from login name during registration










13 April, 2014
JTAG Manager 1.56


What's new:
  • Added Repair Packs functionality: allows customers to create own resurrectors. Advanced RIFFBOX customers will be able to create own repair modules for local use only, while RIFFBOX customers with special permissions will be able to distribute own repair packs to all RIFFBOX users. Updates list is re-organized:
    • Added feature to sort updates by name and by date,
    • Updates not browsed by user are marked with bold font for more convenient distinguish of old/new files,
    • Added update files tree view – update files are classified by folders for better convenience,
    • Search file name feature is added: press CTRL+F to open Instant Search window.
  • Timeout if user was deciding which update files to download for too long time is fixed, now there is no timeout,
  • User can do selecting files before clicking Download button for as long time as he wishes.
  • Leading and trailing spaces are removed automatically from login name during registration
RIFF Box by Rocker Team is finally released on market. There is no other device with so many complex functions supported.
As always, Rocker team are presenting something unique and wonderful.
It will suit most of regular user needs, although it is aimed at advanced developers who need to debug their own embedded code (or reverse someone's else ).




Riff box - Supported mobile phones and communicators




Archos
Archos 50 Platinum Boot Repair/Unbrick
Hewlett-Packard
Boot repair, Unbrick
HP iPAQ 614
Dell
DELL XCD28 Boot Repair/Unbrick
DELL Streak (DELL Mini 5) Boot Repair/Unbrick
Eten
Eten X800 Boot repair/Unbrick
Lenovo
Lenovo LePhone 3G W100 - Boot Repair/ Unbrick
Lenovo A760 - Boot Repair/ Unbrick
Lenovo Gobi 2000 modem card - Boot Repair/ Unbrick Lenovo Gobi 300 modem card - Boot Repair/ Unbrick
Acer
Acer Gobi 2000 modem card - Boot Repair/ Unbrick
HTC
HTC Desire 500 (0P3Z11200) – Dead Boot Repair
HTC Desire 601 LTE (HTC Zara) – Dead Boot Repair
HTC ONE M7 PN0713000 – Dead Boot Repair
HTC Desire VC (XC) T329d – Dead Boot Repair
HTC One mini LTE 601n (HTC M4) – Dead Boot Repair
HTC T329w (HTC Proto) Unbrick – SuperCID – IMEI repair
HTC Panache 4G – Dead Boot Repair/Resurrection via USB
HTC Butterfly X920d (HTC DLX) – Dead Boot Repair
HTC Butterfly S 901s 4G LTE – Dead Boot Repair
HTC Desire 600 (PO4911000) – Dead Boot Repair
HTC Desire 500 (0P3Z10000) Unbrick – Dead Boot Repair
HTC Desire V T328w (HTC Wind) Unbrick, IMEI, SuperCID, Boot repair
HTC Desire X (HTC Proto) Unbrick , Unlock, SuperCID and IMEI repair
HTC Desire C NFC A320e (HTC Golf) Unbrick, Unlock, SuperCID, IMEI repair
HTC EVO 4G LTE Unbrick – Dead Boot Repair
HTC Amaze 4G (HTC Ruby) Unbrick – Dead Boot Repair
HTC One802 Dual (PN0771000) HTC One M7 PN071100 – Dead Boot Repair
HTC One M7 PN072000 – Dead Boot Repair
HTC One S PJ401000 Unbrick, Unlock, IMEI, SuperCID repair
HTC One S Z560E (HTC Ville C) Unbrick – Dead Boot Repair
HTC One SV C520c (HTC K2) Unbrick – Dead Boot Repair
HTC One X AT&T (PJ8310000) Unbrick, IMEI, SuperCID repair
HTC One XL (HTC Evita) Unbrick – Dead boot, Unlock, SuperCID, IMEI repair
HTC J One HTL22 (PN0740000)
HTC Sensation PG5811000 Unbrick, Unlock, IMEI, CID repair
HTC HD Mini T5555 (HTC Photon) Unbrick, Unlock, IMEI, CID repair
AT&T HTC Status (HTC ChaCha PH0613000) Ubrick, Boot, IMEI, SuperCID repair
HTC Amaze4G PH8510000 (HTC Ruby) Unbrick, Unlock, SuperCID, IMEI repair
HTC Vivid (HTC Holiday) Unbrick, IMEI, SuperCID repair
HTC Jetstream (HTC Puccini) Unbrick, IMEI, SuperCid, Boot repair
HTC EVO Design 4G / Acquire (HTC Kingdom) Unbrick, IMEI, SuperCID, Unlock repair
HTC EVO Design 4G PH4430(HTC Kingdom) Unbrick, Unlock, IMEI, SuperCID repair
HTC Windows Phone 8X (HTC Accord) Unbrick, Dead boot IMEI repair
HTC Titan X310E (HTC Eternity) Unbrick, Unlock, IMEI and SuperCID repair
T-Mobile myTouch 4G Slide (HTC Doubleshot) Unbrick, Unlock, IMEI, SuperCID repair
HTC Windows Phone 8X LTE 16GB Unbrick, Unlock, IMEI, SuperCID repair
HTC Windows Phone 8S (HTC Rio) Unbrick, Unlock, IMEI, SuperCID repair
HTC Desire VC T328d Unbrick – dead boot repair
HTC Desire Boot repair/Unbrick, Unlock, IMEI Change/repair CID Change
HTC Diamond Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC Dream – Google G1 Boot repair/Unbrick, Unlock, IMEI Change/repair, Activation bypass
HTC HD2 LEO Boot repair/Unbrick, Unlock, IMEI Change/repair CID Change
HTC Herald Boot repair/Unbrick
HTC Touch P3452 – HTC Elfin – bootloader restore
HTC Magic32A Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC Magic32B Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC Nexus Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC RhodiumW Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC Rhodium Touch Pro2 Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Topaz Boot repair/Unbrick, Unlock, IMEI Change/repair
HTC Touch HD Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Touch2 Mega Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Imagio/Whitestone repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Snap – Maple 120, Maple 100repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Dash repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Tattoo Click 100 Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Niki (HTC Touch Dual) Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Kovalsky Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
HTC Jade (HTC Touch 3G T3232) Unbrick/Boot Repair, Unlock, IMEI Change/repair, CID Change
HTC Legend Unbrick/Boot Repair, Unlock, IMEI Change/repair, CID Change
HTC Wildfire Unbrick/Boot Repair, Unlock, IMEI Change/repair, CID Change
HTC Hero Unbrick/Boot Repair, Unlock, IMEI Change/Repair, CID Change
HTC Wings (HTC S730 US) Boot Repair, IMEI Change, CID Change
HTC HD7 Boot Repair, IMEI Change, CID Update, Network Unlock
HTC Gene-P3400 (Gene100) Boot repair/Unbrick
HTC Artemis (ARTE100, ARTE110) Boot repair/Unbrick
HTC Click 1100 (ESM7225 Asia version) Boot Repair, IMEI Change, CID Update, Network Unlock
HTC Ozone XV6175 (HTC Chief) Boot Repair, IMEI Change, CID Update, Network Unlock
HTC Advantage X7510 (HTC Athena) Boot Repair / Read-Write MDOC
HTC 7 Mozart Unbrick, Unlock, IMEI Repair, CID Repair, ModelID Repair
HTC Polaris (HTC Touch Cruise P3650) Unbrick, Unlock, IMEI Repair, CID Repair, ModelID Repair
HTC 7 Trophy (HTC Spark) Unbrick, Unlock, IMEI Repair, CID Repair, ModelID Repair
Dopod Magic A6188 (HTC Sapp400) Unbrick, Unlock, IMEI and CID repair
HTC Desire HD SPL Repair (Unbrick), IMEI Repair, Unlock, CID and ModelID update
HTC Wildfire S SPL Repair (Unbrick), IMEI Repair, Unlock, CID and ModelID update
HTC Universal (PU10) Unbrick/Boot repair
HTC Wizard 200 (MDA Vario, QTEK9100, SPV M3000 . . .) Ubrick/Boot Repair
HTC Desire S (HTC Saga) Unbrick, Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Desire Z (HTC Vision) Unbrick, Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Incredible S Unbrick, Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Inspire 4G A9192 (HTC Stallion) Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Panache/Glacier/My Touch 4G Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Droid Incredible 2 ADR6350 Boot repair, Unlock, CID, ModelID, IMEI Update
HTC ThunderBolt 4G ADR6400 (HTC Mecha) Boot repair, Unlock *, CID, ModelID, IMEI Update
HTC Touch Dual US (HTC Neon 300/200) Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Sensation (HTC Pyramid) Unbrick, Unlock, ModelID, CID, S-Off, IMEI repair
HTC EVO 3D (HTC Shooter) Unbrick, Unlock, ModelID, CID, S-Off, IMEI repair
HTC EVO View 4G Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Sensation XL X315 / Bass (HTC Runnymede) Boot repair, Unlock, CID, ModelID, IMEI Update, S-Off
HTC 7 Pro (HTC Gold) Boot repair, Unlock, CID, ModelID, S-Off, IMEI Update
HTC 7 Surround T8788 (HTC Mondrian) Boot repair, Unlock, CID, ModelID, S-Off, IMEI Update
HTC One V T320e (HTC Primo) Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Radar (HTC Omega) Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Rhyme (HTC Bliss) Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Sensation XE PG5813001 (G18) Boot repair, Unlock, CID, ModelID, IMEI Update, S-Off
HTC Explorer (HTC Pico) Unbrick, Unlock, SuperCID IMEI repair
HTC ChaCha A810e Unbrick, Unlock, SuperCID IMEI repair
T-Mobile myTouch2 3G Slide (HTC Espresso) Unbrick, Unlock, SuperCID IMEI repair
HTC Flyer 4G P515E Unbrick, SuperCID, IMEI repair

HTC CDMA
HTC Droid Eris A6376 Boot Repair, ModelID repair
HTC Droid Incredible ADR6300 (HTC Incredible C) Unbrick Dead Boot Repair
HTC DROID Incredible 4G LTE (HTC Fireball) Unbrick Dead Boot Repair
HTC EVO 3D CDMA Unbrick, Unlock, IMEI, SuperCID repair
HTC Desire CDMA Unbrick, Boot repair, Read/Write NAND flash
HTC Droid DNA ADR6435 Unbrick, Unlock, IMEI and SuperCID repair
Droid Incredible X (HTC DLX) Unbrick, Unlock, IMEI and SuperCID repair
HTC Wildfire S CDMA (HTC Marvel C) Unbrick, SuperCID, IMEI repair
HTC Rhyme (HTC Bliss) Boot repair, Unlock, CID, ModelID, IMEI Update

Alcatel
GSM
Alcatel One Touch OT-993D - Boot repair/Unbrick
Alcatel OT990 - Boot repair/Unbrick
Alcatel One Touch OT-995 Unbrick – Dead boot repair

Alcatel
CDMA
Alcatel C131 - Boot repair/Unbrick
Fly
Fly IQ 280 – Dead boot repair
Fly IQ285 Unbrick/Boot repair
Nokia
Nokia Lumia 520 Unbrick – Dead Boot repair
Nokia Lumia 610 Unbrick – Dead Boot repair
Nokia Lumia 620 Unbrick – Dead Boot repair
Nokia Lumia 625 Unbrick – Dead Boot repair
Nokia Lumia 820 Unbrick – Dead Boot repair
Nokia Lumia 920 Unbrick – Dead Boot repair
CoolPad
CoolPad 5860 + Unbrick/Boot Repair
Sony Ericsson & Sony
SE Xperia X1 Boot repair/Unbrick, Unlock, IMEI Change/repair, CID Change
SE Xperia X10 Boot repair/Unbrick Unlock, IMEI Change/repair
SE Xperia X10 Mini Boot repair/Unbrick Unlock, IMEI Change/repair
SE Xperia E10 Boot repair/Unbrick Unlock, IMEI Change/repair
SE Xperia X8 Boot repair/Unbrick Unlock, IMEI Change/repair
SE Xperia E15 Boot repair/Unbrick Unlock, IMEI Change/repair
Sony Xperia Tipo Dual ST21i2 (Sony Tapioca DS)
Sony Xperia Miro ST23 / ST23i (Sony Mesona)
Sony Xperia S LT26 / LT26i / Arc HD (Sony Nozomi)
Sony Xperia TX LT29 / Xperia T LT29i (Sony Hayabusa)
Samsung GSM
Boot repair, revive dead phone
Samsung Galaxy S4T L720T - Repair/Unbrick
Samsung Galaxy S III mini SM-G730V - Repair/Unbrick
Samsung GT-i8262D Galaxy Core Duos - Repair/Unbrick
Samsung Galaxy Mega 6.3 I9200 - Repair/Unbrick
Samsung SGH-T989D Galaxy S II X (Samsung Hercules) - Repair/Unbrick
Samsung GT-S7560M Galaxy Ace II X - Repair/Unbrick
Samsung GT-S7560 Galaxy Trend - Repair/Unbrick
Samsung GT-i8730 Galaxy Express - Repair/Unbrick
Samsung Galaxy Tab 7.7 Plus SC-01E - Repair/Unbrick
Samsung GALAXY Tab 10.1 LTE SC-01D - Repair/Unbrick
Samsung Galaxy Rugby Pro I547 - Repair/Unbrick
Samsung Galaxy Ace Duos I589 Unbrick – dead boot repair
Samsung Galaxy S II LTE SC-03D (Samsung Celox) - Repair/Unbrick
Samsung A777 - Repair/Unbrick
Samsung GT-S6310N Galaxy Young - Repair/Unbrick
Samsung GT-S6310 Galaxy Young - Repair/Unbrick
Samsung GT-i9505G Galaxy S4 LTE Google Play - Repair/Unbrick
Samsung GT-i8190L Galaxy S III Mini Unbrick – Dead boot repair
Samsung GT-i8190N Galaxy S III Mini NFC - Repair/Unbrick
Samsung GT-i8262 Galaxy Core Duos - Repair/Unbrick
Samsung GT-i9190 Galaxy S4 Mini (Samsung Serrano) - Repair/Unbrick
Samsung GT-i9192 Galaxy S4 Mini Duos (Samsung Serrano) - Repair/Unbrick
Samsung GT-i9195 Galaxy S4 Mini LTE (Samsung Serrano) - Repair/Unbrick
Samsung GT-i9195L Galaxy S4 Mini LTE (Samsung Serrano) - Repair/Unbrick
Samsung GT-i9295 Galaxy S4 Active (Samsung Fortius) - Repair/Unbrick
Samsung GT-i337M Galaxy S4 LTE - Repair/Unbrick
Samsung B5512 Galaxy Y Pro Duos - Repair/Unbrick
Samsung SGH-T699 Galaxy S Relay 4G / Blaze Q - Repair/Unbrick
Samsung SGH-T999L Galaxy S III LTE - Repair/Unbrick
Samsung B7330 - Boot Repair/Unbrick
Samsung C5510 - Boot Repair/Unbrick
Samsung F480 Boot Repair/Unbrick
Samsung F500 modem Boot Repair/Unbrick
Samsung G810 modem Boot Repair/Unbrick
Samsung G810 PDA Boot Repair/Unbrick
Samsung i450 modem Boot Repair/Unbrick
Samsung i450 PDA Boot Repair/Unbrick
Samsung i550 modem Boot Repair/Unbrick
Samsung i550 PDA Boot Repair/Unbrick
Samsung i560 PDA Boot Repair/Unbrick
Samsung i568 PDA Boot Repair/Unbrick
Samsung i560 modem Boot Repair/Unbrick
Samsung i568 modem Boot Repair/Unbrick
Samsung i5500 Galaxy Boot Repair/Unbrick
Samsung i5510 Galaxy Boot Repair/Unbrick
Samsung I5700 Boot Repair/Unbrick
Samsung i5800 Boot Repair/Unbrick
Samsung i710 Boot Repair/Unbrick
Samsung i718 Boot Repair/Unbrick
Samsung i740 PDA Boot Repair/Unbrick
Samsung i740 Modem Boot Repair/Unbrick
Samsung I7500 Boot Repair/Unbrick
Samsung i780 modem Boot Repair/Unbrick
Samsung i780 PDA Boot Repair/Unbrick
Samsung Rugby Smart I847 Boot Repair/Unbrick
Samsung i897 Captivate Boot Repair/Unbrick
Samsung I8000 Boot Repair/Unbrick
Samsung i8320 modem Boot Repair/Unbrick
Samsung i8320 PDA Boot Repair/Unbrick
Samsung i8510 modem Boot Repair/Unbrick
Samsung i8510 PDA Boot Repair/Unbrick
Samsung i8910 modem Boot Repair/Unbrick
Samsung i8910 PDA Boot Repair/Unbrick
Samsung I9000 Boot Repair/Unbrick
Samsung i900 modem Boot Repair/Unbrick
Samsung i900 PDA Boot Repair/Unbrick
Samsung i908E modem Boot Repair/Unbrick
Samsung M7500 Boot Repair/Unbrick
Samsung M7600 Boot Repair/Unbrick
Samsung M8910 Boot Repair/Unbrick
Samsung S3310 Boot Repair/Unbrick
Samsung S3370 Boot Repair/Unbrick
Samsung S5230 Boot Repair/Unbrick
Samsung S5510 Boot Repair/Unbrick
Samsung S5560 Boot Repair/Unbrick
Samsung S5560i Boot Repair/Unbrick
Samsung S5570 Boot Repair/Unbrick
Samsung S5600 Boot Repair/Unbrick
Samsung S5660 Boot Repair/Unbrick
Samsung S7070 Boot Repair/Unbrick
Samsung S7230E Wave 723 Boot Repair/Unbrick
Samsung S7350 Boot Repair/Unbrick
Samsung S7350i Boot Repair/Unbrick
Samsung Galaxy Trend Lite S7390 Boot Repair/Unbrick
Samsung S8000 Boot Repair/Unbrick
Samsung S8300 Boot Repair/Unbrick
Samsung S8500 Boot Repair/Unbrick
Samsung T919 Boot Repair/Unbrick
Samsung T669 Boot Repair/Unbrick
Samsung T959 Boot Repair/Unbrick
Samsung U700 Boot Repair/Unbrick
Samsung U800 Boot Repair/Unbrick
Samsung U900V Boot Repair/Unbrick
Samsung Z240 Boot Repair/Unbrick
Samsung Z540 Boot Repair/Unbrick
Samsung G800 Boot Repair/Unbrick
Samsung i607 PDA Boot Repair/Unbrick Samsung Galaxy Mini (S5570) Boot repair/Unbrick
Samsung Nexus S (Samsung i9023) Boot repair/Unbrick
Samsung Eternity A867 Boot repair/Unbrick
Samsung Galaxy Ace S5830 Boot repair/Unbrick
Samsung Z630 Boot repair/Unbrick
Samsung Galaxy S 4G (T959v 1GB) Boot repair/ Unbrick
Samsung T749 Boot repair / Unbrick
Samsung GT-i8700 Omnia 7 Boot repair / Unbrick
Samsung W299 Boot repair / Unbrick
Samsung P960 Boot repair / Unbrick
Samsung Galaxy S II Boot repair / Unbrick
Samsung A837 Boot repair / Unbrick
Samsung Anycall m110s Boot repair / Unbrick
Samsung Wave II (S8530) Boot repair / Unbrick
Samsung s7330 Boot repair / Unbrick
Samsung Focus – i917 Boot repair / Unbrick
Samsung i997 Boot repair / Unbrick
Samsung Galaxy II OMAP4430 (i9100G, i9108)
Samsung Corby II (S3850) Boot repair / Unbrick
Samsung i520 Modem and PDA parts Boot repair / Unbrick
Samsung z500 Boot repair / Unbrick
Samsung Galaxy S Plus (Samsung i9001) Boot repair / Unbrick
Samsung Galaxy SL (Samsung i9003) Boot repair / Unbrick
Samsung Galaxy Prevail (Samsung m820) Boot repair / Unbrick
Samsung Star Duos (C6712) Boot repair / Unbrick
Samsung GT-i9103 Galaxy Z / Galaxy R Boot repair / Unbrick
Samsung GT-S5670 Galaxy Fit Boot repair / Unbrick
Samsung SGH-T759 Exhibit 4G Boot repair / Unbrick
Samsung GT-i8150 Galaxy W (Samsung Ancora) Boot repair / Unbrick
Samsung Galaxy Precedent SCH-M828 Boot repair / Unbrick
Samsung SGH-i777 Galaxy S II Boot repair / Unbrick
Samsung GT-S7500 Galaxy Ace Plus Boot repair / Unbrick
Samsung S8600 Wave 3 Boot repair / Unbrick
Samsung GT-S5360 Galaxy Y Boot repair / Unbrick
Samsung SGH-T499 Dart (Samsung Tass) Boot repair / Unbrick
Samsung SGH-T989 Galaxy S II Boot repair / Unbrick
Samsung SGH-i727 Galaxy S II Skyrocket Boot repair / Unbrick
Samsung SCH-I500 Galaxy S Mesmerize/Fascinate Boot repair / Unbrick
Samsung SHV-E120S Galaxy S II HD LTE (Samsung Celox) Boot repair / Unbrick
Samsung SCH-i920 Omnia II 8GB Boot repair / Unbrick
Samsung Galaxy Mini – GT-S5570i Boot repair / Unbrick
Samsung Galaxy Ace – GT-S5830i Boot repair / Unbrick
Samsung Z650i Boot repair / Unbrick
Samsung SGH-T679 Exhibit II 4G (Samsung Ancora) Boot repair / Unbrick
Samsung SPH-D710 Galaxy S2 Epic Touch 4G Boot repair / Unbrick
Samsung SHV-E160K Galaxy Note LTE Boot repair / Unbrick
Samsung SGH-i747 Galaxy S III LTE Boot repair / Unbrick
Samsung SGH-A887 Boot repair / Unbrick
Samsung SHV-E120L Galaxy S II HD Boot repair / Unbrick
Samsung SHV-E160L Galaxy Note LTE Boot repair / Unbrick
Samsung GT-S6102 Galaxy Y Duos Boot repair / Unbrick
Samsung GT-S7500L Galaxy Ace Plus Boot repair / Unbrick
Samsung GT-B7510 Galaxy Pro Boot repair / Unbrick
Samsung GT-B5510 Galaxy Y Pro / Galaxy Txt Boot repair / Unbrick
Samsung GT-B5620 OmniaPRO 5 / GT-B6520 Omnia 652 Boot repair / Unbrick
Samsung SGH-P960 Boot repair / Unbrick
Samsung GT-S7250D Wave M Boot repair / Unbrick
Samsung SGH-i747M Galaxy S III LTE Boot repair / Unbrick
Samsung SGH-T999V Galaxy S 3
Samsung SGH-T999 Galaxy S 3
Samsung GT-S5830G Galaxy Ace Boot repair / Unbrick
Samsung GT-S6500 Galaxy Mini 2 (Samsung Jena) Boot Repair – Unbrick
Samsung Galaxy K SHW-M130K Boot Repair – Unbrick
Samsung SGH-L760 Boot Repair – Unbrick
Samsung GT-S5380D Wave Y Boot Repair – Unbrick
Samsung GT-i9070 Galaxy S Advance Boot Repair – Unbrick
Samsung GT-i8160 Galaxy Ace 2 Boot Repair – Unbrick
Samsung GT-S5300 Galaxy Pocket Boot Repair – Unbrick
Samsung GT-S5830L Galaxy Ace Boot Repair – Unbrick
Samsung GT-T589 Boot Repair – Unbrick
Samsung ZV60 Boot Repair – Unbrick
Samsung GT-S6802 Galaxy Ace Duos Boot Repair – Unbrick
NTT DoCoMo Samsung Galaxy S III LTE SC-06D Unbrick – Dead boot repair
Samsung S5750e Wave575 Unbrick – Dead boot repair
Samsung GT-S6500D Galaxy Mini 2 (Samsung Jena) Unbrick – Dead boot repair
Samsung GT-S7500T Galaxy Ace Plus Unbrick – Dead boot repair
Samsung GT-i8190 Galaxy S III Mini Unbrick – Dead boot repair
Samsung SHW-M200K NEXUS S Unbrick – Dead boot repair
Samsung GT-S6312 Galaxy Young Duos Unbrick – Dead boot repair
Samsung GT-S5301 Galaxy Pocket Plus Unbrick – Dead Boot repair
Samsung SHW-M240S Galaxy Ace Unbrick – Dead Boot repair
Samsung SHW-M190S GALAXY S Hoppin Unbrick – Dead Boot repair
Samsung GT-S6810P Galaxy Fame WORLD FIRST Boot repair
Samsung YP-G1CW / YP-G1CB Galaxy S WiFi Unbrick – Dead Boot repair
Samsung GT-S7562 Galaxy S Duos Unbrick – Dead Boot repair
Samsung GT-i9020A Nexus S Unbrick – Dead Boot repair Samsung GT-S7562i Galaxy S Duos Unbrick – Dead Boot repair
Samsung GT-S7530 Omnia M Unbrick – Dead Boot repair
Samsung GT-S6012 Galaxy Music Duos Unbrick – Dead Boot repair
Samsung SHW-M200s Nexus S Unbrick – Dead Boot repair
Samsung SHV-E110S Galaxy S II LTE (Samsung Celox) Unbrick – Dead Boot repair
Samsung GT-i9020T Nexus S Unbrick – Dead Boot repair
Samsung SC-05D Galaxy Note LTE Unbrick – Dead Boot repair
Samsung SGH-Z710 Unbrick – Dead Boot Repair
Samsung Gravity 3 SGH-T479 Unbrick – Dead Boot Repair
Samsung GT-i8530 Galaxy Beam Unbrick – Dead Boot Repair
Samsung GT-i8350 Omnia W Unbrick – Dead Boot Repair
Samsung CDMA
Samsung SCH-i510 Droid Charge 4G LTE (Samsung Stealth) Unbrick – Dead boot repair
Samsung SCH-i559 Galaxy Mini / Galaxy Pop Unbrick – Dead boot repair
Samsung Omnia i910 Repair/Unbrick, Read/Write NAND Flash
Samsung A900 Blade Repair/Unbrick, Read/Write NAND Flash
Samsung SPH-D700 Galaxy S Epic 4G Repair/Unbrick, Read/Write NAND Flash
Samsung B159 Repair/Unbrick, Read/Write NOR Flash
Samsung SCH-S109 Repair/Unbrick, Read/Write NOR Flash
Samsung B139 Repair/Unbrick, Read/Write NOR Flash
Samsung B259 Repair/Unbrick, Read/Write NOR Flash
Samsung B309 Repair/Unbrick, Read/Write NOR Flash
Samsung B319 Repair/Unbrick, Read/Write NOR Flash
Samsung B379 Repair/Unbrick, Read/Write NOR Flash
Samsung B619 Repair/Unbrick, Read/Write NOR Flash
Samsung E189 Repair/Unbrick, Read/Write NOR Flash
Samsung B119 Repair/Unbrick, Read/Write NOR Flash
Samsung B209 Repair/Unbrick, Read/Write NOR Flash
Samsung F619 Repair/Unbrick, Read/Write NOR Flash
Samsung W629 Repair/Unbrick, Read/Write NOR Flash
Samsung S359 Repair/Unbrick, Read/Write NOR Flash
Samsung F219 Repair/Unbrick, Read/Write NOR Flash
Samsung S189 Repair/Unbrick, Read/Write NOR Flash
Samsung B219 Repair/Unbrick, Read/Write NOR Flash
Samsung E329i (Via CPU) Repair/Unbrick, Read/Write NOR Flash
Samsung SCH-R530 Galaxy S III LTE Unbrick – Dead boot repair
Samsung SCH-i535 Galaxy S3 Unbrick – Dead Boot repair
Samsung SCH-i509 Galaxy Y Unbrick – Dead Boot repair
Samsung SPH-L710 Galaxy S III LTE Unbrick – Dead Boot repair
Samsung SCH-M569 Unbrick – Dead Boot repair
LG CDMA
Repair, Read/Write NOR flash
LG VS840 Lucid 4G (LG Cayman) - Dead Boot Repair
LG RD3000 Repair, Read/Write NOR flash
LG RD3100 Repair, Read/Write NOR flash
LG RD3500 Repair, Read/Write NOR flash
LG RD3510 Repair, Read/Write NOR flash
LG RD3540 Repair, Read/Write NOR flash
LG RD3610 Repair, Read/Write NOR flash
LG RD3640 Repair, Read/Write NOR flash
LG RD6100 Repair, Read/Write NOR flash
LG LSP450T Repair, Read/Write NOR flash
LG VM265 Repair, Read/Write NOR flash
LG TD636 Repair, Read/Write NOR flash
LG GSM
LG F240L Optimus G Pro 5.5 – dead boot repair
LG E980 Optimus G Pro 5.5 4G LTE – dead boot repair
LG E975W Optimus GJ (LG Gee B) Unbrick – dead boot repair
LG P715 Optimus L7 II Dual - Dead Boot Repair
LG LU6200 Optimus LT - Dead Boot Repair
LG E988 Optimus G Pro 5.5 4G LTE - Dead Boot Repair
LG Optimus Vu (F100L) – dead boot repair
LG F100S Optimus Vu Unbrick – Dead Boot repair
LG F200K Optimus Vu II - Dead Boot Repair
LG F220K Optimus GK - Dead Boot Repair
LG E610/E612 Optimus L5 Unbrick -Dead Boot Repair
LG E900 Optimus 7 Unbrick – Dead Boot repair
LG LS970 Eclipse 4G LTE Unbrick – Dead Boot repair
LG P930 Nitro HD Unbrick – Dead boot repair
LG Optimus LTE Tag F120K Unbrick – Dead boot repair
LG Optimus LTE Tag F120L Unbrick – Dead boot repair
LG E615 Optimus L5 Dual Unbrick – Dead boot repair
LG E405 Optimus L3 Dual Unbrick – Dead boot repair
LG GT540 Optimus Unbrick/Boot Repair
LG P500 Optimus One Unbrick/Boot Repair
LG CU720 Shine Unbrick/Boot Repair
LG SH860 Unbrick/Boot Repair
LG P350 Unbrick/Boot Repair
LG P698 Optimus Link Unbrick/Boot Repair
LG P705 Optimus L7 / P700 Unbrick/Boot Repair
LG P970 Optimus Unbrick/Boot Repair
LG C660 Optimus Pro Unbrick/Boot Repair
LG F-160K Optimus LTE2 Unbrick/Boot Repair
LG F-160L Optimus LTE2 Unbrick/Boot Repair
LG F-160S Optimus LTE2 Unbrick/Boot Repair
LG SU630 Unbrick – Dead boot repair
Pantech
Pantech Vega Iron IM-A870L – Dead Boot Repair
Pantech Vega Racer 2 LTE IM-A830L Unbrick – Dead Boot Repair
Pantech SKY VEGA S5 A840S Unbrick – Dead Boot repair Pantech Vega Racer 2 LTE SKY IM-A830S Unbrick – Dead Boot repair
Pantech Vega Racer 2 LTE SKY IM-A830K Unbrick – Dead Boot repair
Pantech Vega S – Sky IM-A730S Unbrick – Dead Boot Repair
Pantech Vega R3 IM-A850K Unbrick – Dead boot repair
Pantech Vega R3 IM-A850L Unbrick – Dead boot repair
Pantech Vega R3 IM-A850S Unbrick – Dead boot repair
Pantech Vega LTE M IM-A810S SKYG – Unbrick – Dead boot repair
Pantech Vega Racer IM-A770K Unbrick – Dead boot repair
Pantech Sky Vega LTE EX IM-A820L Unbrick/Boot repair
Pantech Sky Vega LTE IM-A800s Unbrick/Boot repair
Pantech SKY Vega RACER IM-A760S Unbrick/Boot repair
Pantech Sky Vega T100K Unbrick/Boot repair
Toshiba
Boot repair, unbrick, Unlock, EFS rebuild
Toshiba G810 Boot Repair/Unbrick
Toshiba G900 Boot Repair/Unbrick
Toshiba G910 Boot Repair/Unbrick
Toshiba TG01 Boot Repair/Unbrick, EFS rebuild, Unlock (IMEI will be changed)
Motorola CDMA
Motorola W150i Repair/Unbrick, Read/Write NOR Flash
Motorola W200 Repair/Unbrick, Read/Write NOR Flash
Motorola W210 Repair/Unbrick, Read/Write NOR Flash
ASUS
Boot repair, unbrick
Asus Padfone Infinity A80 Unbrick – dead boot repair
Asus Padfone 2 A68 Unbrick – dead boot repair
Asus Padfone A66 Unbrick – dead boot repair
ASUS P526 Unbrick – dead boot repair
Haier GSM
Repair, Read/Write NAND flash
Haier C2076
Haier CDMA
HAIER C2076 Repair, Read/Write NAND flash
HAIER C300 Repair, Read/Write NOR flash
HAIER C3010 Repair, Read/Write NOR flash
HAIER C2040 Repair, Read/Write NOR flash
HAIER C5100 Repair, Read/Write NOR flash
HAIER C6000 Repair, Read/Write NOR flash
HAIER C301R Repair, Read/Write NOR flash
ZTE GSM
ZTE Racer X850 Unbrick – Dead Boot Repair
ZTE N721 Unbrick – Dead Boot Repair
ZTE F160 Unbrick – Dead Boot repair
ZTE V889D Unbrick – Dead boot repair
ZTE Skate Acqua (V880) Unbrick -Dead boot repair
ZTE Skate Unbrick - Dead boot repair
ZTE RACER Boot Repair/Unbrick
ZTE Turkcell T40 Boot Repair/Unbrick
Orange Boston (Commtiva Z71) Boot Repair/Unbrick
ROVER PC EVO V7 Boot Repair/Unbrick
ZTE CDMA
ZTE S183 - Repair, Read/Write NAND flash
ZTE C132 Striker - Repair, Read/Write NAND flash
ZTE-C N600 - Repair, Read/Write NAND flash
ZTE S100 - Repair, Read/Write NAND flash
ZTE F285 - Repair, Read/Write NAND flash
ZTE Striker (S1602) - Repair, Read/Write NAND flash
ZTE C370 - Repair, Read/Write NOR flash
ZTE C355 - Repair, Read/Write NOR flash
ZTE WP829 - Repair, Read/Write NOR flash
ZTE R518 - Repair, Read/Write NOR flash
ZTE AC2776 - Repair, Read/Write NOR flash
ZTE AC2746 - Repair, Read/Write NOR flash
ZTE F290 - Repair, Read/Write NOR flash
ZTE S185 - Repair, Read/Write NOR flash
ZTE S170 - Repair, Read/Write NOR flash
ZTE S165 - Repair, Read/Write NOR flash
ZTE FWPC26 - Repair, Read/Write NOR flash
Huawei GSM
Huawei Ascend G525-U00 - Unbrick/Boot Repair
Huawei Ascend W1-U00 - Unbrick/Boot Repair
Huawei Honor (Huawei U8860) - Unbrick/Boot Repair
HUAWEI Ascend G600 - Unbrick/Boot Repair
HUAWEI Ascend U8950-1 - Unbrick/Boot Repair
Huawei Ideos X3 U8510-1 Unbrick/Boot Repair
Huawei Blaze Unbrick/Boot Repair
Huawei Ascend Y300-0100 U8833 Unbrick/Boot Repair
Huawei Asura Unbrick/Boot Repair
Huawei Ideos U8150/U8150D Unbrick – Boot Repair
Huawei U2800 Unbrick – Dead Boot Repair
Cincinnati Bell Huawei U8500 Unbrick – Dead Boot Repair
Huawei Ascend Y200 (Huawei U8655) Unbrick – Dead Boot Repair Huawei Ascend G300 (Huawei U8815) Unbrick – Dead Boot Repair
Huawei Ascend G330 (Huawei U8825D) Unbrick – Dead Boot Repair
Huawei Sonic (Huawei U8650) Unbrick – Dead Boot Repair
Huawei Boulder U8350/U8350-51 Unbrick – Dead Boot Repair
Huawei U8800 Pro Unbrick – Dead boot repair
T-Mobile Pulse (Huawei U8220) Unbrick – Dead Boot repair
Vodafone 858 Smart (Huawei U8160) Unbrick – Dead boot repair
Huawei U1270 Unbrick – Dead boot repair
Huawei Ideos X1 U8180 (Huawei Gaga) Unbrick, Dead Boot repair
Huawei U8110 Unbrick, Dead Boot repair
Huawei U8800 Impulse 4G/ X5 Unbrick, Dead Boot repair
Huawei 1280 Unbrick, Dead Boot repair
Huawei C8500 Unbrick, Dead Boot repair
Huawei CDMA
Repair, Read/Write NOR flash
Huawei C2806M | C2830 | C2901M | C2906 | C5005 | C5100 | C5589 | C8500 Android
Micromax
Repair
Micromax A87 Ninja 4.0
Micromax E390
Other CDMA
Boot repair, unbrick
HAIER C2076 Repair, Read/Write NAND flash
HAIER C300 Repair, Read/Write NOR flash
HAIER C3010 Repair, Read/Write NOR flash
HAIER C2040 Repair, Read/Write NOR flash
HAIER C5100 Repair, Read/Write NOR flash
HAIER C6000 Repair, Read/Write NOR flash
HAIER C301R Repair, Read/Write NOR flash

Micromax C111 (QSC1100, QSC6010) Repair, Read/Write NOR flash
Micromax MMX 250C Repair, Read/Write NOR flash
Micromax C100 Repair, Read/Write NOR flash

Nokia 1255 Repair/Unbrick, Read/Write NOR Flash
Nokia 1006 Repair/Unbrick, Read/Write NOR Flash

INTEX In50 Repair/Unbrick, Read/Write NOR Flash

AnyData ADU555C Repair/Unbrick, Read/Write NOR Flash

Olive C2110 Jungo Repair/Unbrick, Read/Write NOR Flash
RoverPC
Boot repair, revive dead phone
RoverPC Evo V7
Philips
Boot repair, revive dead phone
Philips Xenium W737
Innos
Boot repair, revive dead phone
INNOS D9C
Gigabyte
Boot repair, revive dead phone
Gigabyte GSmart G1342 Houston
Gigabyte GSmart Rio R1
Karbon
Boot repair, revive dead phone
Karbonn S5 Titanium



Supported Satellite Receivers (STB-s)




Orton
Orton 4100C Unbrick, Read/Write Flash
EuroSky
EuroSky ES-4100 Unbrick, Read/Write Flash



Supported Tablets




Samsung
Samsung Galaxy Tab 7.7 Plus SC-01E - Repair/Unbrick
Samsung GALAXY Tab 10.1 LTE SC-01D - Repair/Unbrick
Samsung GT-P5100 Galaxy Tab 2 10.1 Unbrick – Dead Boot repair
Samsung GT-P5110 Galaxy Tab 2 10.1 WiFi Unbrick – Dead Boot repair
Samsung GT-P3100 Galaxy Tab 2 7.0 Unbrick – Dead boot repair
Samsung GT-P3110 Galaxy Tab 2 7.0 Unbrick – Dead boot repair
Samsung GT-P3113 Galaxy Tab 2 7.0 Unbrick – Dead boot repair
Samsung GT-P7320 Galaxy Tab 8.9 LTE Unbrick, Repair, Read/Write eMMC memory
Samsung GT-P6810 Galaxy Tab 7.7 WiFi 16GB Unbrick, Repair, Read/Write eMMC memory
Samsung Galaxy TAB (Samsung P1000) Unbrick, Repair, Read/Write NAND Flash memory
Samsung Galaxy TAB (Samsung P1000N) Unbrick, Repair, Read/Write NAND Flash memory
Samsung Galaxy TAB (Samsung M180s) Unbrick, Repair, Read/Write NAND Flash memory
Samsung Galaxy TAB Wi-Fi (P1010) Unbrick, Repair, Read/Write NAND Flash memory
Samsung Galaxy Note (Samsung N7000) Unbrick, Repair, Read/Write eMMC memory
Samsung Galaxy Note (Samsung i9220) Unbrick, Repair, Read/Write eMMC memory
Samsung Galaxy Plus (GT-P6200) Unbrick, Repair, Read/Write eMMC memory
Samsung YP-G70EW Galaxy S WiFi 5.0 Unbrick, Repair, Read/Write eMMC memory
Samsung GT-P6800 Galaxy Tab 7.7 Unbrick, Repair, Read/Write eMMC memory
Samsung SGH-i717 Galaxy Note LTE Unbrick, Repair, Read/Write NAND Flash memory
Samsung SHW-M180W Galaxy Tab WiFi Unbrick – Dead Boot repair
Samsung GT-N8010 Galaxy Note 10.1 WiFi Unbrick – Dead Boot repair
Samsung SGH-T879 Galaxy Note Unbrick – Dead Boot repair
HTC
HTC EVO View 4G Boot repair, Unlock, CID, ModelID, IMEI Update
HTC Flyer Boot repair, Unlock, CID, ModelID, S-Off, IMEI Update
HTC Flyer WiFi (PG41400) Unbrick, S-off, CID update
Huawei
Huawei Ideos S7 Unbrick, Repair, Read/Write NAND Flash memory
ZTE
ZTE V9 Unbrick, Repair, Read/Write NAND Flash memory



Supported modems & routers




ZTE
ZTE AC30 USB modem unbrick – dead boot repair
ZTE MF100 Boot Repair/Unbrick
ZTE MF112 Boot Repair/Unbrick
ZTE MF622 Boot Repair/Unbrick
ZTE MF626 Boot Repair/Unbrick
ZTE MF628 Boot Repair/Unbrick
ZTE MF170 Boot Repair/Unbrick
ZTE MF180 Boot Repair/Unbrick
ZTE MF190 Boot Repair/Unbrick
ZTE MF180S Boot Repair/Unbrick
Huawei
Huawei UML397 4G LTE™ Wireless Modem Boot Repair/Unbrick
Huawei E1550 Boot Repair/Unbrick
Huawei E17X Boot Repair/Unbrick
Huawei E220 Boot Repair/Unbrick
Huawei E585 Boot Repair/Unbrick
Huawei E169 Boot Repair/Unbrick
Huawei E585 Boot Repair/Unbrick
Huawei E160 Boot Repair/Unbrick
Huawei E160G Boot Repair/Unbrick
Huawei E153U Boot Repair/Unbrick
Huawei EC1260 (CDMA) Boot Repair/Unbrick
Huawei E5830 Boot Repair/Unbrick
Huawei E5832 Boot Repair/Unbrick
Sierra Wireless
Sierra USB Modem 597 Boot Repair/Unbrick
Sierra USB Modem U595 Boot Repair/Unbrick
Sierra Wireless MC8355 Boot Repair/Unbrick
Pantech
Pantech UM150 Boot Repair/Unbrick
Sungil
Sungil SXC1080 Repair/Unbrick, Read/Write Flash
LinksSys
LinkSys WRT54G Unbrick, Read/Write Flash
Orange
Orange Nivo 7560U Repair/Unbrick
Samsung
Samsung SCH-LC11 4G LTE Mobile Hotspot Unbrick






Riff box - Supported GPS devices




Daewoo
Boot repair
Daewoo DPN3500






Riff box - Description



RIFF BOX JTAG firmware/hardware supports communication with single or multichained TAP controllers. All currently supported cores, according to IEEE 1149.1 Test Access Port standard, put 0b1 data into IR register upon CAPTURE state. Thus it makes possible automatic detection of IR register size of each TAP present on the JTAG chain. In this case IR "pre-" and "post-" stuffing bit sizes are not required to be specified by user and are determined automatically. All is needed is a TAP controller position number of the device user is trying to connect to.


Riff box - Supported ARM cores



  • Generic ARM Cores: ARM7, ARM9 (ARM920, ARM926, ARM946), ARM11, CORTEX-A8,CORTEX-A9;
  • Qualcomm QSC Family: QSC1100, QSC1110, QSC6010, QSC6020, QSC6030, QSC6055, QSC6085, QSC6240, QSC6270;
  • Qualcomm MSM Family: MSM6000, MSM6150, MSM6245, MSM6246, MSM6250, MSM6250A, MSM6260, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6800A, MSM6801A, MSM6290, MSM7225, MSM7227, MSM7625, MSM7627, MSM7230, MSM8255, MSM8255T, MSM8260;
  • Qualcomm QSD Family: QSD8250, QSD8650;
  • Qualcomm ESM Family: ESM7602A;
  • Qualcomm MDM Family: MDM6085 MDM6200, MDM6600;
  • OMAP Family: OMAP1710, OMAP3430, OMAP3630, OMAP4430;
  • NVIDIA Family: TEGRA2;
  • Marvell/XScale Family: PXA270, PXA271, PXA272, PXA310, PXA312, PXA320.
  • Samsung Processors: S5P6422, S5PV310, Exynos 4412 QUADCORE.



Riff box - Supported chipsets based on those ARM cores with RIFF DCC Loader functionality:



  • OneNAND Memory (connected directly to the MCU’s address space);
  • CFI Compliant NOR Memory with CFI Command sets 0×0001, 0×0002, 0×0200 and 0×0003;
  • NAND Controller in MSM6250, MSM6250A;
  • NAND Controller in QSC6055, QSC6085, QSC6240, QSC6270;
  • NAND Controller in MDM6085, MDM6200, MDM6600;
  • NAND Controller in MSM6245, MSM6246, MSM6270, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6290, MSM6800A, MSM6801A;
  • NAND Controller and OneNAND Controller in MSM7225, MSM7227, MSM7625, MSM7627;
  • NAND Controller in MSM7200, MSM7200A, MSM7201A, MSM7500, MSM7500A, MSM7501A, MSM7600;
  • NAND Controller in QSD8250, QSD8650;
  • eMMC Controller #2 in MSM7230, MSM8255, MSM8255T;
  • eMMC Controller #0 in S5PV310;


In short, if you have a device in hands which has supported chipset inside and if this chipset's core belongs to the supported ARM cores list, then you can connect and read/write memory of your device over JTAG link.


Riff box - JTAG features



  • ARM7, ARM9, ARM11, PXA3xx, PXA270, Cortex-A8 cores supported
  • Multiple devices on JTAG chain supported, TAP number selection available
  • Any custom voltage level selection within the range of ~1.4V to 3.3V
  • TCK / Adaptive clocking selection available
  • Halt core (NRST is not changed)
  • Reset core (NRST is applied before halt)
  • Run core
  • Direct Memory Read (by 8/16/32-bit bytes/half-words/words)
  • Direct Memory Write (by 8/16/32-bit bytes/half-words/words)
  • Access to ARM core control registers (coprocessor 15)
  • Program code breakpoints
  • Custom scripting and DCC loader supported (compatible with Trace32 scripts)
  • Custom GDB Server Available
  • Support for Windows XP, Vista, 7, 8



Riff box - Server credits



Server credits can be used to purchase additional activations such as Clone activation that converts your clone box into an authentic registered box and eMMC support activation that allow to use JTAG manager v1.58 software with ISP/Direct eMMC support. Box upgrade is required. Moorc adapter can be used to facilitate upgrade.
  • eMMC Support Activation - 30 credits
  • Clone Activation - 60 credits



Riff box - Package content














Customers who bought this product also bought :

GSM-CDMA 2 IN 1 UNIBOX (SERIAL+USB INTERFACE)
Gsm-Cdma 2 In 1 Unibox (Serial+Usb Interface)
UNIVERSAL UNLOCK SIM V2 (OPT. SIM CUTTER+PKEY DONGLE+SOFTWARE)
Universal Unlock Sim v2 (Opt. Sim Cutter+Pkey Dongle+Software)
Z3X BOX PRE-ACTIVATED W/ SAMSUNG PRO (W/ 29 UNLOCKING CABLES)
z3x Box Pre-Activated W/ Samsung Pro (W/ 29 Unlocking Cables)
Z3X EASY-JTAG BOX (Z3X PRO) [UNBRICK REPAIR SAMSUNG LG MOTOROLA HUAWEI NOKIA]
z3x Easy-Jtag Box (z3x Pro) [Unbrick Repair Samsung Lg Motorola Huawei Nokia]
INFINITY BEST DONGLE - EASY SERVICE TOOL FOR NOKIA (X, X+, XL LUMIA 735)
Infinity Best Dongle - Easy Service Tool For Nokia (X, X+, Xl Lumia 735)



Similar products :

2 IN 1 Z3X BOX SAMSUNG + LG EDITION (WITH 54 CABLES)
2 In 1 z3x Box Samsung + Lg Edition (With 54 Cables)
NS-PRO BOX UNLOCKER SAMSUNG GALAXY S S2 S3 2 3 II III 4 NOTE TAB BLAZE ATIV
Ns-Pro Box Unlocker Samsung Galaxy S s2 s3 2 3 Ii Iii 4 Note Tab Blaze Ativ
SAMSUNG Z3X UNLOCK BOX WITHOUT CABLES
Samsung z3x Unlock Box Without Cables
Z3X EASY-JTAG BOX (Z3X PRO) [UNBRICK REPAIR SAMSUNG LG MOTOROLA HUAWEI NOKIA]
z3x Easy-Jtag Box (z3x Pro) [Unbrick Repair Samsung Lg Motorola Huawei Nokia]
MICRO BOX FULLY ACTIVATED [UNLOCK ALCATEL BLACKBERRY LG HTC]
Micro Box Fully Activated [Unlock Alcatel Blackberry Lg Htc]
GC PRO BOX HOUSING (WITHOUT SMART CARD & CABLES)
Gc Pro Box Housing (Without Smart Card & Cables)


Your cart
Cart is empty

Authentication
Username

Password


Remember Me
Log in
Register
Recover password



Secure Shopping
News
Medusa Pro update. Added LG D160 D802 D855 F440L LS980
Wonderful transformation. Medusa box becomes Medusa Pro
How to unlock Apple iPhone passcode lock if you forgot it using MFC dongle or IP box
Z3x SAMSUNG TOOL PRO. Direct unlock & CERT reading Galaxy S6, Edge G925A G920A S275R
Z3x SAMSUNG PRO activation. IMEI change, direct unlock Galaxy S4 Note 3 G530h T217T T217A N910A N910T i8260 N910P
Sigma box update. Added unlock, IMEI repair for ZTE Open C, Open 2, Z730 Concord II, Acer Liquid Z500
BST dongle update: unlocking & flashing support for Samsung Galaxy Note 4 SM-N910 & variants
Factory unlock via software for Samsung Galaxy S5, Note 2, 3, Ace 3, Core Plus, N900T, G900T
VI Tool: Apple iPhone and iPad password unlocker
How to unlock, change imei on Samsung Galaxy S5 S 5, Note 3, Gear, Neo cell phones SM-G900A SM-G900V G900T G900F
Spookey box update v1.2.2.1 for HTC, Blackberry, Samsung
Driver installation video for Octopus box
Z3X, NSpro Installation and troubleshooting videos
Octoplus box supports Repair security for a range of hardlocked Sony models with damaged Simlock TA units
Launch of new unlock code server site for resellers and mobile phone store owners www.Recell.me
MEP0 cable from GPG for SEtool, LGtool
NSPro 6.5.1 released

More News





 All Rights Reserved Copyright © 2002-2016 Cellcorner
