Description

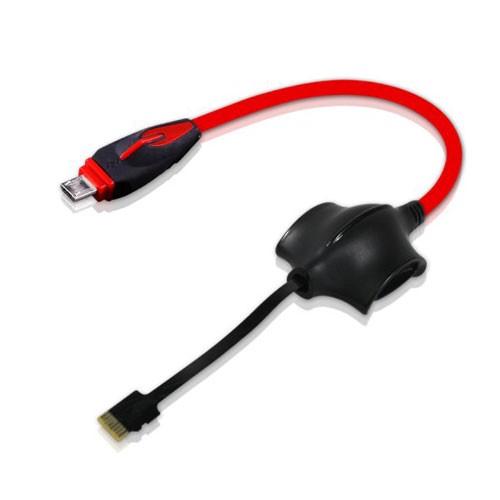

- With this GPG S-BOOT REPAIR clip it has never been easier to repair the boot on Samsung OMAP chipset phones
- Repair the boot on Samsung i9500, i9300, i9308, i939d, m440s, i317, T889, E210k, E210L, E210s, N7100, N7108, N719, N7102 very easily.
- No disassembly is required except for a couple of models whereby you just need to remove the screen before doing the work.
- No test point soldering is required.
|
Compatible devices
- Samsung i9500 Boot Repair
- Samsung i9300 Boot Repair
- Samsung i9308 Boot Repair
- Samsung i939d Boot Repair
- Samsung M440s Boot Repair
- Samsung i317 Boot Repair
- Samsung T889 Boot Repair
- Samsung E210k Boot Repair
- Samsung E210L Boot Repair
- Samsung E210s Boot Repair
- Samsung N7100 Boot Repair
- Samsung N7108 Boot Repair
- Samsung N719 Boot Repair
- Samsung N7102 Boot Repair
|

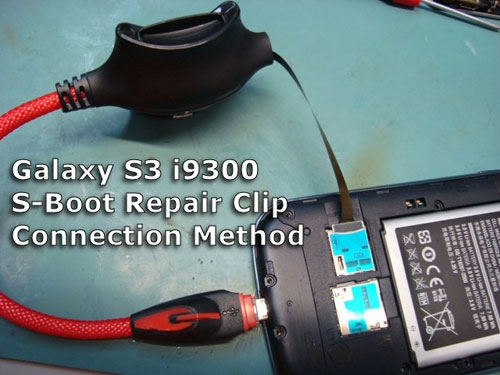

Samsung i9300 dead boot repair tutorial with GPG S-Boot Clip
- Power off phone.
- Insert SD card connector from S-Boot cable into i9300
- Connect power preferrably with regulated power supply or battery power supply, recommend to use of regulated power supply, because it can observe the change of electric current, when everything is ready.
- Insert 19000 download clip.
- Now wait, do not cut off power supply in the middle otherwise it may not be repaired at all.
- Generally after 2-5minutes, it will enter download mode.
- If more than 5 minutes it has not entered download mode, then this usually means phone has flash ic problem or other hardware problems, please check the other reasons.
- In the repair process, power current will jump every few seconds, which is telling you it is writeing data from SD to mobile phone.
- Do not cut off power, otherwise it may never be able to repair again.
|
Package content
|
|
|
|
|
