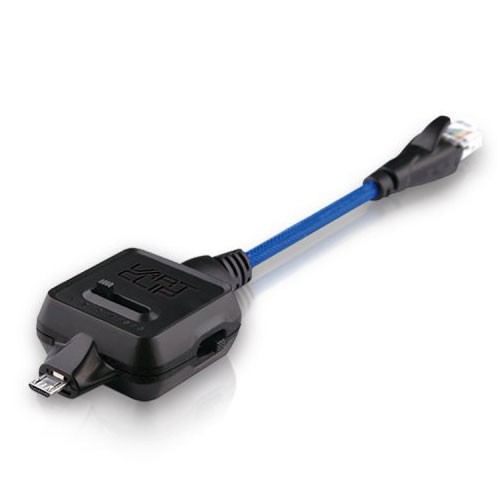

UART CLIP WITH RESISTOR SWITCH: 619K, 523K, 301K, 255K, 150K, 102K | |
|
|
Description
This Multifunctional UART Clip is a special cable that is very versatile and useful for today's mobile phone unlocking engineers.
You can use this cable for Flashing, Unlocking, Repair, Putting phones into Download mode.
This cable gives you the flexibility you need, offering a large range of resistance values, which are often needed to perform certain functions when working with modern Samsung and LG phones.
For example you may have a Samsung Galaxy S4 that needs flashing, but its volume down button is damaged and you cannot put in download mode. with this cable, simply set 619K resistor value and plug into phone in powered off, mobile will auto power on and will be in download mode, now you can flash your phone as normal.
You can see the different resistor settings below, these can be set then connected to the phone. This is very unique and powerful cable which every service center needs.
|
Functions of the Resistor switch
- 619K Samsumg Factory Mode ON S4 etc - ( Samsung S5620, C3303, i9250 etc)
- 523K Samsung Factory Mode OFF - (Samsung S3350, i9500 S4, T369, C3630C, C3530, C3500 etc)
- 301K Samsung Factory Mode ON - (Samsung i9100, M250S, T959, i9000, M110S, i8700, etc)
- 255K Samsung Factory Mode OFF - (Samsung A400, etc )
- 150K Samsung Unlocking & Flashing - ( which needs UART Connections like C3300, C3303K etc )
- 102K LG Unlocking & Flashing - (LG GS100, GS101, GS101GO, GS102, GS105, GS106, GS107, GS107a, G5107b, GW300, etc)
|
Compatible devices
|
Package content
|
|
|
|
|
|
|
