Z3X Easy-Jtag Plus Full Upgrade Set is designated for those users, who already own Z3X Easy-Jtag, but want to increase its possibilities and enjoy new features.
Z3X Easy-Jtag Plus is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and much more protocols.
Offer is valid for Z3X Easy-Jtag boxes activated before 07.07.2017
|
Advantages of the new hardware
- Box to Host PC speed increased up to 40MB/sec
- JTAG Interface speed increased 20%
- eMMC 1 Bit ISP Speed increased up to 4MB/sec
- eMMC 4 Bit ISP Speed increased up to 12MB/sec (eMMC 5.0+) **
- eMMC 4 Bit Speed up to 18MB/sec
- eMMC 8 Bit Speed up to 28MB/sec ( eMMC 5.0+ )
- Compatibility with 99 host PC systems and OS’s
- Compatibility with old Easy JTAG gen. 1 ISP adapters (1bit)
- Adapter-less ISP (all stuff inside the box)
- Compatibility with all market popular eMMC sockets (with supplied adapters)
- True Plug and Play for modern Windows OS (8, 8.1, 10)
- Full Support for legacy OS like Windows XP
|
Outstanding features of Easy Jtag Plus
- Updated Host MCU SAM3X8E vs LPC1768 in old box.
- Updated HIGH SPEED FPGA SPARTAN6 vs SPARTAN3 in old box
- Updated POWER MANAGEMENT subsystem – Full Digital PWM with ADC control.
- Added microUSB Connector if additional power required.
- Added VCC and VCCQ switch with overcurrent protection.
- Updated USB device interface: USB 2.0 480 Mbps (High Speed)
- Integrated ISP engine: Z3X High Power Pro Engine (4Mb/s )
- ISP Support 1 and 4 bit* connection now.
- Added eMMC 8 bit high speed interface up to 42Mhz
- Integrated NAND* engine: NFC with 4 Kbyte RAM buffer and ECC
- Integrated M-PHY* interface.
- Integrated SPI engine: up to 21 MHz clock for popular SPI Memory Flash IC
- Integrated Self Test Core that exclude 90% faults in production.
- Integrated CCID Card Reader for Z3X Software Use
|
Software features
- DUMP AND PINOUTS DATABASE
Free access to large dump and pinouts database and constantly updated software tools
- EASY JTAG TOOL
The main application allowing you to use most of the product features. It's the most powerful tool of all
- EASY JTAG PLUS TOOL
Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery
- EASY JTAG SPI FLASHER
Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers, e.t.c.
- EASY JTAG SINGLE PACKAGE REPAIR
Create user customized repair packages. This is partition layout, pinout, eMMC preconfig and instructions
- EASY JTAG API
Access to most useful box functionality to create your own decisions
|
Easy JTAG Single Package Repair Software
Easy JTAG Single Package Repair is a free additional software decision to work at conjunction with the basic Easy JTAG software.
The main objectives of this software is the easy creation of repair files and simplify service repair maintenance.
Single Package Repair allows you to read a binary dump of the disk and parse it into partitions according to the GPT table,
configure partitions depending on your specific task, create a recovery file for recording to disc.
The software also allows you to save progress of your work as projects and share them with others people.
Repair file allows you to quickly and easily rewrite data at the disk, just open it by the Easy JTAG software.
|
Android EMMC explorer software (free add-on)
Android Explorer are tool for browsing Android filesystem (EXT4) from eMMC Dump or from directly connected eMMC Card or phone PCB!
Android Explorer allow you to extract some imortant data without dumping full image like a user photos or contacts2.db file. You can extract any other important data or simple explore android filesystem structure.
- ISP connection or full dump browsing
- Support EXT2 , EXT3 , EXT4
- Extraction single files or group of files
- Support GPT disk partitioning ( Samsung Method)
- Support MBR disk partitioning ( HTC Method)
|
EasyJTAG SPI Flasher Tool Software
EasyJTAG SPI Flasher Tool is a utility for identifying, reading, writing, verifying and erasing flash chips.
It is designed to flash BIOS/EFI/coreboot/firmware/ images on mainboards, network/graphics/storage/routers/TV etc. controller cards, and various other programmer devices.
- Supports EasyJTAG Box as SPI interface
- Supports SPI 247 flash chips.
- Supports Dangerous Prototypes Bus Pirate as SPI flashers
- Supports usage of various FTDI FT2232/FT232H-based devices as SPI flashers
- Supports Flash IC auto detection.
- Full Box Powered via RJ45 Port ( no need external power sources )
- High Speed up to 400Kb/Sec. (8Mb flash read about 20sec , write + verify about 1.20sec )
|
Supported CPU
- Qualcomm MSM6245
- Qualcomm MSM6246
- Qualcomm MSM6250 (A)
- Qualcomm MSM6260
- Qualcomm MSM6270
- Qualcomm MSM6275
- Qualcomm MSM6280 (A)
- Qualcomm MSM6281
- Qualcomm MSM6290
- Qualcomm MSM6800
- Qualcomm MDM6270
- Qualcomm MDM8200
- Qualcomm QSC1100
- Qualcomm QSC6010
- Qualcomm QSC6270
- Qualcomm MSM7200 (A, B)
- Qualcomm MSM7201 (A, B)
- Qualcomm MSM7225 (A)
- Qualcomm MSM7227 (A)
- Qualcomm MSM7227T
- Qualcomm MSM7600
- Qualcomm MSM7625
- Qualcomm MSM8225
- Qualcomm MSM8227
- Qualcomm QSD8250
- Qualcomm QSD8650
- Qualcomm APQ8060
- Qualcomm APQ8064
- Qualcomm APQ8064T
- Qualcomm MSM8260
- Qualcomm MSM8660
- Qualcomm MSM8930
- Qualcomm MSM8930 (A, B)
- Qualcomm MSM8960
- Samsung S3C6410
- Samsung S5P6442
- Samsung S5PC110
- Samsung S5PC210
- Samsung S5PV310
- Broadcom BCM2133
- Broadcom BCM2153
- Broadcom BCM2155
- Broadcom BCM21654
- HiSilicon HI6731
- Marvell PXA270
- Marvell PXA312
- ST-Ericsson ST-U8500
- ST-Ericsson ST-U9500
|
Supported flash devices
- AMD/Spansion NOR
- eMMC
- Hynix eMMC
- Hynix H8BCS0QG0MMR
- Hynix H8BES0UQ0MCR
- Hynix H8BES0WU0MCR
- Hynix HYH0SSJ0MF3P
- Hynix H8ACSOPL0MCR
- Hynix HYC0SEH0MF3P
- Intel NOR
- Micron eMMC
- Micron 1024Mb
- Micron 256Mb
- Micron MT29F1G08
- Micron MT29F1G16
- Micron 512Mb
- Pretec eMMC
- Samsung eMMC
- Samsung NOR
- Samsung 1024Mb
- Samsung Flex-OneNAND 512Mb
- Samsung OneNAND 1024Mb
- Samsung Flex-OneNAND 1024Mb
- Samsung Flex-OneNAND 1024Mb DDP
- Samsung OneNAND KFH2G16Q2M
- Samsung KFH2G16Q4M
- Samsung OneNAND KFW4G16Q2M DDP Demux
- Samsung OneNAND KFW4G16Q2M DDP
- Samsung OneNAND KFG4GH6Q4M
- Samsung K5G1G13ACH
- Samsung K9F1208
- Samsung K9K1216
- Samsung K9F2808
- Samsung KBE00500AM
- Samsung K9F5608
- Samsung KF92G16
- Samsung 512Mb
- Samsung K9K2G08
- Samsung K9F5608
- Samsung K91G08
- Samsung KBE00S00AM
- Samsung K9LAG08U0M
- Sandisk eMMC
- ST Electronics NOR
- ST Micro 128MB
- ST Micro 512MB
- Toshiba TC58NW
- Toshiba TC58512FT
- Toshiba TY9000AC10AOBG
- Toshiba TCDAM82F1
- Toshiba TC58DDM92F2
- Toshiba TY9000A800J0GG
- Toshiba TC58NYG0S3CXGJS
- Toshiba TYA000BC00DOGG
- Toshiba TH58NYG2S8C
- Toshiba TC58NYG1S8C
- Toshiba TH58NYG2S3C
- Toshiba TC58512FT
- Unknown (Sandisk) eMMC
- Unknown eMMC
|
Package content

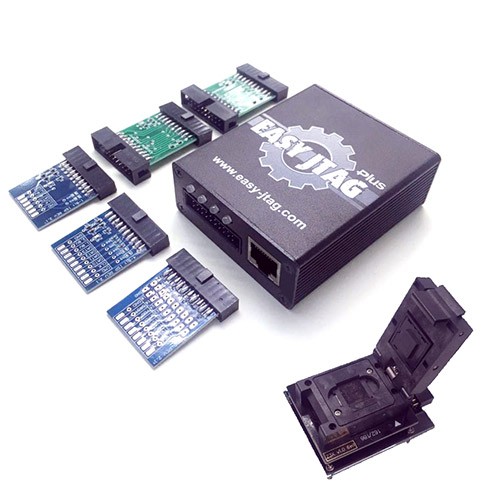

- Easy JTAG Plus Box ( Metal Edition )
- Z3X Certified universal eMMC socket
- JTAG Pin 20 Standard Cable
- ISP Soldering connector 1bit
- ISP Soldering connector 4bit
- JTAG Soldering connector
- 20P to 20P Adapter for E type – eMMC Sockets.
- 20P to 20P Adapter for U type – eMMC Sockets.
- USB A-B cable
- Free access to our file support servers.
- 1 X Software on CD
Smart card is not included. One from the existing box can be used.
