Description

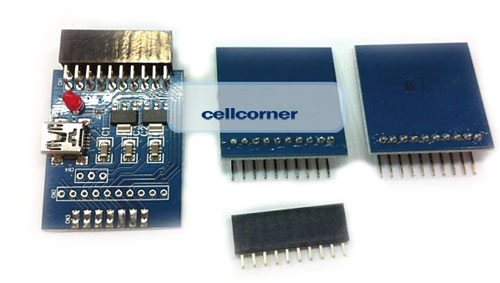

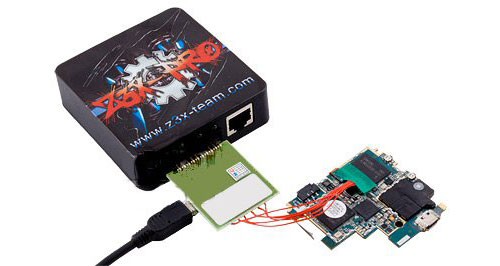

EMMC adapter for Easy JTAG Box (Z3x-Pro) allows you to perform easy repair of phones with disabled access to bootloader via DCC (GT-i9300/N7100/N719/N7102) or phones with damaged JTAG pinouts (access to ROM2 by EMMC).
Adapter allows also in PRO version for low level formatting of EMMC, easy one button repair boot via EMMC Direct, repartition Slave/Master. Our adapter you can use for ISP (in phone board) and direct connection.
|
List of phones supported to work via EMMC Tool for Read/Write operation
- Samsung Galaxy Note II N7100 (16GB)
- Samsung GALAXY S4 (I9500/16GB)
- Samsung I9300 GALAXY SIII (Unicom Edition)
- Samsung I9100 GALAXY SII (16GB)
- Samsung I9003 GALAXY SII (16GB)
- Samsung I9300 GALAXY SIII (International Edition, 16 ??)
- Samsung Galaxy i9220
- Samsung Galaxy Note N7102 II (32GB / Unico)
- Samsung W2013, Samsung S7568
- Samsung I9300 GALAXY SIII (International Edition, 32 ??)
- Samsung W999, Samsung Galaxy Note II N7100 32G
- Samsung S7572
- Samsung E120LGalaxy SII HD LTE
- Samsung W899
- Samsung I9268, Samsung S7562i (Galaxy S Duos)
- Samsung GALAXY ???? II N719
- Samsung I879
- Samsung Galaxy Note II N7102 (16GB / dual)
- Samsung Galxy Note III
- Samsung Galaxy i9220 ???? ()
- Samsung I939D GALAXY SIII (? ????)
- Samsung GALAXY ???? II N7108 (??? )
- Samsung I9308 GALAXY SIII (??? )
- Samsung B9388, Samsung I8262D (GALAXY Dous)
- Samsung I8190 GALAXY SIII Mini (16GB)
- Samsung I9070 Galaxy S (8GB)
- Samsung I9100 GALAXY SII
- Samsung I8190 GALAXY SIII Mini (8 ??)
- Samsung i9100G (GALAXY SII)
- Samsung I8552 (Galaxy Win)
- Samsung I9108 (GALAXY SII)
- Samsung B9120 (??? II)
- Samsung I8750 (ATIV S/16GB)
- Samsung I9105P (GALAXY SII Plus)
- Samsung I9305 (GALAXY SIII LTE)
- Samsung I939 GALAXY SIII (Telecom )
- Samsung I9260 GALAXY ?? (16GB)
- Samsung I8160 (Galaxy Ace 2)
- Samsung GALAXY S4 (I9508 / Mobile)
- Samsung N7105 (Galaxy Note II LTE)
- Samsung I699 (GALAXY Trend)
- Samsung I9260 GALAXY ?? (8GB)
- Samsung GALAXY S4 (I959 / ? )
- Samsung I929 (GALAXY SII DUO)
- Samsung I9050
- Samsung I9228, Samsung I9103 (Galaxy R)
- Samsung I909 (Galaxy S)
- Samsung I779
- Samsung I8250
- Samsung I8150 (Galaxy W)
- Samsung I919 (GALAXY S DUOS)
- Samsung GALAXY S4 (I9505 / Quad / 4G )
- Samsung I8258
- Samsung I919U (GALAXY S Duos)
- Samsung GALAXY S4 (I9500/32GB)
- Samsung I8530 (Galaxy Beam)
- Samsung B9062
- Samsung S6358 (Galaxy Ace ???)
- Samsung I9018 (Galaxy S)
- Samsung I619 (Galaxy Ace ???)
- Samsung I809 (Galaxy S)
- Samsung N8000 (Galaxy Note 10.1)
- Samsung i9200 (Galaxy Mega 6.3/16GB)
- Samsung i9200 (Galaxy Mega 6.3/8GB)
- Samsung S7500 (Galaxy Ace Plus)
- Samsung I9208 (Galaxy Mega 6.3)
- Samsung Galaxy Note 8.0 (N5100/3G + WiFi)
- Samsung E210S (GALAXY SIII)
- Samsung I535 (GALAXY SIII)
- Samsung D710 (??? ??? 4G)
- Samsung I759
- Samsung I9150 (Galaxy 5.8 Mega )
- Samsung S6352 (Galaxy Ace ?)
- Samsung S7508 (Galaxy Ace Plus)
- Samsung S5698 (Galaxy Xcover)
- Samsung S7530 (OMNIA M)
- Samsung GALAXY SIII (TD-LTE )
- Samsung I659 (Galaxy Ace Plus)
- Samsung I717 (Galaxy Note)
- Samsung I9300 GALAXY SIII (International Edition, 64 ??)
- Samsung I9020 (Nexus S)
- Samsung GALAXY SII i9100G (Tencent )
- Samsung I9220 Galaxy Note (Extreme Edition)
- Samsung S6108 (Galaxy Y POP)
- Samsung I9023 (Nexus S)
- Samsung I8558 (Galaxy Win)
- Samsung Galaxy Tab 7.7 P6800 (16 ?? )
- Samsung S7530E (OMNIA M)
- Samsung B5330 (Galaxy Chat)
- Samsung I8730 (Galaxy Express)
- Samsung I9205 (Galaxy Mega 6,3)
- Samsung I747 (GALAXY SIII)
- Samsung I9070 Galaxy S (16GB)
- Samsung I339
- Samsung I9100 GALAXY SII (32GB)
- Samsung I9100 GALAXY SII (Unicom Edition)
- Samsung GALAXY S4 (I9500/64GB)
- Samsung I519, Samsung E110S (Celox)
- Samsung I667 ( 2)
- Samsung I9210 (Galaxy SII LTE)
- Samsung S6500D
- Samsung T889 (Galaxy Note II)
- Samsung I727 (Galaxy SII ??)
- Samsung I8750 (ATIV S/32GB)
- Samsung S5300 (Galaxy ???)
- Samsung i9088 (Galaxy S)
- Samsung L710 GALAXY SIII ( )
- Samsung I9080 (GALAXY )
- Samsung T989 (Hercules)
- Samsung S6812i
- Samsung B5510 (GALAXY Y Pro)
- Samsung I777 ()
- Samsung S6500 (Galaxy Mini 2)
- Samsung E170K (Galaxy R Style)
- Samsung I930 (ATIV Odyssey)
- Samsung E220 (GALAXY Pop/8GB)
- Samsung S7272 (Galaxy Ace 3)
- Samsung S5280 (GALAXY Star)
- Samsung I9152 (Galaxy Mega 5,8)
- Samsung i677 ( Flash)
- Samsung S7710 (Galaxy Xcover 2)
- Samsung E220 (GALAXY Pop/16GB)
- Samsung S6012 (Galaxy Music Duos)
- Samsung S6810 (Galaxy )
- Samsung R830 (Galaxy Axiom)
- Samsung GALAXY SIII +
- Samsung S5301 (Galaxy Pocket Plus)
- Samsung S6812 (Galaxy )
- Samsung I547 (Galaxy Rugby Pro)
- Samsung I6282D (Galaxy Core)
- Samsung M950 (Galaxy Reverb)
- Samsung I437 (Galaxy Express)
- Samsung S6312 (GALAXY ? Duos)
- Samsung T699 (???? 4G Galaxy S)
- Samsung S6310 (GALAXY Young)
- Samsung M340S (Galaxy M)
- Samsung L300 (Galaxy 4G LTE)
- Samsung I847 ( SMART)
- Samsung Galaxy SII WiMAX
- Samsung S759 (Omnia M)
- Samsung I577 (Galaxy Exhilarate)
- Samsung I405 (Galaxy Metrix 4G)
- Samsung E310S (Mega Galaxy 6.3)
- Samsung T959 (???? 4G)
- Samsung M190S (Galaxy S Hoppin)
- Samsung I7500U Samsung
- Samsung I757 (Galaxy SII ??? HD)
- Samsung Nexus S 4G
|
Supported EMMC chips
- BGA 169 pins
- Samsung GT-I9100 / i9100G / i9108 / i9220 / i9228 / N7000 / i777 / M250S / M250K / i9250 - EMMC CHIP SDIN5D2-4G, SDIN5C4-16G, SDIN4C2-4G, SDIN4C1-4G, SDIN5C2-8G
- Samsung GT-i9300/N7100 - EMMC CHIP KMVIS000LM-B503/KMV3U000LM-B304
- China copy I9300/N719/N7102 - EMMC CHIP KMVTU000LM-B503
- China copy I9100/N9220/N7000 - EMMC CHIP KMVYL000LM-B503
- Huawei, Levono, ZTE - EMMC CHIP KLMAG4FEJA-A001, KMVAL000LM-B304, KMSJS000KM-B308, H9DP32A4JJAC
- BGA 162 pins
- Google G14/G17/G18/G23 - EMMC CHIP H9TP33A6ADMC-MRKYM, KMMLL000QM-B503, KMKJS000VM-B309, KMKLL000UM-B406
- BGA 186 pins
- Samsung I717 / 727 / 777 / E160K / E120S / T989 / I929 / W999 / B9120 / P7320 - EMMC CHIP: KMKYL000VM-B603
|
Supported Functions

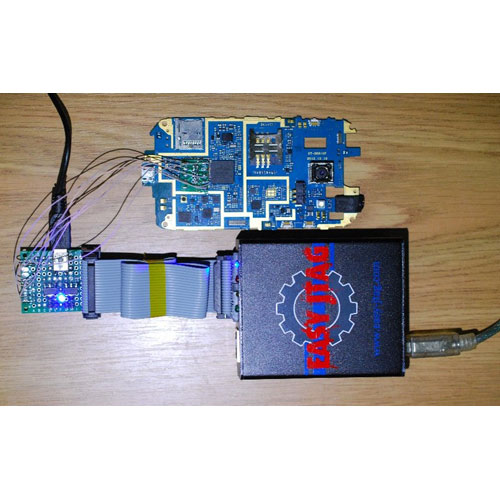

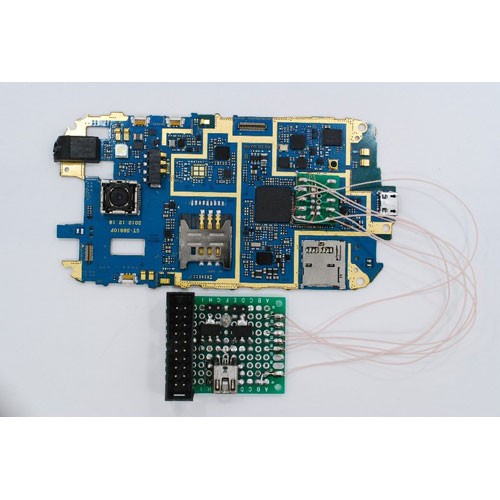

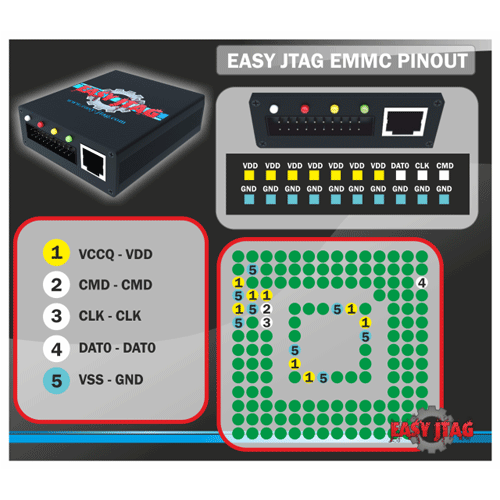

- Read/Write EMMC via ISP. (You can connect direct to phone pcb, EMMC pinouts available)
- Read/Write EMMC via direct connect (EMMC installed in socket).
- One click boot repair via direct emmc connection (First in the world and exclusive) (EMMC PRO activation required)
- Read MMC info (Many usefull info there such as read/write counter, error counter, etc) (EMMC PRO activation required)
- Read/Write EMMC via ISP connect (You can connect direct to phone pcb, EMMC pinouts available) (EMMC PRO activation required)
- Read/Write EMMC via direct connect (EMMC installed in socket or JTAG Socket soldered to EMMC pins) (EMMC PRO activation required)
- Pause/Resume while Reading/Writing EMMC (EMMC PRO activation required)
- Factory EMMC formatting (If you are lucky may be this will help you recover bad emmc) (EMMC PRO activation required)
- Low level EMMC formatting. (If you lucky may be this will help you recover bad emmc) (EMMC PRO activation required)
- Master/Slave partition activation (This function will help you choise Active partition for Boot) (EMMC PRO activation required)
- EMMC smart repartition. (One click repartion function) (EMMC PRO activation required)
- EMMC partition cloning. (EMMC PRO activation required)
|
FAQ
- Question: Can I repair EMMC CHIP (suddenly dead phones)
Answer: No. At this moment you can't repair demaged EMMC chip
- Question: Can I repair Suddenly dead phones ?
Answer: Yes if something was erased in EMMC CHIP you can repair it.
- Question: Can i repair boot on phone with disable JTAG?
Answer: Yes you can. (N7100,I9300 boot inside ROM2, after write ROM2 phones back to work)
- Question: Can i repair dead phones I9082, i9105, S6810P with disabled JTAG, after touch ROM2.
Answer:Yes you can. Just need write ROM2 via EMMC direct connection.
|
Package content
|
|
|
|
|
