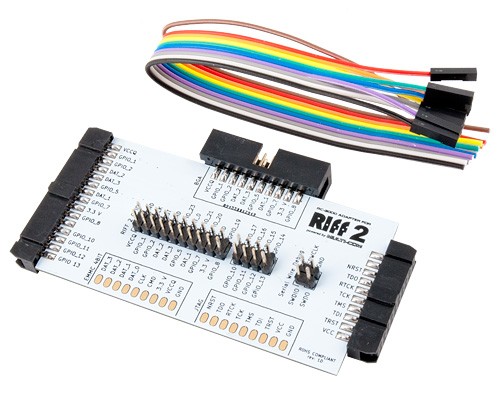

Description of RC2000 Riff2 adapter
RC2000 Adapter eMMC/JTAG for Riff BOX 2 allows a very simple mobile phone repair by JTAG using IDC20 pin connector known from previous riff but offers also support for eMMC using leatest 30 pin connector (IDC 30 pin). By this you can repair phones with blocked JTAG access (GT-i9300 / N7100 / N719 / N7102, etc.), repair phones with damaged JTAG points/pads (access to ROM2 by EMMC) or read/write EMMC applicable for the data recovery/analysis. Using the adapter you can perform format EMMC or low-format (in case of damage EMMC), CMD42 Lock/Unlock/Pasword reset or Samsung eMMC Factory Format. Our adapter allows you to connect in ISP mode (directly onto your phone without removing the EMMC) or Direct (by removing the BGA soldering and the corresponding memory fields or using adapter).
|
Output signals connectors
- JTAG: GND, TRST, TDI, TMS, TDO, TCK, RTCK, NRST, VCC
- eMMC: DAT0, DAT1, DAT2, DAT3, CLK, CMD, GND, VCCQ, VCC 3.3V, RST
- GPIO: 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 19, 20, 21, 22, 23, 24
- SDW: DI0, CLK, D0, GND
|
Features of RC2000 adapter
- eMMC/SD reading info, browsing through OCR, CID, CSD (and EXT_CSD for eMMC only) registers’ fields, edit separate fields and writing back to card, reading/writing eMMC card’s MCU’s internal firmware, etc
- eMMC Firmware Update option
- eMMC Firmware Reading option
- CMD42 Lock/Unlock functionality for eMMC - user can set/change/remove password to protect/unprotect (lock/unlock) the User Area Partition
- User Area Partition Forced Erase to erase Locked User Area Partition and to reset Device lock/unlock state and password (CMD42’s consequences)
- Samsung Factory Erase which erases and re-formats the Samsung eMMC chips.
|
Supported Functions
- Read/Write EMMC via ISP. (You can connect direct to phone pcb, EMMC pinouts available)
- Read/Write EMMC via direct connect (EMMC installed in socket).
- One click boot repair via direct EMMC connection (First in the world and exclusive) (EMMC PRO activation required)
- Read MMC info (Many useful info there such as read/write counter, error counter, etc) (EMMC PRO activation required)
- Read/Write EMMC via ISP connect (You can connect direct to phone pcb, EMMC pinouts available) (EMMC PRO activation required)
- Read/Write EMMC via direct connect (EMMC installed in socket or JTAG Socket soldered to EMMC pins) (EMMC PRO activation required)
- Pause/Resume while Reading/Writing EMMC (EMMC PRO activation required)
- Factory EMMC formatting (If you are lucky may be this will help you recover bad emmc) (EMMC PRO activation required)
- Low level EMMC formatting. (If you lucky may be this will help you recover bad emmc) (EMMC PRO activation required)
- Master/Slave partition activation (This function will help you choise Active partition for Boot) (EMMC PRO activation required)
- EMMC smart repartitioning. (One click repartion function) (EMMC PRO activation required)
- EMMC partition cloning. (EMMC PRO activation required)
|
Package content
|
|
|
|
|
|
|
