Server credits for Riff box, License activation, PKG License Activation, eMMC Support Activation, Clone Activation
|
 |
|
|
|
|
|
|
|
|
|
EMMC SUPPORT ACTIVATION FOR RIFF BOX | |
|
|
RIFF BOX SERVER CREDITS
You can use these RIFF Box Server Credits to purchase three activations:
eMMC Support Activation
Clone Activation
PKG License Activation
|
|
|
RIFF BOX VER. 2 REPAIR TOOL (WITH SUPPORT FOR EMMC, JTAG, i2C, SPi, i2C)
There is no other device with so many complex functions supported.
Riff Box ver.2 suits most of regular user needs, although it is aimed at advanced developers who need to debug their own embedded code or reverse someone else's.
Unique scripting support, GDB Server for...
|
|
|
MOORC JTAG eMMC - ISP ADAPTER FOR OCTOPLUS / ATF / RIFF / EasyJTAG / MEDUSA
|
eMMC JTAG-ISP set of adapters allows direct programming (BGA162 / 186, BGA221, BGA153 / 169) with your ATF, ATF Lightning, ATF Nitro, Octoplus, Medusa, Riff, GPGeMMC, Z3x Easy JTAG, ORT boxes
|
|
|
35PCS MOORC JPIN JTAG EASY PIN FLEX CABLE + ADAPTERS FOR RIFF Z3X-PRO
|
Jpin Jtags were specially designed by Moorc for JTAG boxes such as RIFF, Easy JTAG, Medusa, etc. It helps connect your JTAG box to Samsung, ASUS, LG phone without soldering using jpin flex cables.
|
|
|
PROBE & POWER CABLE (SIGNAL FINDER) FOR RIFF JTAG BOX / OCTOPLUS / Z3X PRO
|
The Probe Cable for Riff Box has dual purpose: probe needle is used to find JTAG signals on unknown phone boards, the second purpose is to power the target board without an external power supply. JTAG cable has labeled wires for easily connecting JTAG box to PCB. Compatible with RIFF...
|
|
|
15 IN 1 PRECISION ELECTRONIC SCREWDRIVER SET PRO'SKIT SD-9804
|
Pro'sKit SD-9804 set of precision screwdrivers consists of 16 different types of bits and bit holder.
|
|
|
|
|
Description
eMMC Support Activation for RIFF Box allows you to use JTAG Manager v1.58 software with ISP/Direct eMMC support. eMMC support activation is free for all new unregistered RIFF Boxes.
eMMC support activation allow you to:
- Update RIFF Box firmware for a period of 1 year
- Access RIFF download servers for a period of 1 year
- Receive support on RIFF forums

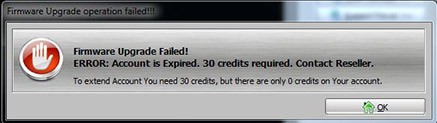

This activation is required for all boxes showing "Error. Account is expired." error message on start up.
|
JTAG Manager v1.58 with ISP/Direct eMMC support
To use it, please prepare your RIFF Box installation folder:
- Rename JTAG Manager v1.56, so you can continue using it if your account is expired.
- Backup "Useful plugins" folder content because old plugins are incompatible with new Exe, and old exe is incompatible with new plugins.
- Start v1.58 exe and download license (if your account is not expired)
- Update Box firmware to v1.38
- Download new plugins.
|
RIFF Box - Upgrade Procedure
This is an initial guide for RIFF Box eMMC ISP/Direct functionality. This is not regular update, but rather a major upgrade.
As such, it will come free for all RIFF Boxes registered in the last 6 months (180 days), and of course for all new RIFF Box customers.
To prepare everything on your side for this upgrade, you will need the following:

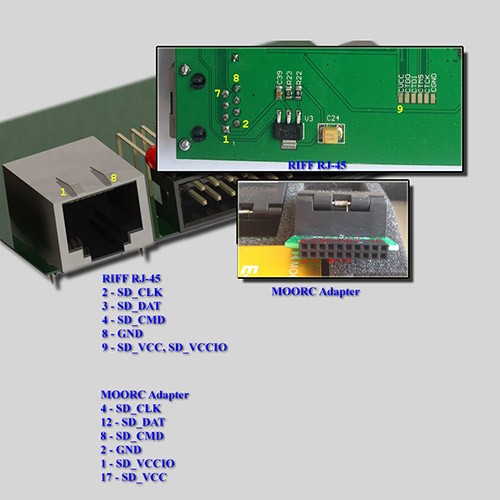

- RJ45 cable (required to connect RIFF Box to eMMC, as RIFF Box RJ45 port is used for this function)
- 2 x 100 ohms resistors (to increase signal levels and improve stability)
- External source for VCC and VCCQ (optional, in case that you don't want to open your RIFF )
- Moorc adapters (optional)
- Activation credits (if your box is older than 6 months)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
