iREWORK STATION FOR SOLDERING / DESOLDERING / PREHEATING / LCD SEPARATING

iREWORK STATION - Description

iREWORK STATION - Specifications

• Ambient Operating Temperature: 0 - 50°C
• Maximum Enclosure Temperature: 52°C
• Operating voltage: 230VAC/50-60Hz
• Output Power: 300 Watts
• Heating Ramp up (indoor temperatures 28°C): 1°C/sec
• Cooling down ratio (indoor temperatures 28°C): 0.45°C/sec.
• Temperature Range:Room temperature - 350 ℃
• Temperature Tolerance: ± 3 ℃
• Thermal recovery: 0.11 sec
• iREWORK Box Size: 230*90*45 MM
• Package Size: 350*280*100 MM
• Gross Weight: 3.7Kg

iREWORK STATION - Functions and features

• All functions are finely controlled using our custom made software control system with real time data display
• General settings and operating ambient temperature ranges can be programmed using our software in order to work with or without computer

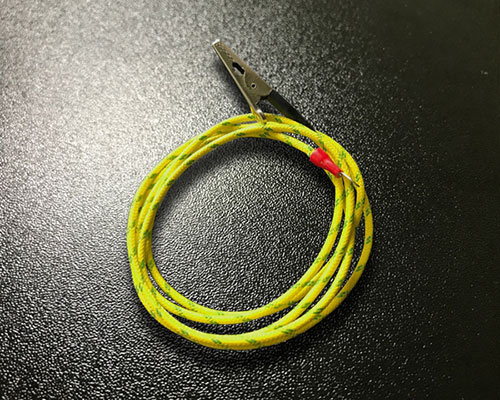

• Has 4 integrated temperature sensors (internal temperature, heater temperature, external temperature and real time temperature tester K Type sensor)
• The heating system has automatic temperature control that can keeping temperature constant and accurate while you work
• An integrated 0.96" OLED that can display all necessary data including state, temperature and voltages
• A built in temperature tester function that can accurately and efficiently measure solder iron and hot air temperature (Measurement range: -125 - 1200 C, Tolerance: ± 1 C) in real time . This way you can be sure your rework tools are correctly calibrated and working at peak performance

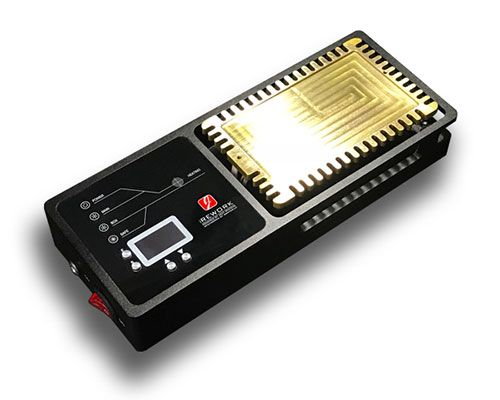

• Heating plate made from high purity copper with an efficient method for high heat flux design

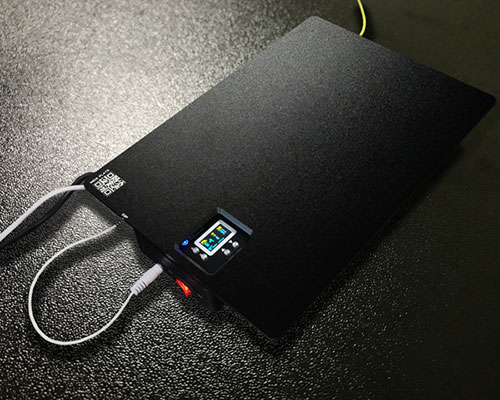

• Wide plate made from aluminum can separating glass etc(Compatible size for 13 inch and below)
• With Wide plate can use for baking, drying, aging etc (Eg.water-flooded components of UMT mainboard)

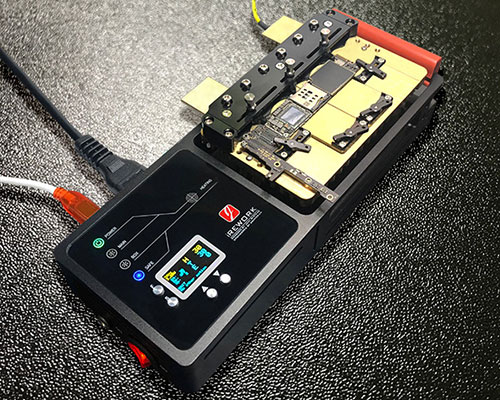

• Almost all current PCB integrated circuits can be soldered and de-soldered without the need of a soldering iron or a hot air gun. (Eg: Apple A7 A8 A9 A10 A11 A12 CPU 、 baseband IC or harddisk IC etc)
• Can act as a pre-heater for your everyday needs to minimize the risk of component damage
• Smart phones, iPad products' glass lens, touch screens & LCD displays can be separated in a few mins
• Default factory settings with general working conditions specification (Eg. Glue remove, IC de-soldering & Soldering, lens & touch screen assembly settings etc)
• Integrated self-resetting overheat protection
• Warning alerts and sound alerts
• Voltage overload protection integrated
• Short circuit detection integrated
• Automatic shutdown function integrated
• All functions are user customizable
• Lifetime free software upgrades and more

iRework Station - Package content

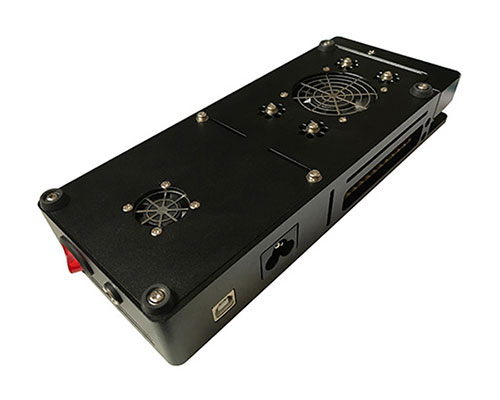

• 1 x iREWORK BOX

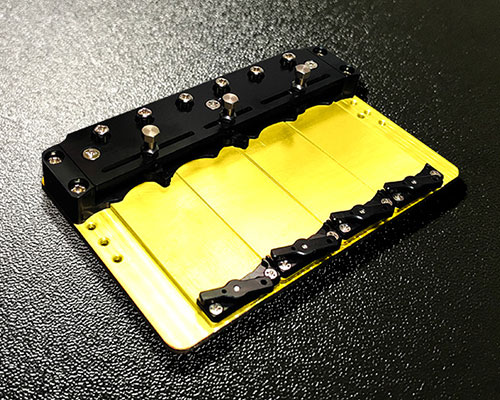

• 1 x Universal PCB holder(PCB fixture)
  • 4 x M2*6 Screws
• 1 x Wide plate

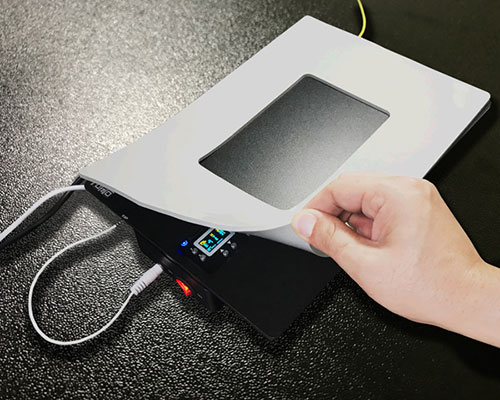

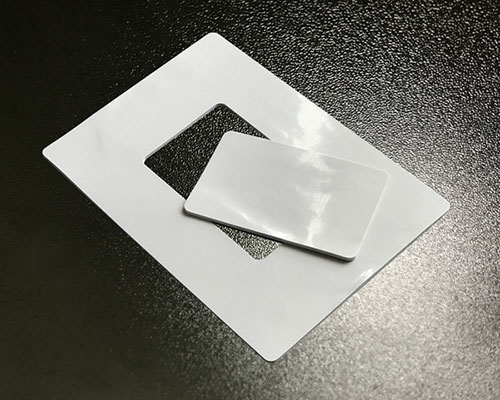

• 1 x Silicone Protective pad
• 1 x ESP cable
• 1 x Repair tools kit
  • 1 x Mini suction cup

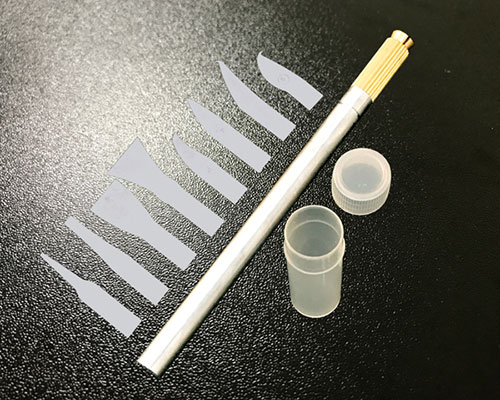

  • 1 x E-knife 8 in 1 set
  • 2 x Plastic Prying Tools
  • 3 x Anti-static Spudger Tools

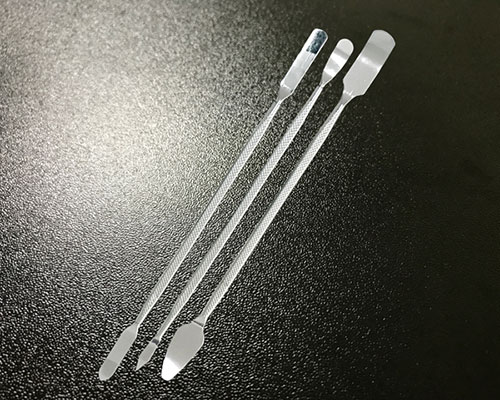

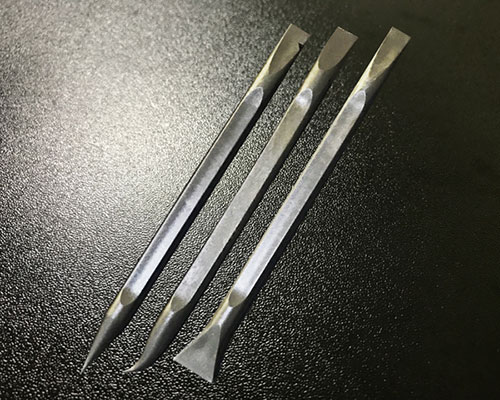

  • 3 x Dual head Metal Carbon steel
  • 4 x Plastic guitar picks

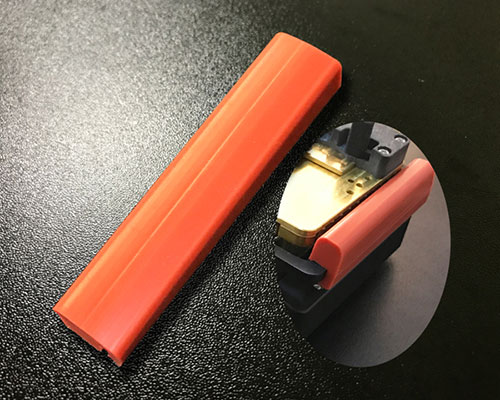

• 1 x Potective sleeve (Red Color)

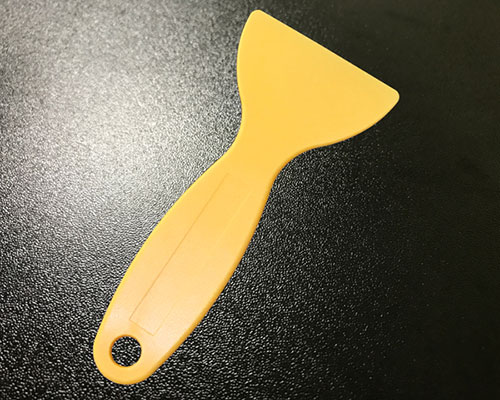

• 1 x Scaper (Yellow Color)

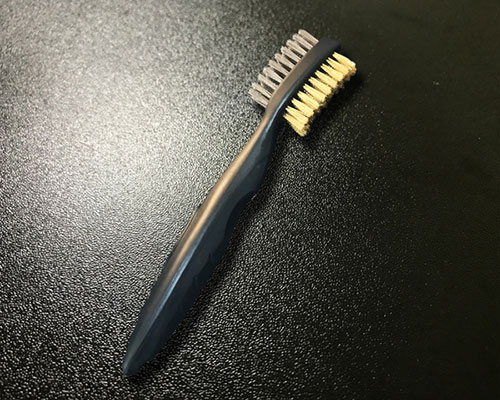

• 1 x Cleaning Brush
• 1 x Power Cable
• 1 x Ground cable
• 1 x AB USB Cable
