APPLE EFI2.9E - ISP SPI ADAPTER FOR HDBOX FOR iCLOUD PASSWORD UNLOCKING | |
|
|
Description

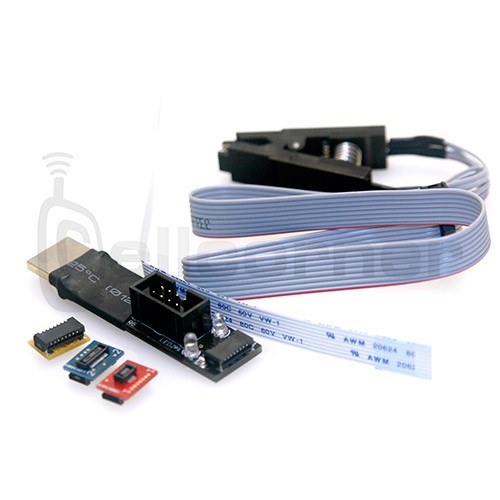

ISP adapter for HD Box used for Apple Mac iCloud password unlocking. It will help to unlock iCloud password in minutes.

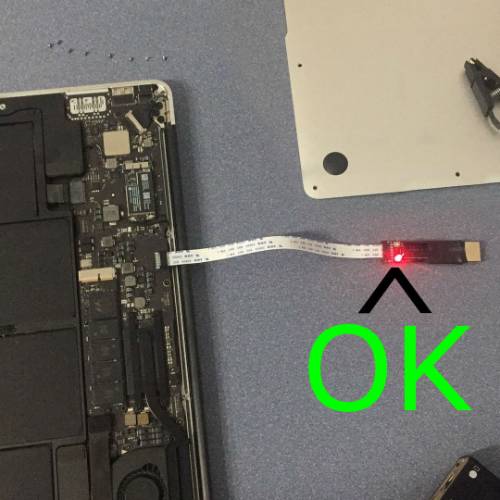

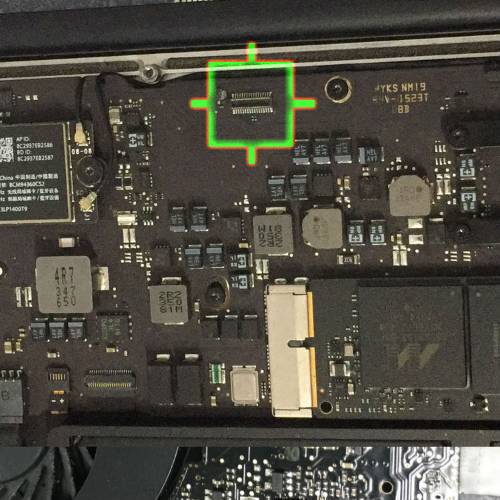

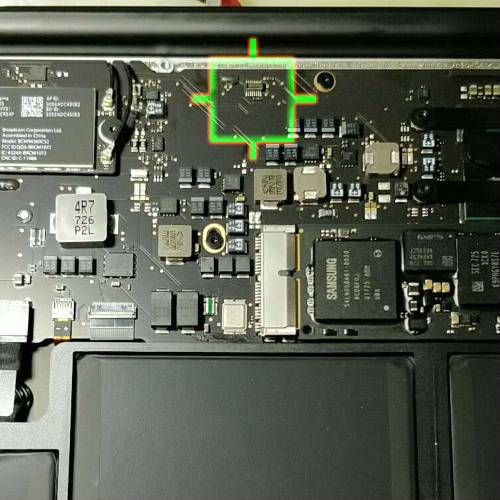

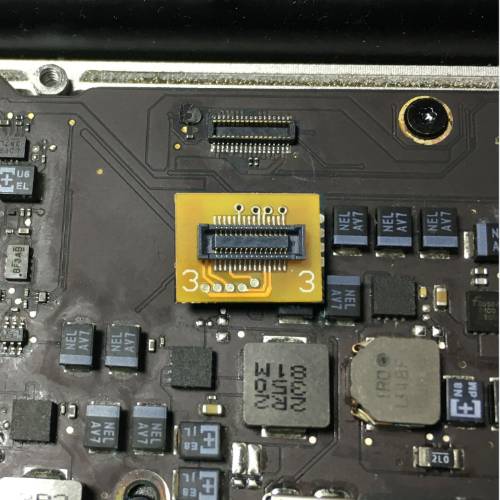

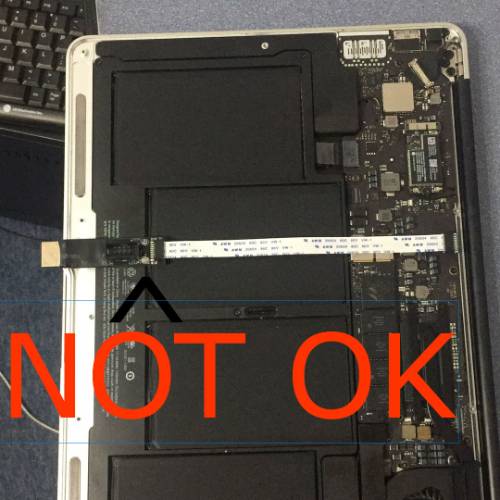

HDBOX using SPI Adaptor can read and write to chip either while chip is still attached to the logic board using ISP ( In System Programming ), or, if chip is desoldered then box can provide power to the chip and access it. When using ISP computer might protect the chip by driving write-protect pin of the chip, but in most cases, simply putting computer to sleep, and then wake it up will clear this hardware protection pin and write access also can be used.
|
ISP adapter functions
- Check if a firmware password is active, and if the computer is 2011 model or earlier then this password can be recovered and show in clear text, but if it is newer model then password is stored in another method and HDBOX can remove it by erasing the firmware password.
- Check if an iCloud lock is active on this computer, and HDBox can remove the account and the lock together, or just the lock or the account depending what the user wants.
- Can read the version and update Intel management engine, this zone is present on logic boards having intel chipsets and is useful if computer exhibit strange behavior, like stuck in a restart loop, playing the start sound, but not starting, etc.
- Using HDBOX manager, whole Image can read and saved in a compressed file format, and any changes made ( firmware password removal, icloud account/lock removal ) must be written back to chip using one of the two following methods:
- Write (Full), which will erase entire chip and write whole content back - great for example for heavily modified images, or for chip replacements.
- Write (Sync), will only update modified portions of the image using an smart algorithm to reduce the load on the chip.
- All read / write operations using HDBOX are performed using verify to ensure true and valid contents are used and there is no risk to corrupt the image inside the chip.
|
Supported Apple models by ISP SPI adapter
Macbook Air
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| MacBook Air “Core i7″ 2.2 13” (Early 2015) |
2.2 GHz Core i7 (I7-5650U) |
March 9, 2015 |
Model A1466 |
EMC 2925 |
| MacBook Air “Core i5″ 1.8 13” (2015/2017*) |
1.8 GHz Core i5 (I5-5350U) |
June 5, 2017 |
Model A1466 |
EMC 2925 |
| MacBook Air “Core i5″ 1.6 13” (Early 2015) |
1.6 GHz Core i5 (I5-5250U) |
March 9, 2015 |
Model A1466 |
EMC 2925 |
| MacBook Air “Core i7″ 2.2 11” (Early 2015) |
2.2 GHz Core i7 (I7-5650U) |
March 9, 2015 |
Model A1465 |
EMC 2924 |
| MacBook Air “Core i5″ 1.6 11” (Early 2015) |
1.6 GHz Core i5 (I5-5250U) |
March 9, 2015 |
Model A1465 |
EMC 2924 |
| MacBook Air “Core i7″ 1.7 13” (Early 2014) |
1.7 GHz Core i7 (I7-4650U) |
April 29, 2014 |
Model A1466 |
EMC 2632 |
| MacBook Air “Core i5″ 1.4 13” (Early 2014) |
1.4 GHz Core i5 (I5-4260U) |
April 29, 2014 |
Model A1466 |
EMC 2632 |
| MacBook Air “Core i7″ 1.7 11” (Early 2014) |
1.7 GHz Core i7 (I7-4650U) |
April 29, 2014 |
Model A1465 |
EMC 2631 |
| MacBook Air “Core i5″ 1.4 11” (Early 2014) |
1.4 GHz Core i5 (I5-4260U) |
April 29, 2014 |
Model A1465 |
EMC 2631 |
| MacBook Air “Core i7″ 1.7 13” (Mid-2013) |
1.7 GHz Core i7 (I7-4650U) |
June 10, 2013 |
Model A1466 |
EMC 2632 |
| MacBook Air “Core i5″ 1.3 13” (Mid-2013) |
1.3 GHz Core i5 (I5-4250U) |
June 10, 2013 |
Model A1466 |
EMC 2632 |
| MacBook Air “Core i7″ 1.7 11” (Mid-2013) |
1.7 GHz Core i7 (I7-4650U) |
June 10, 2013 |
Model A1465 |
EMC 2631 |
| MacBook Air “Core i5″ 1.3 11” (Mid-2013) |
1.3 GHz Core i5 (I5-4250U) |
June 10, 2013 |
Model A1465 |
EMC 2631 |
| MacBook Air “Core i7″ 2.0 13” (Mid-2012) |
2.0 GHz Core i7 (I7-3667U) |
June 11, 2012 |
Model A1466 |
EMC 2559 |
| MacBook Air “Core i5″ 1.8 13” (Mid-2012) |
1.8 GHz Core i5 (I5-3427U) |
June 11, 2012 |
Model A1466 |
EMC 2559 |
| MacBook Air “Core i5″ 1.7 13” (Edu Only) |
1.7 GHz Core i5 (I5-3317U) |
September 12, 2012 |
Model A1466 |
EMC 2559 |
| MacBook Air “Core i7″ 2.0 11” (Mid-2012) |
2.0 GHz Core i7 (I7-3667U) |
June 11, 2012 |
Model A1465 |
EMC 2558 |
| MacBook Air “Core i5″ 1.7 11” (Mid-2012) |
1.7 GHz Core i5 (I5-3317U) |
June 11, 2012 |
Model A1465 |
EMC 2558 |
| MacBook Air “Core i5″ 1.6 13” (Edu Only) |
1.6 GHz Core i5 (I5-2467M) |
February 10, 2012 |
Model A1369 |
EMC 2469 |
| MacBook Air “Core i7″ 1.8 13” (Mid-2011) |
1.8 GHz Core i7 (I7-2677M) |
July 20, 2011 |
Model A1369 |
EMC 2469 |
| MacBook Air “Core i5″ 1.7 13” (Mid-2011) |
1.7 GHz Core i5 (I5-2557M) |
July 20, 2011 |
Model A1369 |
EMC 2469 |
| MacBook Air “Core i7″ 1.8 11” (Mid-2011) |
1.8 GHz Core i7 (I7-2677M) |
July 20, 2011 |
Model A1370 |
EMC 2471 |
| MacBook Air “Core i5″ 1.6 11” (Mid-2011) |
1.6 GHz Core i5 (I5-2467M) |
July 20, 2011 |
Model A1370 |
EMC 2471 |
| MacBook Air “Core 2 Duo” 2.13 13″ (Late ’10) |
2.13 GHz Core 2 Duo (SL9600) |
October 20, 2010 |
Model A1369 |
EMC 2392 |
| MacBook Air “Core 2 Duo” 1.86 13″ (Late ’10) |
1.86 GHz Core 2 Duo (SL9400) |
October 20, 2010 |
Model A1369 |
EMC 2392 |
| MacBook Air “Core 2 Duo” 1.6 11″ (Late ’10) |
1.6 GHz Core 2 Duo (SU9600) |
October 20, 2010 |
Model A1370 |
EMC 2393 |
| MacBook Air “Core 2 Duo” 1.4 11″ (Late ’10) |
1.4 GHz Core 2 Duo (SU9400) |
October 20, 2010 |
Model A1370 |
EMC 2393 |
| MacBook Air “Core 2 Duo” 2.13 13″ (Mid-09) |
2.13 GHz Core 2 Duo (SL9600) |
June 8, 2009 |
Model A1304 |
EMC 2334 |
| MacBook Air “Core 2 Duo” 1.86 13″ (Mid-09) |
1.86 GHz Core 2 Duo (SL9400) |
June 8, 2009 |
Model A1304 |
EMC 2334 |
| MacBook Air “Core 2 Duo” 1.86 13″ (NVIDIA) |
1.86 GHz Core 2 Duo (SL9400) |
October 14, 2008 |
Model A1304 |
EMC 2253 |
| MacBook Air “Core 2 Duo” 1.6 13″ (NVIDIA) |
1.6 GHz Core 2 Duo (SL9300) |
October 14, 2008 |
Model A1304 |
EMC 2253 |
| MacBook Air “Core 2 Duo” 1.8 13″ (Original) |
1.8 GHz Core 2 Duo (P7700) |
January 15, 2008 |
Model A1237 |
EMC 2142 |
| MacBook Air “Core 2 Duo” 1.6 13″ (Original) |
1.6 GHz Core 2 Duo (P7500) |
January 15, 2008 |
Model A1237 |
EMC 2142 |
Macbook Pro
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| MacBook Pro “Core i7″ 3.1 15” |
Touch/Mid-2017 3.1 GHz Core i7 (I7-7920HQ) |
June 5, 2017 |
A1707 |
EMC 3162 |
| MacBook Pro “Core i7″ 2.9 15” |
Touch/Mid-2017 2.9 GHz Core i7 (I7-7820HQ) |
June 5, 2017 |
A1707 |
EMC 3162 |
| MacBook Pro “Core i7″ 2.8 15” |
Touch/Mid-2017 2.8 GHz Core i7 (I7-7700HQ) |
June 5, 2017 |
A1707 |
EMC 3162 |
| MacBook Pro “Core i7″ 3.5 13” |
Touch/Mid-2017 3.5 GHz Core i7 (I7-7567U) |
June 5, 2017 |
A1706 |
EMC 3163 |
| MacBook Pro “Core i5″ 3.3 13” |
Touch/Mid-2017 3.3 GHz Core i5 (I5-7287U) |
June 5, 2017 |
A1706 |
EMC 3163 |
| MacBook Pro “Core i5″ 3.1 13” |
Touch/Mid-2017 3.1 GHz Core i5 (I5-7267U) |
June 5, 2017 |
A1706 |
EMC 3163 |
| MacBook Pro “Core i7″ 2.5 13” |
Mid-2017 2.5 GHz Core i7 (I7-7660U) |
June 5, 2017 |
A1708 |
EMC 3164 |
| MacBook Pro “Core i5″ 2.3 13” |
Mid-2017 2.3 GHz Core i5 (I5-7360U) |
June 5, 2017 |
A1708 |
EMC 3164 |
| MacBook Pro “Core i7″ 2.9 15” |
Touch/Late 2016 2.9 GHz Core i7 (I7-6920HQ) |
October 27, 2016* |
A1707 |
EMC 3072 |
| MacBook Pro “Core i7″ 2.7 15” |
Touch/Late 2016 2.7 GHz Core i7 (I7-6820HQ) |
October 27, 2016* |
A1707 |
EMC 3072 |
| MacBook Pro “Core i7″ 2.6 15” |
Touch/Late 2016 2.6 GHz Core i7 (I7-6700HQ) |
October 27, 2016* |
A1707 |
EMC 3072 |
| MacBook Pro “Core i7″ 3.3 13” |
Touch/Late 2016 3.3 GHz Core i7 (I7-6567U) |
October 27, 2016* |
A1706 |
EMC 3071 |
| MacBook Pro “Core i5″ 3.1 13” |
Touch/Late 2016 3.1 GHz Core i5 (I5-6287U) |
October 27, 2016* |
A1706 |
EMC 3071 |
| MacBook Pro “Core i5″ 2.9 13” |
Touch/Late 2016 2.9 GHz Core i5 (I5-6267U) |
October 27, 2016* |
A1706 |
EMC 3071 |
| MacBook Pro “Core i7″ 2.4 13” |
Late 2016 2.4 GHz Core i7 (I7-6660U) |
October 27, 2016 |
A1708 |
EMC 2978 |
| MacBook Pro “Core i5″ 2.0 13” |
Late 2016 2.0 GHz Core i5 (I5-6360U) |
October 27, 2016 |
A1708 |
EMC 2978 |
| MacBook Pro “Core i7″ 2.8 15” Mid-2015 (DG) |
2.8 GHz Core i7 (I7-4980HQ) |
May 19, 2015 |
A1398 |
EMC 2910 |
| MacBook Pro “Core i7″ 2.5 15” Mid-2015 (DG) |
2.5 GHz Core i7 (I7-4870HQ) |
May 19, 2015 |
A1398 |
EMC 2910 |
| MacBook Pro “Core i7″ 2.8 15” Mid-2015 (IG) |
2.8 GHz Core i7 (I7-4980HQ) |
May 19, 2015 |
A1398 |
EMC 2909 |
| MacBook Pro “Core i7″ 2.5 15” Mid-2015 (IG) |
2.5 GHz Core i7 (I7-4870HQ) |
May 19, 2015 |
A1398 |
EMC 2909 |
| MacBook Pro “Core i7″ 2.2 15” Mid-2015 (IG) |
2.2 GHz Core i7 (I7-4770HQ) |
May 19, 2015 |
A1398 |
EMC 2909 |
| MacBook Pro “Core i7″ 3.1 13” |
Early 2015 3.1 GHz Core i7 (I7-5557U) |
March 9, 2015 |
A1502 |
EMC 2835 |
| MacBook Pro “Core i5″ 2.9 13” |
Early 2015 2.9 GHz Core i5 (I5-5287U) |
March 9, 2015 |
A1502 |
EMC 2835 |
| MacBook Pro “Core i5″ 2.7 13” |
Early 2015 2.7 GHz Core i5 (I5-5257U) |
March 9, 2015 |
A1502 |
EMC 2835 |
| MacBook Pro “Core i7″ 2.8 15” Mid-2014 (DG) |
2.8 GHz Core i7 (I7-4980HQ) |
July 29, 2014 |
A1398 |
EMC 2881 |
| MacBook Pro “Core i7″ 2.5 15” Mid-2014 (DG) |
2.5 GHz Core i7 (I7-4870HQ) |
July 29, 2014 |
A1398 |
EMC 2881 |
| MacBook Pro “Core i7″ 2.8 15” Mid-2014 (IG) |
2.8 GHz Core i7 (I7-4980HQ) |
July 29, 2014 |
A1398 |
EMC 2876 |
| MacBook Pro “Core i7″ 2.5 15” Mid-2014 (IG) |
2.5 GHz Core i7 (I7-4870HQ) |
July 29, 2014 |
A1398 |
EMC 2876 |
| MacBook Pro “Core i7″ 2.2 15” Mid-2014 (IG) |
2.2 GHz Core i7 (I7-4770HQ) |
July 29, 2014 |
A1398 |
EMC 2876 |
| MacBook Pro “Core i7″ 3.0 13” |
Mid-2014 3.0 GHz Core i7 (I7-4578U) |
July 29, 2014 |
A1502 |
EMC 2875 |
| MacBook Pro “Core i5″ 2.8 13” |
Mid-2014 2.8 GHz Core i5 (I5-4308U) |
July 29, 2014 |
A1502 |
EMC 2875 |
| MacBook Pro “Core i5″ 2.6 13” |
Mid-2014 2.6 GHz Core i5 (I5-4278U) |
July 29, 2014 |
A1502 |
EMC 2875 |
| MacBook Pro “Core i7″ 2.6 15” Late 2013 (DG) |
2.6 GHz Core i7 (I7-4960HQ) |
October 22, 2013 |
A1398 |
EMC 2745 |
| MacBook Pro “Core i7″ 2.3 15” Late 2013 (DG) |
2.3 GHz Core i7 (I7-4850HQ) |
October 22, 2013 |
A1398 |
EMC 2745 |
| MacBook Pro “Core i7″ 2.6 15” Late 2013 (IG) |
2.6 GHz Core i7 (I7-4960HQ) |
October 22, 2013 |
A1398 |
EMC 2674 |
| MacBook Pro “Core i7″ 2.3 15” Late 2013 (IG) |
2.3 GHz Core i7 (I7-4850HQ) |
October 22, 2013 |
A1398 |
EMC 2674 |
| MacBook Pro “Core i7″ 2.0 15” Late 2013 (IG) |
2.0 GHz Core i7 (I7-4750HQ) |
October 22, 2013 |
A1398 |
EMC 2674 |
| MacBook Pro “Core i7″ 2.8 13” |
Late 2013 2.8 GHz Core i7 (I7-4558U) |
October 22, 2013 |
A1502 |
EMC 2678 |
| MacBook Pro “Core i5″ 2.6 13” |
Late 2013 2.6 GHz Core i5 (I5-4288U) |
October 22, 2013 |
A1502 |
EMC 2678 |
| MacBook Pro “Core i5″ 2.4 13” |
Late 2013 2.4 GHz Core i5 (I5-4258U) |
October 22, 2013 |
A1502 |
EMC 2678 |
| MacBook Pro “Core i7″ 2.8 15” |
Early 2013 2.8 GHz Core i7 (I7-3840QM) |
February 13, 2013 |
A1398 |
EMC 2673 |
| MacBook Pro “Core i7″ 2.7 15” |
Early 2013 2.7 GHz Core i7 (I7-3740QM) |
February 13, 2013 |
A1398 |
EMC 2673 |
| MacBook Pro “Core i7″ 2.4 15” |
Early 2013 2.4 GHz Core i7 (I7-3635QM) |
February 13, 2013 |
A1398 |
EMC 2673 |
| MacBook Pro “Core i7″ 3.0 13” |
Early 2013 3.0 GHz Core i7 (I7-3540M) |
February 13, 2013 |
A1425 |
EMC 2672 |
| MacBook Pro “Core i5″ 2.6 13” |
Early 2013 2.6 GHz Core i5 (I5-3230M) |
February 13, 2013 |
A1425 |
EMC 2672 |
| MacBook Pro “Core i7″ 2.9 13” |
Retina 2012 2.9 GHz Core i7 (I7-3520M) |
October 23, 2012 |
A1425 |
EMC 2557 |
| MacBook Pro “Core i5″ 2.5 13” |
Retina 2012 2.5 GHz Core i5 (I5-3210M) |
October 23, 2012 |
A1425 |
EMC 2557 |
| MacBook Pro “Core i7″ 2.7 15” |
Retina 2012 2.7 GHz Core i7 (I7-3820QM) |
June 11, 2012 |
A1398 |
EMC 2512 |
| MacBook Pro “Core i7″ 2.6 15” |
Retina 2012 2.6 GHz Core i7 (I7-3720QM) |
June 11, 2012 |
A1398 |
EMC 2512 |
| MacBook Pro “Core i7″ 2.3 15” |
Retina 2012 2.3 GHz Core i7 (I7-3615QM) |
June 11, 2012 |
A1398 |
EMC 2512 |
| MacBook Pro “Core i7″ 2.7 15” |
Mid-2012 2.7 GHz Core i7 (I7-3820QM) |
June 11, 2012 |
A1286 |
EMC 2556* |
| MacBook Pro “Core i7″ 2.6 15” |
Mid-2012 2.6 GHz Core i7 (I7-3720QM) |
June 11, 2012 |
A1286 |
EMC 2556* |
| MacBook Pro “Core i7″ 2.3 15” |
Mid-2012 2.3 GHz Core i7 (I7-3615QM) |
June 11, 2012 |
A1286 |
EMC 2556* |
| MacBook Pro “Core i7″ 2.9 13” |
Mid-2012 2.9 GHz Core i7 (I7-3520M) |
June 11, 2012 |
A1278 |
EMC 2554* |
| MacBook Pro “Core i5″ 2.5 13” |
Mid-2012 2.5 GHz Core i5 (I5-3210M) |
June 11, 2012 |
A1278 |
EMC 2554* |
| MacBook Pro “Core i7″ 2.5 17” |
Late 2011 2.5 GHz Core i7 (I7-2860QM) |
October 24, 2011 |
A1297 |
EMC 2564* |
| MacBook Pro “Core i7″ 2.4 17” |
Late 2011 2.4 GHz Core i7 (I7-2760QM) |
October 24, 2011 |
A1297 |
EMC 2564* |
| MacBook Pro “Core i7″ 2.5 15” |
Late 2011 2.5 GHz Core i7 (I7-2860QM) |
October 24, 2011 |
A1286 |
EMC 2563* |
| MacBook Pro “Core i7″ 2.4 15” |
Late 2011 2.4 GHz Core i7 (I7-2760QM) |
October 24, 2011 |
A1286 |
EMC 2563* |
| MacBook Pro “Core i7″ 2.2 15” |
Late 2011 2.2 GHz Core i7 (I7-2675QM) |
October 24, 2011 |
A1286 |
EMC 2563* |
| MacBook Pro “Core i7″ 2.8 13” |
Late 2011 2.8 GHz Core i7 (I7-2640M) |
October 24, 2011 |
A1278 |
EMC 2555* |
| MacBook Pro “Core i5″ 2.4 13” |
Late 2011 2.4 GHz Core i5 (I5-2435M) |
October 24, 2011 |
A1278 |
EMC 2555* |
| MacBook Pro “Core i7″ 2.3 17” |
Early 2011 2.3 GHz Core i7 (I7-2820QM) |
February 24, 2011 |
A1297 |
EMC 2352-1* |
| MacBook Pro “Core i7″ 2.2 17” |
Early 2011 2.2 GHz Core i7 (I7-2720QM) |
February 24, 2011 |
A1297 |
EMC 2352-1* |
| MacBook Pro “Core i7″ 2.3 15” |
Early 2011 2.3 GHz Core i7 (I7-2820QM) |
February 24, 2011 |
A1286 |
EMC 2353-1* |
| MacBook Pro “Core i7″ 2.2 15” |
Early 2011 2.2 GHz Core i7 (I7-2720QM) |
February 24, 2011 |
A1286 |
EMC 2353-1* |
| MacBook Pro “Core i7″ 2.0 15” |
Early 2011 2.0 GHz Core i7 (I7-2635QM) |
February 24, 2011 |
A1286 |
EMC 2353-1* |
| MacBook Pro “Core i7″ 2.7 13” |
Early 2011 2.7 GHz Core i7 (I7-2620M) |
February 24, 2011 |
A1278 |
EMC 2419* |
| MacBook Pro “Core i5″ 2.3 13” |
Early 2011 2.3 GHz Core i5 (I5-2415M) |
February 24, 2011 |
A1278 |
EMC 2419* |
| MacBook Pro “Core i7″ 2.8 17” |
Mid-2010 2.8 GHz Core i7 (I7-640M) |
October 20, 2010 |
A1297 |
EMC 2352* |
| MacBook Pro “Core i7″ 2.66 17” |
Mid-2010 2.66 GHz Core i7 (I7-620M) |
April 13, 2010 |
A1297 |
EMC 2352* |
| MacBook Pro “Core i5″ 2.53 17” |
Mid-2010 2.53 GHz Core i5 (I5-540M) |
April 13, 2010 |
A1297 |
EMC 2352* |
| MacBook Pro “Core i7″ 2.8 15” |
Mid-2010 2.8 GHz Core i7 (I7-640M) |
October 20, 2010 |
A1286 |
EMC 2353* |
| MacBook Pro “Core i7″ 2.66 15” |
Mid-2010 2.66 GHz Core i7 (I7-620M) |
April 13, 2010 |
A1286 |
EMC 2353* |
| MacBook Pro “Core i5″ 2.53 15” |
Mid-2010 2.53 GHz Core i5 (I5-540M) |
April 13, 2010 |
A1286 |
EMC 2353* |
| MacBook Pro “Core i5″ 2.4 15” |
Mid-2010 2.4 GHz Core i5 (I5-520M) |
April 13, 2010 |
A1286 |
EMC 2353* |
| MacBook Pro “Core 2 Duo” 2.66 13″ |
Mid-2010 2.66 GHz Core 2 Duo (P8800) |
April 13, 2010 |
A1278 |
EMC 2351* |
| MacBook Pro “Core 2 Duo” 2.4 13″ |
Mid-2010 2.4 GHz Core 2 Duo (P8600) |
April 13, 2010 |
A1278 |
EMC 2351* |
| MacBook Pro “Core 2 Duo” 3.06 17″ |
Mid-2009 3.06 GHz Core 2 Duo (T9900) |
June 8, 2009 |
A1297 |
EMC 2329* |
| MacBook Pro “Core 2 Duo” 2.8 17″ |
Mid-2009 2.8 GHz Core 2 Duo (T9600) |
June 8, 2009 |
A1297 |
EMC 2329* |
| MacBook Pro “Core 2 Duo” 3.06 15″ (SD) |
3.06 GHz Core 2 Duo (T9900) |
June 8, 2009 |
A1286 |
EMC 2325* |
| MacBook Pro “Core 2 Duo” 2.8 15″ (SD) |
2.8 GHz Core 2 Duo (T9600) |
June 8, 2009 |
A1286 |
EMC 2325* |
| MacBook Pro “Core 2 Duo” 2.66 15″ (SD) |
2.66 GHz Core 2 Duo (P8800) |
June 8, 2009 |
A1286 |
EMC 2325* |
| MacBook Pro “Core 2 Duo” 2.53 15″ (SD) |
2.53 GHz Core 2 Duo (P8700) |
June 8, 2009 |
A1286 |
EMC 2324* |
| MacBook Pro “Core 2 Duo” 2.53 13″ (SD/FW) |
2.53 GHz Core 2 Duo (P8700) |
June 8, 2009 |
A1278 |
EMC 2326* |
| MacBook Pro “Core 2 Duo” 2.26 13″ (SD/FW) |
2.26 GHz Core 2 Duo (P7550*) |
June 8, 2009 |
A1278 |
EMC 2326* |
| MacBook Pro “Core 2 Duo” 2.93 15″ (Unibody) |
2.93 GHz Core 2 Duo (T9800) |
March 3, 2009 |
A1286 |
EMC 2255 |
| MacBook Pro “Core 2 Duo” 2.66 15″ (Unibody) |
2.66 GHz Core 2 Duo (T9550) |
March 3, 2009 |
A1286 |
EMC 2255 |
| MacBook Pro “Core 2 Duo” 2.93 17″ (Unibody) |
2.93 GHz Core 2 Duo (T9800) |
January 6, 2009 |
A1297 |
EMC 2272 |
| MacBook Pro “Core 2 Duo” 2.66 17″ (Unibody) |
2.66 GHz Core 2 Duo (T9550) |
January 6, 2009 |
A1297 |
EMC 2272 |
| MacBook Pro “Core 2 Duo” 2.8 15″ (Unibody) |
2.8 GHz Core 2 Duo (T9600) |
October 14, 2008 |
A1286 |
EMC 2255 |
| MacBook Pro “Core 2 Duo” 2.53 15″ (Unibody) |
2.53 GHz Core 2 Duo (T9400) |
October 14, 2008 |
A1286 |
EMC 2255 |
| MacBook Pro “Core 2 Duo” 2.4 15″ (Unibody) |
2.4 GHz Core 2 Duo (P8600) |
October 14, 2008 |
A1286 |
EMC 2255 |
| MacBook Pro “Core 2 Duo” 2.6 17″ (08) |
2.6 GHz Core 2 Duo (T9500) |
February 26, 2008* |
A1261 |
EMC 2199 |
| MacBook Pro “Core 2 Duo” 2.5 17″ (08) |
2.5 GHz Core 2 Duo (T9300) |
February 26, 2008* |
A1261 |
EMC 2199 |
| MacBook Pro “Core 2 Duo” 2.6 15″ (08) |
2.6 GHz Core 2 Duo (T9500) |
February 26, 2008 |
A1260 |
EMC 2198 |
| MacBook Pro “Core 2 Duo” 2.5 15″ (08) |
2.5 GHz Core 2 Duo (T9300) |
February 26, 2008 |
A1260 |
EMC 2198 |
| MacBook Pro “Core 2 Duo” 2.4 15″ (08) |
2.4 GHz Core 2 Duo (T8300) |
February 26, 2008 |
A1260 |
EMC 2198 |
| MacBook Pro “Core 2 Duo” 2.6 17″ (SR) |
2.6 GHz Core 2 Duo (T7800) |
November 1, 2007 |
A1229 |
EMC 2137 |
| MacBook Pro “Core 2 Duo” 2.4 17″ (SR) |
2.4 GHz Core 2 Duo (T7700) |
June 5, 2007 |
A1229 |
EMC 2137 |
| MacBook Pro “Core 2 Duo” 2.6 15″ (SR) |
2.6 GHz Core 2 Duo (T7800) |
November 1, 2007 |
A1226 |
EMC 2136 |
| MacBook Pro “Core 2 Duo” 2.4 15″ (SR) |
2.4 GHz Core 2 Duo (T7700) |
June 5, 2007 |
A1226 |
EMC 2136 |
| MacBook Pro “Core 2 Duo” 2.2 15″ (SR) |
2.2 GHz Core 2 Duo (T7500) |
June 5, 2007 |
A1226 |
EMC 2136 |
| MacBook Pro “Core 2 Duo” 2.33 17″ |
2.33 GHz Core 2 Duo (T7600) |
October 24, 2006 |
A1212 |
EMC N/A |
| MacBook Pro “Core 2 Duo” 2.33 15″ |
2.33 GHz Core 2 Duo (T7600) |
October 24, 2006 |
A1211 |
EMC 2120 |
| MacBook Pro “Core 2 Duo” 2.16 15″ |
2.16 GHz Core 2 Duo (T7400) |
October 24, 2006 |
A1211 |
EMC 2120 |
| MacBook Pro “Core Duo” 2.16 17″ |
2.16 GHz Core Duo (T2600) |
April 24, 2006 |
A1151 |
EMC 2102 |
| MacBook Pro “Core Duo” 2.16 15″ |
2.16 GHz Core Duo (T2600) |
February 14, 2006* |
A1150 |
EMC 2101 |
| MacBook Pro “Core Duo” 2.0 15″ |
2.0 GHz Core Duo (T2500) |
February 14, 2006 |
A1150 |
EMC 2101 |
| MacBook Pro “Core Duo” 1.83 15″ |
1.83 GHz Core Duo (T2400) |
January 10, 2006 |
A1150 |
EMC 2101 |
| MacBook Pro “Core Duo” 1.67 15″ |
1.67 GHz Core Duo (L2400) |
January 10, 2006* |
A1150 |
EMC 2101 |
Macbook Pro
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| MacBook “Core i7″ 1.4 12” (Mid-2017) |
1.4 GHz Core i7 (I7-7Y75) |
June 5, 2017 |
A1534 |
EMC 3099 |
| MacBook “Core i5″ 1.3 12” (Mid-2017) |
1.3 GHz Core i5 (I5-7Y54) |
June 5, 2017 |
A1534 |
EMC 3099 |
| MacBook “Core m3″ 1.2 12” (Mid-2017) |
1.2 GHz Core m3 (M3-7Y32) |
June 5, 2017 |
A1534 |
EMC 3099 |
| MacBook “Core m7″ 1.3 12” (Early 2016) |
1.3 GHz Core m7 (M7-6Y75) |
April 19, 2016 |
A1534 |
EMC 2991 |
| MacBook “Core m5″ 1.2 12” (Early 2016) |
1.2 GHz Core m5 (M5-6Y54) |
April 19, 2016 |
A1534 |
EMC 2991 |
| MacBook “Core m3″ 1.1 12” (Early 2016) |
1.1 GHz Core m3 (M3-6Y30) |
April 19, 2016 |
A1534 |
EMC 2991 |
| MacBook “Core M” 1.3 12″ (Early 2015) |
1.3 GHz Core M (M-5Y71) |
March 9, 2015* |
A1534 |
EMC 2746 |
| MacBook “Core M” 1.2 12″ (Early 2015) |
1.2 GHz Core M (M-5Y51) |
March 9, 2015* |
A1534 |
EMC 2746 |
| MacBook “Core M” 1.1 12″ (Early 2015) |
1.1 GHz Core M (M-5Y31) |
March 9, 2015* |
A1534 |
EMC 2746 |
| MacBook “Core 2 Duo” 2.4 13″ (Mid-2010) |
2.4 GHz Core 2 Duo (P8600) |
May 18, 2010 |
A1342 |
EMC 2395* |
| MacBook “Core 2 Duo” 2.26 13″ (Uni/Late 09) |
2.26 GHz Core 2 Duo (P7550) |
October 20, 2009 |
A1342 |
EMC 2350* |
| MacBook “Core 2 Duo” 2.13 13″ (White-09) |
2.13 GHz Core 2 Duo (P7450) |
May 27, 2009 |
A1181 |
EMC 2330 |
| MacBook “Core 2 Duo” 2.0 13″ (White-09) |
2.0 GHz Core 2 Duo (P7350) |
January 20, 2009 |
A1181 |
EMC 2300 |
| MacBook “Core 2 Duo” 2.4 13″ (Unibody) |
2.4 GHz Core 2 Duo (P8600) |
October 14, 2008 |
A1278 |
EMC 2254 |
| MacBook “Core 2 Duo” 2.0 13″ (Unibody) |
2.0 GHz Core 2 Duo (P7350) |
October 14, 2008 |
A1278 |
EMC 2254 |
| MacBook “Core 2 Duo” 2.4 13″ (Black-08) |
2.4 GHz Core 2 Duo (T8300) |
February 26, 2008 |
A1181 |
EMC 2242 |
| MacBook “Core 2 Duo” 2.4 13″ (White-08) |
2.4 GHz Core 2 Duo (T8300) |
February 26, 2008 |
A1181 |
EMC 2242 |
| MacBook “Core 2 Duo” 2.1 13″ (White-08) |
2.1 GHz Core 2 Duo (T8100) |
February 26, 2008* |
A1181 |
EMC 2242 |
| MacBook “Core 2 Duo” 2.2 13″ (Black-SR) |
2.2 GHz Core 2 Duo (T7500) |
November 1, 2007 |
A1181 |
EMC 2200 |
| MacBook “Core 2 Duo” 2.2 13″ (White-SR) |
2.2 GHz Core 2 Duo (T7500) |
November 1, 2007 |
A1181 |
EMC 2200 |
| MacBook “Core 2 Duo” 2.0 13″ (White-SR) |
2.0 GHz Core 2 Duo (T7300) |
November 1, 2007 |
A1181 |
EMC 2200 |
| MacBook “Core 2 Duo” 2.16 13″ (Black) |
2.16 GHz Core 2 Duo (T7400) |
May 15, 2007 |
A1181 |
EMC 2139 |
| MacBook “Core 2 Duo” 2.16 13″ (White) |
2.16 GHz Core 2 Duo (T7400) |
May 15, 2007 |
A1181 |
EMC 2139 |
| MacBook “Core 2 Duo” 2.0 13″ (White/07) |
2.0 GHz Core 2 Duo (T7200) |
May 15, 2007 |
A1181 |
EMC 2139 |
| MacBook “Core 2 Duo” 2.0 13″ (Black) |
2.0 GHz Core 2 Duo (T7200) |
November 8, 2006 |
A1181 |
EMC 2121 |
| MacBook “Core 2 Duo” 2.0 13″ (White/06) |
2.0 GHz Core 2 Duo (T7200) |
November 8, 2006 |
A1181 |
EMC 2121 |
| MacBook “Core 2 Duo” 1.83 13″ |
1.83 GHz Core 2 Duo (T5600) |
November 8, 2006 |
A1181 |
EMC 2121 |
| MacBook “Core Duo” 2.0 13″ (Black) |
2.0 GHz Core Duo (T2500) |
May 16, 2006 |
A1181 |
EMC 2092 |
| MacBook “Core Duo” 2.0 13″ (White) |
2.0 GHz Core Duo (T2500) |
May 16, 2006 |
A1181 |
EMC 2092 |
| MacBook “Core Duo” 1.83 13″ |
1.83 GHz Core Duo (T2400) |
May 16, 2006 |
A1181 |
EMC 2092 |
iMac Pro
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| iMac Pro “18-Core” 2.3 27-Inch (5K, Late 2017) |
2.3 GHz 18-Core Xeon W-2195* |
December 14, 2017* |
A1862* |
EMC 3144* |
| iMac Pro “14-Core” 2.5 27-Inch (5K, Late 2017) |
2.5 GHz 14-Core Xeon W-2175* |
December 14, 2017* |
A1862* |
EMC 3144* |
| iMac Pro “10-Core” 3.0 27-Inch (5K, Late 2017) |
3.0 GHz 10-Core Xeon W-2155* |
December 14, 2017* |
A1862* |
EMC 3144* |
| iMac Pro “8-Core” 3.2 27-Inch (5K, Late 2017) |
3.2 GHz 8-Core Xeon W-2145* |
December 14, 2017* |
A1862* |
EMC 3144* |
iMac
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| iMac “Core i7” 4.2 27-Inch (5K, Mid-2017) |
4.2 GHz Core i7 (I7-7700K) |
June 5, 2017 |
A1419 |
EMC 3070 |
| iMac “Core i5” 3.8 27-Inch (5K, Mid-2017) |
3.8 GHz Core i5 (I5-7600K) |
June 5, 2017 |
A1419 |
EMC 3070 |
| iMac “Core i5” 3.5 27-Inch (5K, Mid-2017) |
3.5 GHz Core i5 (I5-7600) |
June 5, 2017 |
A1419 |
EMC 3070 |
| iMac “Core i5” 3.4 27-Inch (5K, Mid-2017) |
3.4 GHz Core i5 (I5-7500) |
June 5, 2017 |
A1419 |
EMC 3070 |
| iMac “Core i7” 3.6 21.5-Inch (4K, Mid-2017) |
3.6 GHz Core i7 (I7-7700) |
June 5, 2017 |
A1418 |
EMC 3069 |
| iMac “Core i5” 3.4 21.5-Inch (4K, Mid-2017) |
3.4 GHz Core i5 (I5-7500) |
June 5, 2017 |
A1418 |
EMC 3069 |
| iMac “Core i5” 3.0 21.5-Inch (4K, Mid-2017) |
3.0 GHz Core i5 (I5-7400) |
June 5, 2017 |
A1418 |
EMC 3069 |
| iMac “Core i5” 2.3 21.5-Inch (Mid-2017) |
2.3 GHz Core i5 (I5-7360U) |
June 5, 2017 |
A1418 |
EMC 3068 |
| iMac “Core i7” 4.0 27-Inch (5K, Late 2015) |
4.0 GHz Core i7 (I7-6700K) |
October 13, 2015 |
A1419 |
EMC 2834 |
| iMac “Core i5” 3.3 27-Inch (5K, Late 2015) |
3.3 GHz Core i5 (I5-6600) |
October 13, 2015 |
A1419 |
EMC 2834 |
| iMac “Core i5” 3.2 27-Inch (5K, Late 2015) |
3.2 GHz Core i5 (I5-6500) |
October 13, 2015 |
A1419 |
EMC 2834 |
| iMac “Core i7” 3.3 21.5-Inch (4K, Late 2015) |
3.3 GHz Core i7 (I7-5775R) |
October 13, 2015 |
A1418 |
EMC 2833 |
| iMac “Core i5” 3.1 21.5-Inch (4K, Late 2015) |
3.1 GHz Core i5 (I5-5675R) |
October 13, 2015 |
A1418 |
EMC 2833 |
| iMac “Core i5” 2.8 21.5-Inch (Late 2015) |
2.8 GHz Core i5 (I5-5575R) |
October 13, 2015 |
A1418 |
EMC 2889 |
| iMac “Core i5” 1.6 21.5-Inch (Late 2015) |
1.6 GHz Core i5 (I5-5250U) |
October 13, 2015 |
A1418 |
EMC 2889 |
| iMac “Core i5” 3.3 27-Inch (5K, Mid-2015) |
3.3 GHz Core i5 (I5-4590) |
May 19, 2015 |
A1419 |
EMC 2806 |
| iMac “Core i7” 4.0 27-Inch (5K, Late 2014) |
4.0 GHz Core i7 (I7-4790K) |
October 16, 2014* |
A1419 |
EMC 2806 |
| iMac “Core i5” 3.5 27-Inch (5K, Late 2014) |
3.5 GHz Core i5 (I5-4690) |
October 16, 2014* |
A1419 |
EMC 2806 |
| iMac “Core i5” 1.4 21.5-Inch (Mid-2014) |
1.4 GHz Core i5 (I5-4260U) |
June 18, 2014 |
A1418 |
EMC 2805 |
| iMac “Core i7” 3.5 27-Inch (Late 2013) |
3.5 GHz Core i7 (I7-4771) |
September 24, 2013 |
A1419 |
EMC 2639 |
| iMac “Core i5” 3.4 27-Inch (Late 2013) |
3.4 GHz Core i5 (I5-4670) |
September 24, 2013 |
A1419 |
EMC 2639 |
| iMac “Core i5” 3.2 27-Inch (Late 2013) |
3.2 GHz Core i5 (I5-4570) |
September 24, 2013 |
A1419 |
EMC 2639 |
| iMac “Core i7” 3.1 21.5-Inch (Late 2013) |
3.1 GHz Core i7 (I7-4770S) |
September 24, 2013 |
A1418 |
EMC 2742 |
| iMac “Core i5” 2.9 21.5-Inch (Late 2013) |
2.9 GHz Core i5 (I5-4570S) |
September 24, 2013 |
A1418 |
EMC 2742 |
| iMac “Core i5” 2.7 21.5-Inch (Late 2013) |
2.7 GHz Core i5 (I5-4570R) |
September 24, 2013 |
A1418 |
EMC 2638 |
| iMac “Core i3” 3.3 21.5-Inch (Early 2013) |
3.3 GHz Core i3 (I3-3225) |
March 5, 2013 |
A1418 |
EMC 2545 |
| iMac “Core i7” 3.4 27-Inch (Late 2012) |
3.4 GHz Core i7 (I7-3770) |
October 23, 2012 |
A1419 |
EMC 2546 |
| iMac “Core i5” 3.2 27-Inch (Late 2012) |
3.2 GHz Core i5 (I5-3470) |
October 23, 2012 |
A1419 |
EMC 2546 |
| iMac “Core i5” 2.9 27-Inch (Late 2012) |
2.9 GHz Core i5 (I5-3470S) |
October 23, 2012 |
A1419 |
EMC 2546 |
| iMac “Core i7” 3.1 21.5-Inch (Late 2012) |
3.1 GHz Core i7 (I7-3770S) |
October 23, 2012 |
A1418 |
EMC 2544 |
| iMac “Core i5” 2.9 21.5-Inch (Late 2012) |
2.9 GHz Core i5 (I5-3470S) |
October 23, 2012 |
A1418 |
EMC 2544 |
| iMac “Core i5” 2.7 21.5-Inch (Late 2012) |
2.7 GHz Core i5 (I5-3330S) |
October 23, 2012 |
A1418 |
EMC 2544 |
| iMac “Core i3” 3.1 21.5-Inch (Late 2011) |
3.1 GHz Core i3 (I3-2100) |
August 8, 2011 |
A1311 |
EMC 2496 |
| iMac “Core i7” 3.4 27-Inch (Mid-2011) |
3.4 GHz Core i7 (I7-2600) |
May 3, 2011 |
A1312 |
EMC 2429 |
| iMac “Core i5” 3.1 27-Inch (Mid-2011) |
3.1 GHz Core i5 (I5-2400) |
May 3, 2011 |
A1312 |
EMC 2429 |
| iMac “Core i5” 2.7 27-Inch (Mid-2011) |
2.7 GHz Core i5 (I5-2500S) |
May 3, 2011 |
A1312 |
EMC 2429 |
| iMac “Core i7” 2.8 21.5-Inch (Mid-2011) |
2.8 GHz Core i7 (I7-2600S) |
May 3, 2011 |
A1311 |
EMC 2428 |
| iMac “Core i5” 2.7 21.5-Inch (Mid-2011) |
2.7 GHz Core i5 (I5-2500S) |
May 3, 2011 |
A1311 |
EMC 2428 |
| iMac “Core i5” 2.5 21.5-Inch (Mid-2011) |
2.5 GHz Core i5 (I5-2400S) |
May 3, 2011 |
A1311 |
EMC 2428 |
| iMac “Core i7” 2.93 27-Inch (Mid-2010) |
2.93 GHz Core i7 (I7-870) |
July 27, 2010 |
A1312 |
EMC 2390 |
| iMac “Core i5” 3.6 27-Inch (Mid-2010) |
3.6 GHz Core i5 (I5-680) |
July 27, 2010 |
A1312 |
EMC 2390 |
| iMac “Core i5” 2.8 27-Inch (Mid-2010) |
2.8 GHz Core i5 (I5-760) |
July 27, 2010 |
A1312 |
EMC 2390 |
| iMac “Core i3” 3.2 27-Inch (Mid-2010) |
3.2 GHz Core i3 (I3-550) |
July 27, 2010 |
A1312 |
EMC 2390 |
| iMac “Core i5” 3.6 21.5-Inch (Mid-2010) |
3.6 GHz Core i5 (I5-680) |
July 27, 2010 |
A1311 |
EMC 2389 |
| iMac “Core i3” 3.2 21.5-Inch (Mid-2010) |
3.2 GHz Core i3 (I3-550) |
July 27, 2010 |
A1311 |
EMC 2389 |
| iMac “Core i3” 3.06 21.5-Inch (Mid-2010) |
3.06 GHz Core i3 (I3-540) |
July 27, 2010 |
A1311 |
EMC 2389 |
| iMac “Core i7” 2.8 27-Inch (Late 2009) |
2.8 GHz Core i7 (I7-860) |
October 20, 2009 |
A1312 |
EMC 2374 |
| iMac “Core i5” 2.66 27-Inch (Late 2009) |
2.66 GHz Core i5 (I5-750) |
October 20, 2009 |
A1312 |
EMC 2374 |
| iMac “Core 2 Duo” 3.33 27-Inch (Late 2009) |
3.33 GHz Core 2 Duo (E8600) |
October 20, 2009 |
A1312 |
EMC 2309 |
| iMac “Core 2 Duo” 3.06 27-Inch (Late 2009) |
3.06 GHz Core 2 Duo (E7600) |
October 20, 2009 |
A1312 |
EMC 2309 |
| iMac “Core 2 Duo” 3.33 21.5-Inch (Late 2009) |
3.33 GHz Core 2 Duo (E8600) |
October 20, 2009 |
A1311 |
EMC 2308 |
| iMac “Core 2 Duo” 3.06 21.5-Inch (Late 2009) |
3.06 GHz Core 2 Duo (E7600) |
October 20, 2009 |
A1311 |
EMC 2308 |
| iMac “Core 2 Duo” 2.26 20-Inch (Mid-2009) |
2.26 GHz Core 2 Duo (P7550) |
March 4, 2010* |
A1224 |
EMC 2316 |
| iMac “Core 2 Duo” 2.0 20-Inch (Mid-2009) |
2.0 GHz Core 2 Duo (P7350) |
April 7, 2009 |
A1224 |
EMC 2266 |
| iMac “Core 2 Duo” 3.06 24-Inch (Early 2009) |
3.06 GHz Core 2 Duo (E8435) |
March 3, 2009 |
A1225 |
EMC 2267/2134* |
| iMac “Core 2 Duo” 2.93 24-Inch (Early 2009) |
2.93 GHz Core 2 Duo (E8335) |
March 3, 2009 |
A1225 |
EMC 2267 |
| iMac “Core 2 Duo” 2.66 24-Inch (Early 2009) |
2.66 GHz Core 2 Duo (E8135) |
March 3, 2009 |
A1225 |
EMC 2267 |
| iMac “Core 2 Duo” 2.66 20-Inch (Early 2009) |
2.66 GHz Core 2 Duo (E8135) |
March 3, 2009 |
A1224 |
EMC 2266 |
| iMac “Core 2 Duo” 3.06 24-Inch (Early 2008) |
3.06 GHz Core 2 Duo (E8435) |
April 28, 2008 |
A1225 |
EMC 2211 |
| iMac “Core 2 Duo” 2.8 24-Inch (Early 2008) |
2.8 GHz Core 2 Duo (E8235) |
April 28, 2008 |
A1225 |
EMC 2211 |
| iMac “Core 2 Duo” 2.66 20-Inch (Early 2008) |
2.66 GHz Core 2 Duo (E8335) |
April 28, 2008 |
A1224 |
EMC 2210 |
| iMac “Core 2 Duo” 2.4 20-Inch (Early 2008) |
2.4 GHz Core 2 Duo (E8135) |
April 28, 2008 |
A1224 |
EMC 2210 |
| iMac “Core 2 Extreme” 2.8 24-Inch (Al) |
2.8 GHz Core 2 Extreme* (X7900) |
August 7, 2007 |
A1225 |
EMC 2134 |
| iMac “Core 2 Duo” 2.4 24-Inch (Al) |
2.4 GHz Core 2 Duo (T7700) |
August 7, 2007 |
A1225 |
EMC 2134 |
| iMac “Core 2 Duo” 2.4 20-Inch (Al) |
2.4 GHz Core 2 Duo (T7700) |
August 7, 2007 |
A1224 |
EMC 2133 |
| iMac “Core 2 Duo” 2.0 20-Inch (Al) |
2.0 GHz Core 2 Duo (T7300) |
August 7, 2007 |
A1224 |
EMC 2133 |
| iMac “Core 2 Duo” |
2.33 24-Inch 2.33 GHz Core 2 Duo (T7600) |
September 6, 2006 |
A1200 |
EMC 2111 |
| iMac “Core 2 Duo” |
2.16 24-Inch 2.16 GHz Core 2 Duo (T7400) |
September 6, 2006 |
A1200 |
EMC 2111 |
| iMac “Core 2 Duo” |
2.33 20-Inch 2.33 GHz Core 2 Duo (T7600) |
September 6, 2006 |
A1207 |
EMC 2118 |
| iMac “Core 2 Duo” |
2.16 20-Inch 2.16 GHz Core 2 Duo (T7400) |
September 6, 2006 |
A1207 |
EMC 2118 |
| iMac “Core 2 Duo” |
2.16 17-Inch 2.16 GHz Core 2 Duo (T7400) |
September 6, 2006 |
A1208 |
EMC 2114 |
| iMac “Core 2 Duo” |
2.0 17-Inch 2.0 GHz Core 2 Duo (T7200) |
September 6, 2006 |
A1208 |
EMC 2114 |
| iMac “Core 2 Duo” 1.83 17-Inch (IG) |
1.83 GHz Core 2 Duo (T5600) |
September 6, 2006 |
A1195 |
EMC 2124 |
| iMac “Core Duo” 1.83 17-Inch (IG) |
1.83 GHz Core Duo (T2400) |
July 5, 2006 |
A1195 |
EMC 2110 |
| iMac “Core Duo” |
2.0 20-Inch 2.0 GHz Core Duo (T2500) |
January 10, 2006 |
A1174 |
EMC 2105 |
| iMac “Core Duo” |
1.83 17-Inch 1.83 GHz Core Duo (T2400) |
January 10, 2006 |
A1173 |
EMC 2104 |
MAC Pro
| Model |
CPU |
Date |
A-Model |
EMC-Number |
| Mac Pro “Twelve Core” 2.7 (Late 2013) |
2.7 GHz 12 Core Xeon E5-2697v2 |
October 22, 2013* |
A1481 |
EMC 2630 |
| Mac Pro “Eight Core” 3.0 (Late 2013) |
3.0 GHz 8 Core Xeon E5-1680v2 |
October 22, 2013* |
A1481 |
EMC 2630 |
| Mac Pro “Six Core” 3.5 (Late 2013) |
3.5 GHz 6 Core Xeon E5-1650v2 |
October 22, 2013* |
A1481 |
EMC 2630 |
| Mac Pro “Quad Core” 3.7 (Late 2013) |
3.7 GHz Q. Core Xeon E5-1620v2 |
October 22, 2013* |
A1481 |
EMC 2630 |
| Mac Pro “Twelve Core” 3.06 (Server 2012) |
3.06 GHz 6 Core Xeon X5675 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 2.66 (Server 2012) |
2.66 GHz 6 Core Xeon X5650 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 2.4 (Server 2012) |
2.4 GHz 6 Core Xeon E5645 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Six Core” 3.33 (Server 2012) |
3.33 GHz 6 Core Xeon W3680 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Quad Core” 3.2 (Server 2012) |
3.2 GHz Q. Core Xeon W3565 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 3.06 (2012/Westmere) |
3.06 GHz 6 Core Xeon X5675 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 2.66 (2012/Westmere) |
2.66 GHz 6 Core Xeon X5650 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 2.4 (2012/Westmere) |
2.4 GHz 6 Core Xeon E5645 x2 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Six Core” 3.33 (2012/Westmere) |
3.33 GHz 6 Core Xeon W3680 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Quad Core” 3.2 (2012/Nehalem) |
3.2 GHz Q. Core Xeon W3565 |
June 11, 2012 |
A1289 |
EMC 2629 |
| Mac Pro “Twelve Core” 2.93 (Server 2010) |
2.93 GHz 6 Core Xeon X5670 x2 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Twelve Core” 2.66 (Server 2010) |
2.66 GHz 6 Core Xeon X5650 x2 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Eight Core” 2.4 (Server 2010) |
2.4 GHz Q. Core Xeon E5620 x2 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Six Core” 3.33 (Server 2010) |
3.33 GHz 6 Core Xeon W3680 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Quad Core” 3.2 (Server 2010) |
3.2 GHz Q. Core Xeon W3565 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Quad Core” 2.8 (Server 2010) |
2.8 GHz Q. Core Xeon W3530 |
November 5, 2010 |
A1289 |
EMC 2314-2 |
| Mac Pro “Twelve Core” 2.93 (2010/Westmere) |
2.93 GHz 6 Core Xeon X5670 x2 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Twelve Core” 2.66 (2010/Westmere) |
2.66 GHz 6 Core Xeon X5650 x2 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Eight Core” 2.4 (2010/Westmere) |
2.4 GHz Q. Core Xeon E5620 x2 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Six Core” 3.33 (2010/Westmere) |
3.33 GHz 6 Core Xeon W3680 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Quad Core” 3.2 (2010/Nehalem) |
3.2 GHz Q. Core Xeon W3565 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Quad Core” 2.8 (2010/Nehalem) |
2.8 GHz Q. Core Xeon W3530 |
July 27, 2010* |
A1289 |
EMC 2314-2* |
| Mac Pro “Eight Core” 2.93 (2009/Nehalem) |
2.93 GHz Q. Core Xeon X5570 x2 |
March 3, 2009 |
A1289 |
EMC 2314 |
| Mac Pro “Eight Core” 2.66 (2009/Nehalem) |
2.66 GHz Q. Core Xeon X5550 x2 |
March 3, 2009 |
A1289 |
EMC 2314 |
| Mac Pro “Eight Core” 2.26 (2009/Nehalem) |
2.26 GHz Q. Core Xeon E5520 x2 |
March 3, 2009 |
A1289 |
EMC 2314 |
| Mac Pro “Quad Core” 3.33 (2009/Nehalem) |
3.33 GHz Q. Core Xeon W3580 |
December 4, 2009* |
A1289 |
EMC 2314 |
| Mac Pro “Quad Core” 2.93 (2009/Nehalem) |
2.93 GHz Q. Core Xeon W3540 |
March 3, 2009 |
A1289 |
EMC 2314 |
| Mac Pro “Quad Core” 2.66 (2009/Nehalem) |
2.66 GHz Q. Core Xeon W3520 |
March 3, 2009 |
A1289 |
EMC 2314 |
| Mac Pro “Eight Core” 3.2 (2008) |
3.2 GHz Q. Core Xeon X5482 x2 |
January 8, 2008 |
A1186 |
EMC 2180 |
| Mac Pro “Eight Core” 3.0 (2008) |
3.0 GHz Q. Core Xeon E5472 x2 |
January 8, 2008 |
A1186 |
EMC 2180 |
| Mac Pro “Eight Core” 2.8 (2008) |
2.8 GHz Q. Core Xeon E5462 x2 |
January 8, 2008 |
A1186 |
EMC 2180 |
| Mac Pro “Quad Core” 2.8 (2008) |
2.8 GHz Q. Core Xeon E5462 |
January 8, 2008 |
A1186 |
EMC 2180 |
| Mac Pro “Eight Core” 3.0 (2,1) |
3.0 GHz Q. Core Xeon X5365 x2 |
April 4, 2007* |
A1186 |
EMC 2138 |
| Mac Pro “Quad Core” 3.0 (Original) |
3.0 GHz D. Core Xeon 5160 x2 |
August 7, 2006* |
A1186 |
EMC 2113 |
| Mac Pro “Quad Core” 2.66 (Original) |
2.66 GHz D. Core Xeon 5150 x2 |
August 7, 2006* |
A1186 |
EMC 2113 |
| Mac Pro “Quad Core” 2.0 (Original) |
2.0 GHz D. Core Xeon 5130 x2 |
August 7, 2006* |
A1186 |
EMC 2113 |
|
Package content
- 1 x ISP SPI adapter for HD Box
- 1 X Flat cable with a clip
- 1 x Flex cable
- 3 x Connecting adapter
|
|
|
|
|
|
|
Customers who bought this product also bought :
|
|
|
|
|
|
|
|
|
