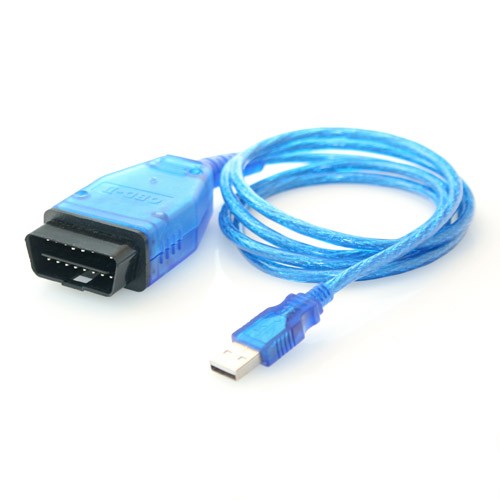

KKL USB INTERFACE FOR VAG-COM 409.1 | |
|
|
| Functions of the KKL PRO interface |
This diagnostic cable can be used for ISO-9141 and KWP-2000 transmission protocol used by
Volkswagen, Audi, Skoda, Seat etc.
K = Communication Line (A bidirectional halfduplex communication line).
L = Ignition Line for waking up the ECU (Engine Control Unit).
|
Specifications |
- Heavy & robust casing for rough service use
- Connects to PC via USB port
- Working with ISO 9141 / KWP 2000 protocols
- Cable is based on certified ISO 9141 Bus Transceivers
- Bi-color led for each K-line which shows the current logic status
|
Features |
- Fully automatic support for 2002+ Audi models with dual K-lines
- Precision-molded diagnostic connector made to fit all VW/Audi vehicles, even those
with "tight" trim around diagnostic socket
- Built-in, Electronic Protection from the "Aftermarket Radio Problem"
- Fully compatible with the diagnostic software version 409.1 from VAG-COM. VAG-COM is a freeware software program that turns your PC into a sophisticated Volkswagen / Audi diagnostic tool, which performs the functions of a factory VAG-1551 or VAG-1552 scan tool and more
|
VAG-COM &Interface functions |
- Fully compatible with all VW, Audi, Seat and Skoda models through 2005, including models using a direct CAN connection for diagnostics
- Has a database of more than 7500 fault-codes and measuring-block texts
- Can use the new 7-Digit PIN/SKC codes to match new keys in all immobilizer equipped VW, Audi, Seat, Skoda models
- Allows you to view, log, and graph 3 groups of Measuring Blocks at once
- Can access all control modules which require proprietary VAG modes running the new KWP-2000 protocols (2001+ Teves Mk.60 ABS, numerous 2002+ modules)
- Can display critical timing information on TDI engines in graphic form
- Read / Clear Fault Codes:
Fuel pressure sensor, Accelerator position sensor, Fuel pressure regulator valve, Manifold pressure / Boost sensor, Air conditioning clutch relay circuit open or shorted, etc
- Log and measure engine characteristics:
Engine speed, Engine load, Idle speed, Throttle angle, Ignition time, Coolant temperature, Injection time, Mass air flow,
- Perform tests:
Motor for intake manifold flap, Switch-over valve for exhaust gas recirculation cooling, Control circuit for cooling fan, Glow plug indicator light, glow plug control module, Airbag controller, ABS brake system, etc
- Advanced ID
- Decode Readiness Code
|
Package content |
|
|
|
|
|
|
|
|
|
|
|
|
|
