MEDUSA PRO JIG 20 PIN SOLDERING ADAPTER | |
|
|
MEDUSA PRO BOX /W EMMC SUPPORT & JTAG PIN FINDER
|
Medusa PRO Box is a professional phone flashing and mobile unlocking tool that lets you work with a wide range of Samsung, Huawei, LG, Motorola, Siemens, Sony Ericsson, Vodafone, ZTE and other mobile devices through JTAG, USB and MMC interfaces.
|
|
|
ZXW TOOLS DONGLE SCHEMATICS SOFTWARE FOR HELP /W BGA REWORK
|
ZXW Dongle with software gives access to diagrams for different devices, such as iPhone, iPad, Nokia, LG, Samsung, BlackBerry, Sony, Sony Ericsson, Motorola, HTC. Zillion x Work (ZXW) dongle is an indispensable device in your mobile phone’s circuit board repair business.
|
|
|
23PCS MOORC JPIN JTAG EASY PIN FLEX CABLE + ADAPTERS FOR RIFF Z3X-PRO
|
Jpin Jtag was specially designed by Moorc for JTAG boxes such as RIFF, Easy JTAG, Medusa, etc. It helps connect your JTAG box to Samsung/LG/Nokia phone without soldering using jpin flex cables.
|
|
|
MOORC E-MATE BOX PRO EMMC TOOL 2017
|
MOORC E-Mate Pro EMMC Tool allows you to read and write directly from/to eMMC chips. It is compatible with a number of EMMC tools: Riff v2, Z3x easy JTAG, Medusa, GPG EMMC box
|
|
|
UNIVERSAL JTAG CABLE WITH LABELED WIRES (RIFF, EASY JTAG, GPG JTAG PRO)
|
JTAG cable compatible with labeled wires for easy connecting JTAG box to PCB. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc
|
|
|
JTAG JIG FLAT RIBBON CABLE (RIFF, EASY JTAG, GPG JTAG PRO)
|
JTAG cable for easy connecting JTAG box to JIGs. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc
|
|
|
HELPING HAND MAGNIFIER /W LED LIGHT & SOLDERING STAND
|
This magnifying tool gives you 2 LED lights and an extra hand for precision soldering, jewelry, crafts projects or any other detailed work where magnification, a steady hold and extra hands are needed.
|
|
|
PORTABLE VARIABLE TEMPERATURE HOT AIR GUN / HEAT GUN
|
This is an economical, multi-purpose 110-240 Volt AC/DC heat gun with helical wind.
This hot air gun has a portable design and made for servicing electronic products. Controlled by a central processor its temperature and airflow can be adjusted according to your needs.
|
|
|
6 PCS SOLDERING AID KIT W/ REAMER, BRUSH, PROBE
|
Super useful double-ended tool set for soldering or de-soldering clean-up and preparation tasks. Made of non-magnetic steel with smooth hex shaped plastic handles, 7" overall length.
|
|
|
BLACK SOLDER WICK
|
|
SOLDER WIRE STAND
|
Tabletop holder for soldering wire
|
|
|
|
|

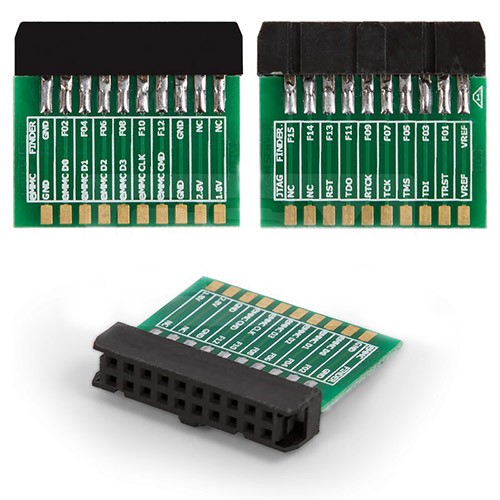

Description of Medusa pro JIG adapter
Medusa Pro 20 Pin adapter is intended to be used with Medusa Pro Box. Its pins are marked in accordance with Medusa Pro Box pinout.
This adapter has marked pinouts for JTAG and MMC interfaces, so you can easily find a required pin without checking the software. The adapter has external pads, so you can solder a wire of a required thickness. You can buy this adapter if you need few adapters with different pinouts or you just want to replace the one that has been included in Medusa Pro Box package.
|
Medusa pro adapter pinout
- JTAG top side
- Pin1 VREF
- Pin3 TRST
- Pin5 TDI
- Pin7 TMS
- Pin9 TCK
- Pin11 RTCK
- Pin13 TD0
- Pin15 Reset
- Pin17 NC
- Pin19 NC
- eMMC bottom side:
- Pin2 GND
- Pin4 EMMc D0
- Pin6 EMMc D1
- Pin8 EMMc D2
- Pin10 EMMc D3
- Pin12 EMMC CLK
- Pin14 EMMC CMD
- Pin16 GND
- Pin18 2.8V
|
|
|
|
|
|
|
