Features of MiPi NB-MAX
- UFS / UMCP / ISP - Data transfer speed
- UFS / UMCP
- Support for UFS 2.0 / 2.1 / 3.0 / 3.1
- HS-G2 high speed mode
- 80-130 MB/s (writing) / 100-180 MB/s (reading)
- USB 3.0 + high speed SSD is required for speeds over 100 MB/s
- UFS ISP
- Flying Line Mode PWM-G1 6-15MB/s (reading / writing)
- EMMC / EMCP - Data transfer speed
- UFS / UMCP
- EMMC ISP 5-15MB/s (read / write)
- Support for EMMC 4.5 / 5.0 / 5.1
- HS200 80-120MB/s (write) / 120MB/s (read)
- Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash
- UFS / UMCP
- Read / Write / Specify boot area
- LUN cutting
- Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
- Read / Write EMMC/EMCP User Area and BOOT1/2
- Read / Write advanced RPMB, GPP
- Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection
|
Supported BGA
|

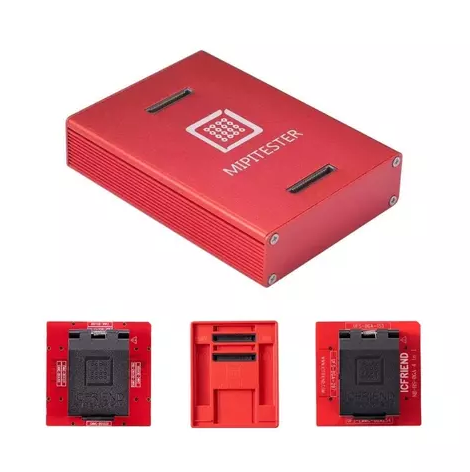

Package content

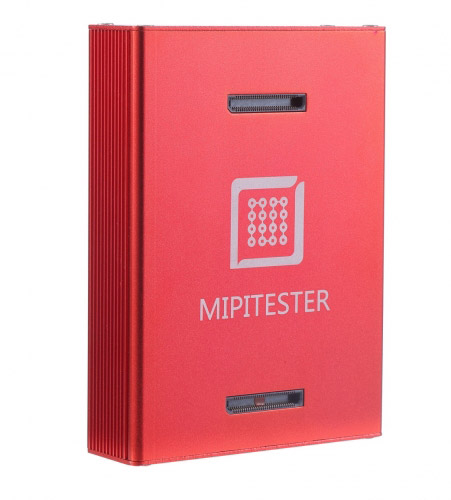

- 1x MiPi Tester

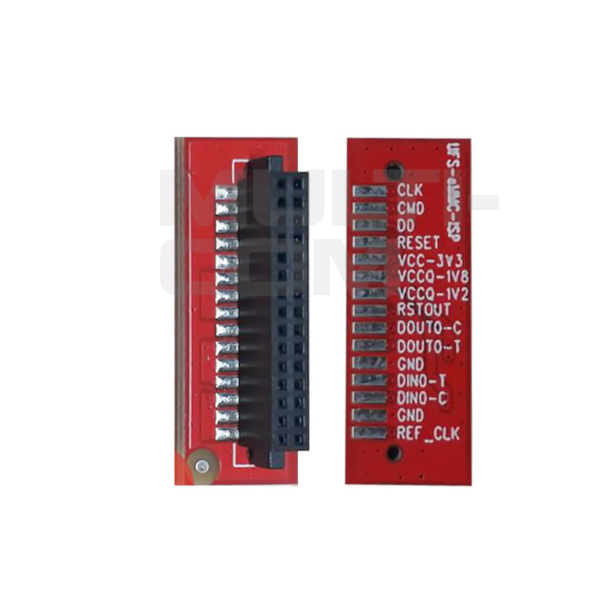

- 1x MiPi ISP Adapter

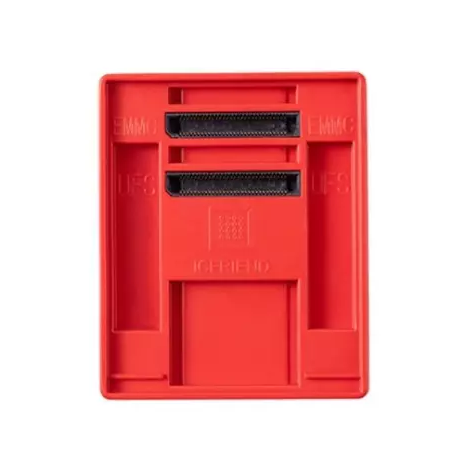

- 1x EMMC UFS P1 Adapter

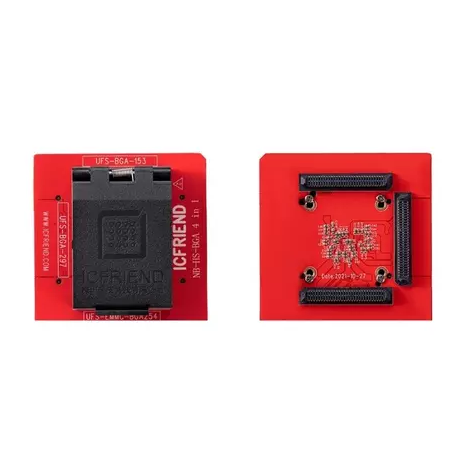

- 1x NB-HS-BGA 4 in 1 set:
- UFS-BGA-297
- UFS-eMMC-BGA254
- UFS-153
- 1x MiPi USB 3.0 Cable
- 1x MiPi DC5V Power Cable

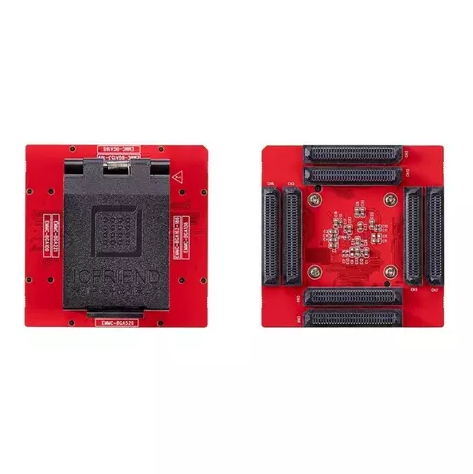

- 1x NB-EMMC-BGA 13 in 1 set:
- eMMC-BGA221
- eMMC-BGA529
- eMMC-BGA162-186
- eMMC-BGA136
- eMMC-BGA168
- eMMC-BGA153
- eMMC-BGA169
- eMMC-BGA100
- eMCP-BGA254
- eMCP-BGA186
- eMCP-BGA136
- eMCP-BGA529
- eMCP-BGA168
|
|
|
|
|
