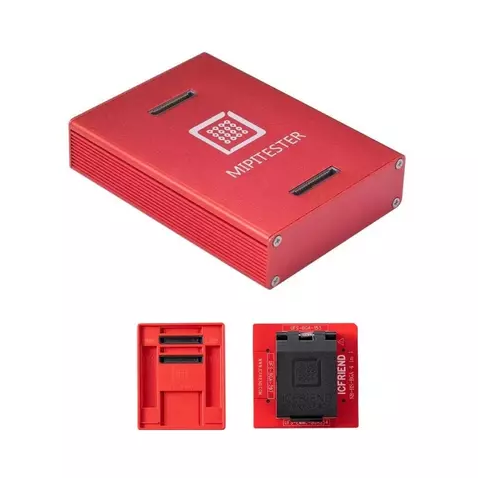

MiPi NB-PRO box + MiPiTESTER chip programmer | |
|
|
Z3X EASY JTAG PLUS [ LITE VERSION ]
Easy JTAG is a comprehensive tool designed to address a wide array of issues encountered in mobile devices, focusing on repair, maintenance, and data recovery. This solution involves both software and hardware components, offering a robust set of features to assist in resolving diverse...
|
|
|
Z3X EASY JTAG PLUS [ FULL VERSION ] + BGA254 + BGA153 + EMMC SOCKET
This Upgraded Easy Jtag PLUS features ultra fast data transfer, supports UFS, eMMC, MCP, NAND, Apple PPN NAND, JTAG Connection and SPI Chips. Lightweight software is made especially for mobile phones repair, eMMC memory chips replacement and user data recovery.
Full version...
|
|
|
ICFRIENDS ISP eMMC/UFS ADAPTER
ICFRIEND ISP eMMC/UFS Adapter - This adapter will expand possibilities of your ICFRIEND EMMC / UFS set. The contacts are marked for direct soldering to the device using ISP or soldering directly to the memory, connecting to eMMC and UFS memory not using sockets.
|
|
|
MEDUSA PRO BOX /W EMMC SUPPORT & JTAG PIN FINDER
Medusa PRO Box is a professional phone flashing and mobile unlocking tool that lets you work with a wide range of Samsung, Huawei, LG, Motorola, Siemens, Sony Ericsson, Vodafone, ZTE and other mobile devices through JTAG, USB and MMC interfaces.
|
|
|
|
|
Features of MiPi NB-Pro
- UFS / UMCP / ISP - Data transfer speed
- UFS / UMCP
- Support for UFS 2.0 / 2.1 / 3.0 / 3.1
- HS-G2 high speed mode
- 80-130 MB/s (writing) / 100-180 MB/s (reading)
- USB 3.0 + high speed SSD is required for speeds over 100 MB/s
- UFS ISP
- Flying Line Mode PWM-G1 6-15MB/s (reading / writing)
- EMMC / EMCP - Data transfer speed
- UFS / UMCP
- EMMC ISP 5-15MB/s (read / write)
- Support for EMMC 4.5 / 5.0 / 5.1
- HS200 80-120MB/s (write) / 120MB/s (read)
- Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash
- UFS / UMCP
- Read / Write / Specify boot area
- LUN cutting
- Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
- Read / Write EMMC/EMCP User Area and BOOT1/2
- Read / Write advanced RPMB, GPP
- Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection
|
Supported BGA
|
Package content
- 1x MiPi Tester
- 1x MiPi ISP Adapter
- 1x EMMC UFS P1 Adapter
- 1x NB-HS-BGA 4 in 1 set:
- UFS-BGA-297
- UFS-eMMC-BGA254
- UFS-153
- 1x MiPi USB 3.0 Cable
- 1x MiPi DC5V Power Cable
|
|
|
|
|
|
|
|
|
|
|
|
