JTAG JIG FLAT RIBBON CABLE (RIFF, EASY JTAG, GPG JTAG PRO)
|
JTAG cable for easy connecting JTAG box to JIGs. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc
|
|
|
PROBE & POWER CABLE (SIGNAL FINDER) FOR RIFF JTAG BOX / OCTOPLUS / Z3X PRO
|
The Probe Cable for Riff Box has dual purpose: probe needle is used to find JTAG signals on unknown phone boards, the second purpose is to power the target board without an external power supply. JTAG cable has labeled wires for easily connecting JTAG box to PCB. Compatible with RIFF...
|
|
![Z3X EASY JTAG PLUS [ LITE VERSION ]](https://www.cellcorner.com/xshp/storedimages/thumbs/t_32538.jpg "Z3X EASY JTAG PLUS [ LITE...")
|
Z3X EASY JTAG PLUS [ LITE VERSION ]
|
Easy JTAG is a comprehensive tool designed to address a wide array of issues encountered in mobile devices, focusing on repair, maintenance, and data recovery. This solution involves both software and hardware components, offering a robust set of features to assist in resolving diverse...
|
|
|
|
Z3X EASY JTAG PLUS [ FULL VERSION ] + BGA254 + BGA153 + EMMC SOCKET
This Upgraded Easy Jtag PLUS features ultra fast data transfer, supports UFS, eMMC, MCP, NAND, Apple PPN NAND, JTAG Connection and SPI Chips. Lightweight software is made especially for mobile phones repair, eMMC memory chips replacement and user data recovery.
Full version...
|
|
|
|
 |
Features of MiPi Pro
- UFS / UMCP / ISP - Data transfer speed
- UFS / UMCP
- Support for UFS 2.0 / 2.1 / 3.0 / 3.1
- HS-G2 high speed mode
- 80-130 MB/s (writing) / 100-180 MB/s (reading)
- USB 3.0 + high speed SSD is required for speeds over 100 MB/s
- UFS ISP
- Flying Line Mode PWM-G1 6-15MB/s (reading / writing)
- EMMC / EMCP - Data transfer speed
- UFS / UMCP
- EMMC ISP 5-15MB/s (read / write)
- Support for EMMC 4.5 / 5.0 / 5.1
- HS200 80-120MB/s (write) / 120MB/s (read)
- Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash
- UFS / UMCP
- Read / Write / Specify boot area
- LUN cutting
- Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
- Read / Write EMMC/EMCP User Area and BOOT1/2
- Read / Write advanced RPMB, GPP
- Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection
|
Supported BGA
|
icFriend MOORC Adapter set - Package content
- 1x MiPi Box Pro
- 1x MiPi eMMC / UFS ISP Adapter
- 1x MiPi UFS 254 / 153 Socket Adapter
- 1x MiPi USB 3.0 Cable
- 1x MiPi DC5V Power Cable
- Frames:
- 1x 7,5*9
- 1x 11*10
- 1x 11.5*13
- 1x 12*15
- 1x 12*16

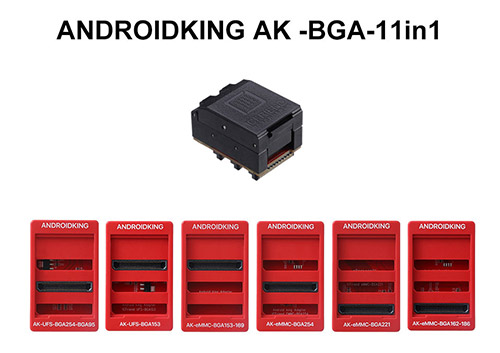

- 1x MiPi ANDROIDKING eMMC/UFS Socket Adapter - 11 in 1 set
- 1x AK-UFS BGA 254
- 1x AK-UFS BGA 153
- 1x AK-eMMC BGA 153-169
- 1x AK-eMMC BGA 254
- 1x AK-eMMC BGA 221
- 1x AK-eMMC BGA 162-186
|
|
|
|
|
