Functions of the ODB 2 interface and TachPro dongle |
 |
This compact interface will allow you to easily read / write / modify the mileage/km on your car without the need to remove the dash. It connects to the on-board diagnostics port located in your car.
|
Supported Models |
|
|
AUDI
| AUDI A3 A4 A6 new VDO
AUDI A4 old VDO without FIS
AUDI A4 old VDO with FIS
AUDI A6 old VDO
AUDI A8 VDO before 10/96
AUDI A8 VDO after 11/96
AUDI TT | BMW
| BMW E36
BMW E38/E39 High-Level up to SW15
BMW E38/E39 low-Level up to SW15
BMW E38, E39 High-Level Model 99 | FORD
| FORD GALAXY | MERCEDES
| MERCEDES W140, W129 up to 6/96 by combi-connector
MERCEDES A-class by diagnostic-connector
MERCEDES M-class by diagnostic-connector
MERCEDES Sprinter, V-Klasse by combi-connector | SEAT
| SEAT Alhambra
SEAT Alhambra Arosa | VOLKSWAGEN
| VW Golf 4 1997-2000 with VDO Tacho
VW Golf 4 after 12/1999 with Motometer Tacho
VW Golf 4 2000-2001 with VDO Tacho
VW Golf 4 2001 with VDO Tacho
VW Sharan after 12/1999
VW Passat 1997-2000 with VDO-Tacho
VW T4 1997-2000 with VDO-Tacho
VW T4 2000-2001 with VDO-Tacho
VW T4 2001 with VDO-Tacho
VW Passat 2000-2001A with VDO-Tacho
VW Passat after 12/1999 with Magnet Marelli Tacho
VW Passat after 12/1999 with Motometer Tacho
VW Passat 2001 with VDO Tacho
VW New Beetle after 12/1999 with Magnet Marelli Tacho
VW Golf 3 with VDO Tacho by combi-connector
VW Polo with Motometer Tacho by combi-connector
VW Passat 1.4 with Motometer Tacho by combi-connector
VW Golf SW 4.1-6.2 (not SW 3.1) with Motometer Tacho by combi-connector
VW Passat 96 with Motometer Tacho by combi-connector
VW T4 with Motometer Tacho by combi-connector | SKODA
| SKODA Oktavia |
|
This tool is used daily by engineers all over the world and is very effective. |
Specifications |
|
- Interface is based on certified ISO9141 Bus Transceivers and RS232 level shifters
- K-Line & L-Line (K/L Interface)
- Bi-Colour status LED`s for K-Line & L-Line
- Power LED
- Powered from car battery over service cable
- Service cables for BMW, Mercedes Benz and Volkswagen included
- Comfortable service cable length of 2,00 metres
- This compact interface will allow you to easily read/write/modify the mileage/km onyour car without the need to remove the dash. It connects to the on-board diagnostics portlocated in your car.
|
Works with the following Software |
|
|

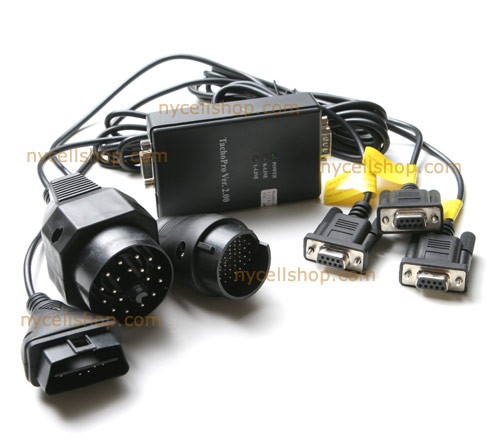

Package content |
|
- Interface Tachopro version V2.00
- Serial Cable RS232.
- SAE Cable J1962 to DB9.
- BMW Cable 20 pin to DB9.
- Mercedes Cable 38 pin a DB9.
- Free TachoPro Software. Software is inlcuded for free, we don't provide tech support for it. The software is in german, but is easy to use. A laptop or PC is required, note that the supplied software works only under plain DOS (not windows or DOS shell) and might not work on CPUs over 233 MHZ.
|
How it works |
|
OBD2 ISO9141 Interface works with a number of software tools availalble such as VAGeeprom, VAG-COM, VAGtool, VW/AUDI tool etc.
Scantool, scanmaster, digimoto are using other interface based on ELM interpreter chip and are not compatible with this tool.
Software demo working steps:
TachoPro |
