    HOT AIR SOLDERING 3 IN 1 SMD REWORK STATION YIHUA 853D USB 2A



This multifunction SMD rework station can cope with all the requirements of soldering. Its 2 in 1 design combines 1 temperature controlled soldering iron and 1 hot air gun with adjustable air pressure and air temperature. Each part can be operated independently. New unlock product in stock

Details

Weight:14.20 lbs
Price: US$248.90
Shipping: Add to cart to determine shipping fee

Options

Quantity:
Discounts:

Qty   2+
Price US$199.80


Add this item to the shopping cart

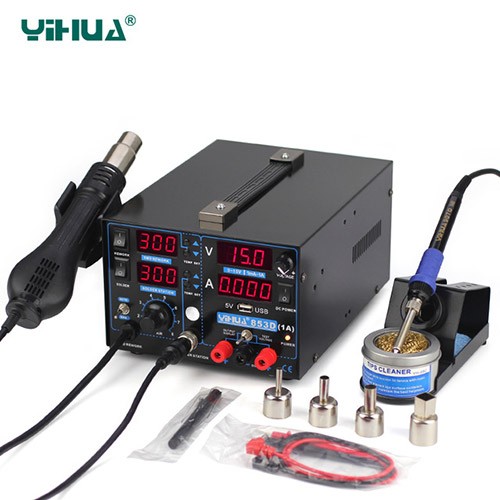

YIHUA 853D SMD rework station



Description of YIHUA 853D soldering Station


  • Rated voltage AC 220V±10% 50HZ ( 110V±10% 50HZ)
  • Total Power 700W+50W+15W=765W±10%(max)
  • Work environment 0-50°C
  • Iron parts Gun parts DC Power Supply parts
  • Work Voltage AC 26V±10% 50HZ Work Voltage AC 220V±10% 50HZ( 110V±10% 50HZ) Work Voltage AC 20V±10% 50HZ ( 110V±10% 50HZ)
  • Output power 50W±10% Output power 700W±10% Output power 15W/30W/45W
  • Temperature range 200°C-480°C Temperature range 100°C-480°C Output voltage 0-15V
  • Output current 1A/2A/3A
  • Load stability <0.01±2mv
  • Temperature stability±2°C Temperature stability ±2°C
  • Tip of ground impedance<2ohm recovery time <100us
  • Tip of ground voltage<2mV
  • Ripple dB<1mvrms (virtual value)
  • Temperature coefficient:<300PPm / °C
  • Protection starting current >standard value 10%



Features of YIHUA 853D


  • Accurate temperature control & 2 LED displays to show precise temperature.
  • One LED display to show mobile RF signal and testing voltage.
  • Automatic cooling function and extremely low noise.
  • ESD safe design - keeps mild electronic components from electrostatic harm.
  • Long life - 30000 hours brushless fan & high-precision DC power supply.
  • Multi-functional - comes with 11 tips and 4 stainless steel nozzles; hot air machine, soldering iron & power supply can work separately or simultaneously.
  • PID technology - quick heat up, speedy temperature recovery and stable temperature.
  • PID microcomputer control – protects against over temperature, short circuit, open circuit.
  • Safe - security protection & intelligent self-error detection.
  • Sensor in hot air machine - functions when handle is being hold up while turning into standby mode when rested on rack.
  • Suitable for laboratories, universities and communication tools repair and RF signal test.



Package content


  • 1 x Soldering Station
  • 1 x Soldering Iron Stand
  • 1 x Soldering Iron
  • 11 x Soldering Iron Tips
  • 1 x Holder
  • 1 x Hot Air Machine
  • 4 x Nozzles
  • 1 x Cable
  • 1 x Solder Wick
  • 1 x User Manual
