Server credits for Riff box, License activation, PKG License Activation, eMMC Support Activation, Clone Activation
|
 |
|
|
|
|
|
|
|
|
|
|
|
EMMC SUPPORT ACTIVATION FOR RIFF BOX
|
eMMC Support Activation for RIFF Box allows you to use JTAG Manager v1.58 software with ISP/Direct eMMC support. eMMC support activation is free for all new unregistered RIFF Boxes.
|
|
|
RIFF BOX VER. 2 REPAIR TOOL (WITH SUPPORT FOR EMMC, JTAG, i2C, SPi, i2C)
There is no other device with so many complex functions supported.
Riff Box ver.2 suits most of regular user needs, although it is aimed at advanced developers who need to debug their own embedded code or reverse someone else's.
Unique scripting support, GDB Server for...
|
|
|
UNIVERSAL JTAG CABLE WITH LABELED WIRES (RIFF, EASY JTAG, GPG JTAG PRO)
|
JTAG cable compatible with labeled wires for easy connecting JTAG box to PCB. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc
|
|
|
MOORC JTAG eMMC - ISP ADAPTER FOR OCTOPLUS / ATF / RIFF / EasyJTAG / MEDUSA
|
eMMC JTAG-ISP set of adapters allows direct programming (BGA162 / 186, BGA221, BGA153 / 169) with your ATF, ATF Lightning, ATF Nitro, Octoplus, Medusa, Riff, GPGeMMC, Z3x Easy JTAG, ORT boxes
|
|
|
35PCS MOORC JPIN JTAG EASY PIN FLEX CABLE + ADAPTERS FOR RIFF Z3X-PRO
|
Jpin Jtags were specially designed by Moorc for JTAG boxes such as RIFF, Easy JTAG, Medusa, etc. It helps connect your JTAG box to Samsung, ASUS, LG phone without soldering using jpin flex cables.
|
|
|
|
|
Description
RIFF Box Server Credits to purchase the following activations:
- eMMC Support Activation
- Clone Activation
- PKG License Activation
RIFF Box Server Credits allow you to:
- Update RIFF Box firmware for a period of 1 year
- Access RIFF download servers for a period of 1 year
- Receive support on RIFF forums

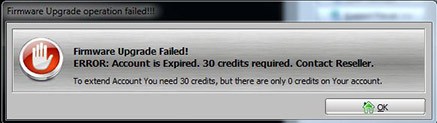

Note: For RIFF Box with "Account Expired" message from server, activations are required and they are not free.
|
RIFF Box Server Credits - Activation's Packages:
- eMMC Support Activation - 30 credits
Allows you to use “JTAG Manager v1.58” software with ISP/Direct eMMC support.
Riff box upgrade is required
- Clone Activation - 60 credits
Converts your clone box into an authentic RIFF Box.
- PKG license - 30 credits
This is a permanent activation that allows you to create repair packages (PKG files) and sell them to other users. Please note that a valid license for RIFF Box and 1.58 or higher version is required to use this option. The activation enables access to RIFF download server and ensures support on RIFF forums.
|
JTAG Manager v1.58 with ISP/Direct eMMC support.
To use it, please prepare your RIFF Box installation folder:
- Rename JTAG Manager v1.56, so you can continue using it if your account is expired.
- Backup "Useful plugins" folder content because old plugins are incompatible with new Exe, and old exe is incompatible with new plugins.
- Start v1.58 exe and download license (if your account is not expired)
- Update Box firmware to v1.38
- Download new plugins.
|
RIFF Box - Upgrade Procedure
This is an initial guide for RIFF Box eMMC ISP/Direct functionality. This is not regular update, but rather a major upgrade.
As such, it will come free for all RIFF Boxes registered in the last 6 months (180 days), and of course for all new RIFF Box customers.
To prepare everything on your side for this upgrade, you will need the following:

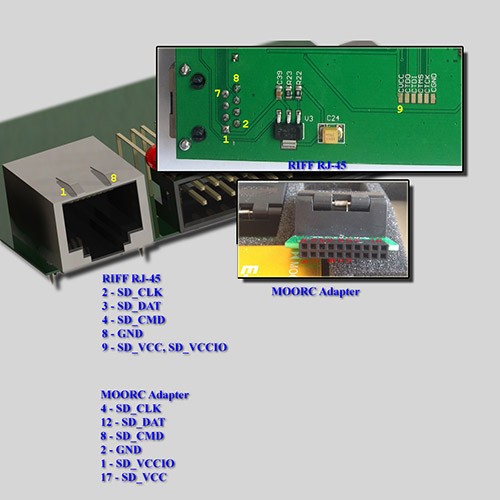

- RJ45 cable (required to connect RIFF Box to eMMC, as RIFF Box RJ45 port is used for this function)
- 2 x 100 ohms resistors (to increase signal levels and improve stability)
- External source for VCC and VCCQ (optional, in case that you don't want to open your RIFF )
- Moorc adapters (optional)
- Activation credits (if your box is older than 6 months)
|
|
|
|
|
|
|
