MOORC E-MATE PRO EMMC TOOL V2 | |
|
|
JTAG JIG FLAT RIBBON CABLE (RIFF, EASY JTAG, GPG JTAG PRO)
|
JTAG cable for easy connecting JTAG box to JIGs. Compatible with RIFF box, Omnia Repair Tool, GPG JTAG Pro, Z3X Easy Jtag, etc
|
|
|
PROBE & POWER CABLE (SIGNAL FINDER) FOR RIFF JTAG BOX / OCTOPLUS / Z3X PRO
|
The Probe Cable for Riff Box has dual purpose: probe needle is used to find JTAG signals on unknown phone boards, the second purpose is to power the target board without an external power supply. JTAG cable has labeled wires for easily connecting JTAG box to PCB. Compatible with RIFF...
|
|
![Z3X EASY JTAG PLUS [ LITE VERSION ]](https://www.cellcorner.com/xshp/storedimages/thumbs/t_32538.jpg "Z3X EASY JTAG PLUS [ LITE...")
|
Z3X EASY JTAG PLUS [ LITE VERSION ]
|
Easy JTAG is a comprehensive tool designed to address a wide array of issues encountered in mobile devices, focusing on repair, maintenance, and data recovery. This solution involves both software and hardware components, offering a robust set of features to assist in resolving diverse...
|
|
|
|
|
Features of E-MATE Pro2 tool
- E-mate High speed programming for EMMC 4G-64G
- EMMC version 4.41 READ:25.3MB/S WRITE:19.6MB/S
- EMMC version 4.5 READ:25.9MB/S WRITE:30.2MB/S
- Support Qualcomm phone emmc chip4GB 8GB 16GB 32GB 64GB 128GB read and write
- Support EMMC chip rom1 (user=data=rom1) area read and write
- Qualcomm only need to write rom1
- Samsung CPU phone need to write the boot, please use EasyJtag or ATF box

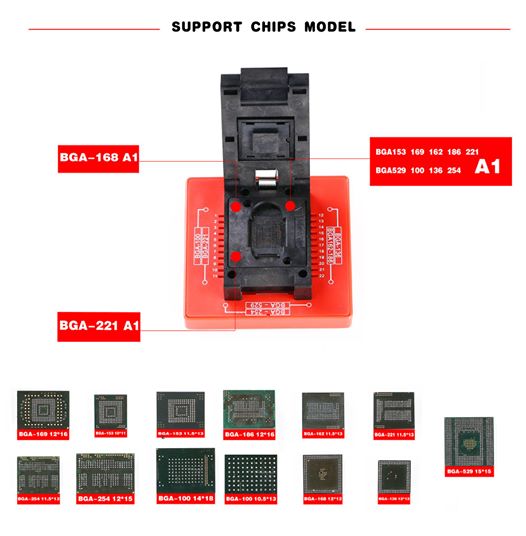

- Compatible EMMC:
- BGA100
- BGA136
- BGA153
- BGA162
- BGA168
- BGA169
- BGA186
- BGA221
- BGA254
- BGA529
|
E-MATE Pro v2 EMMC Tool Compatibility
|

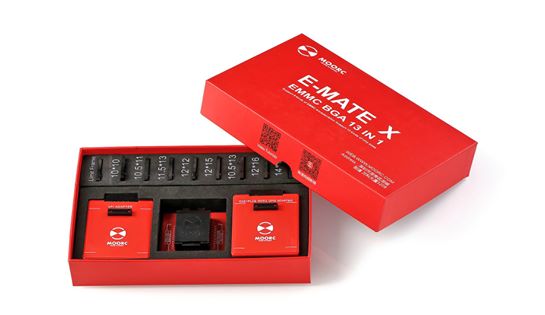

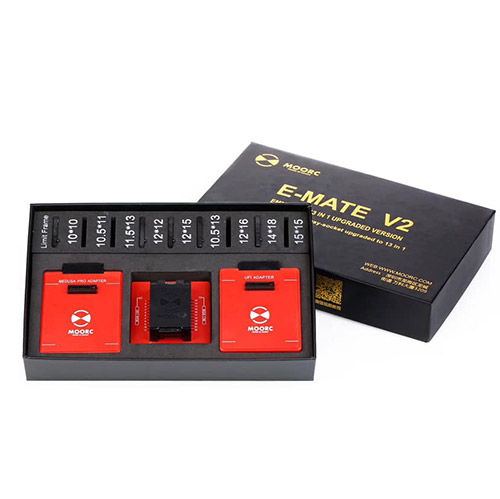

Package content
- 1 x Main adapter
- 1 x E-mate v2 6 in 1 U-socket adapter
- 1 x E-mate v1 7 in 1 U-socket adapter (PCB only)

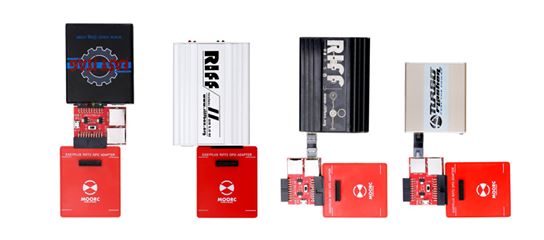

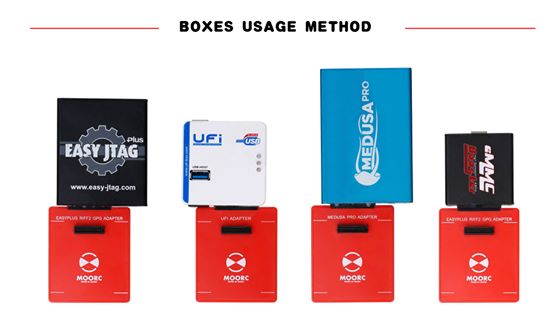

- 1 x U-socket adapter for Z3X Easy Jtag Plus, RIFF2, GPG EMMC, EMMC Pro
- 1 x U-socket adapter for Medusa pro
- 1 x U-socket adapter for UFI

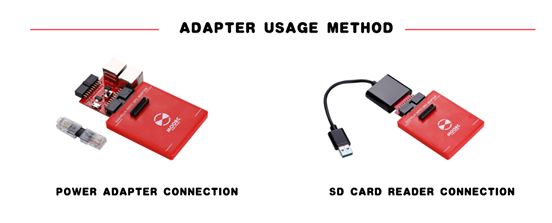

- 1 x Old 20 pin and RJ50l adapter (ATF, Riff, Easy Jtag)
- 1 x RJ45 Two-way cable

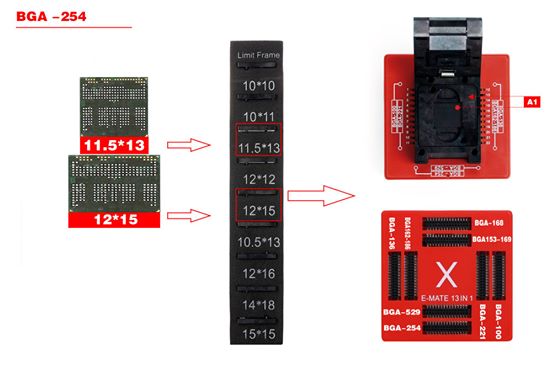

- Flash memory magnetic adapter
- 10 × 10
- 10.5 × 13
- 11.5 × 13
- 12 × 12
- 12 × 15
- 14 × 18
|
|
|
|
|
|
|
|
|
|
|
|
|
